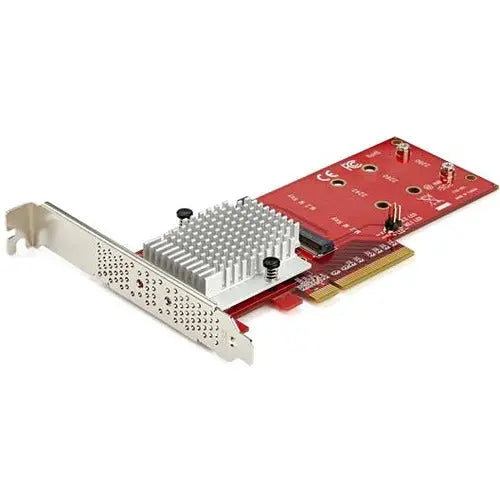

StarTech.com PEX8M2E2 Dual M.2 PCIe SSD Adapter – Support for NVMe & AHCI Drives in PCIe x8 Slot

StarTech Dual M.2 PCIe SSD Adapter Card, x8 / x16 Dual NVMe or AHCI M.2 SSD to PCI Express 3.0, M.2 NGFF PCIe (m-key) Compatible, TAA

Enhance your workstation or server with the StarTech.com PEX8M2E2 dual M.2 PCIe SSD adapter, designed for high-performance data storage and rapid transfer speeds. This versatile expansion card allows you to install two PCIe M.2 SSDs, including NVMe and AHCI types, into a single PCIe x8 or larger slot, significantly boosting your system's storage capacity and overall performance. Whether upgrading an existing setup or building a new high-speed storage array, this adapter provides a reliable solution for demanding applications. Its support for PCIe 3.0 SSDs ensures maximum read/write speeds of up to 3GB/s, which is ideal for data-intensive tasks such as video editing, virtualization, and large-scale data processing. The device's compatibility with PCIe 1.0, 2.0, and 3.0 motherboards, along with backward compatibility, makes it suitable for a wide range of systems, including legacy hardware. Installing two drives simultaneously, users can leverage software RAID options—such as RAID 0, RAID 1, JBOD, or spanning—to optimize redundancy or increase throughput. The adapter employs a high-speed ASM2824 switch, facilitating independent or combined access to each SSD without requiring PCIe bifurcation, simplifying integration into diverse system configurations. Featuring vented full-profile and low-profile brackets, the adapter ensures effective airflow to prevent overheating and maintain drive reliability. The included installation accessories, such as standoffs and screws, support easy setup in various chassis types, including compact form factors. Backed by a two-year warranty and comprehensive technical support, the PEX8M2E2 is an excellent choice for professionals seeking a scalable, high-performance storage solution that seamlessly integrates with multiple operating systems including Windows, Linux, and macOS. Certified under the EU RoHS and WEEE directives, it combines environmental responsibility with top-tier functionality, making it a dependable upgrade for enterprise and enthusiast builds alike.

Features:

• Vented dual-profile brackets: Pre-installed full profile with low-profile bracket and vented design for enhanced cooling and reliability.

• Software RAID functionality: Supports RAID 0, 1, JBOD, and spanning, allowing flexible storage configurations through OS or third-party software.

• Backward compatibility: Compatible with PCIe 1.0, 2.0, and 3.0 motherboards; no PCIe bifurcation needed; works with Windows, Linux, and macOS.

• Wide SSD compatibility: Supports PCIe 3.0 NVMe and AHCI M.2 SSDs including 2242, 2260, and 2280 sizes from brands like Samsung 970 Evo, 950 Pro, and SM951.

• High performance: Facilitates installation of two PCIe 3.0 M.2 SSDs delivering read/write speeds up to 3GB/s per drive, with optimized performance in enterprise environments.
