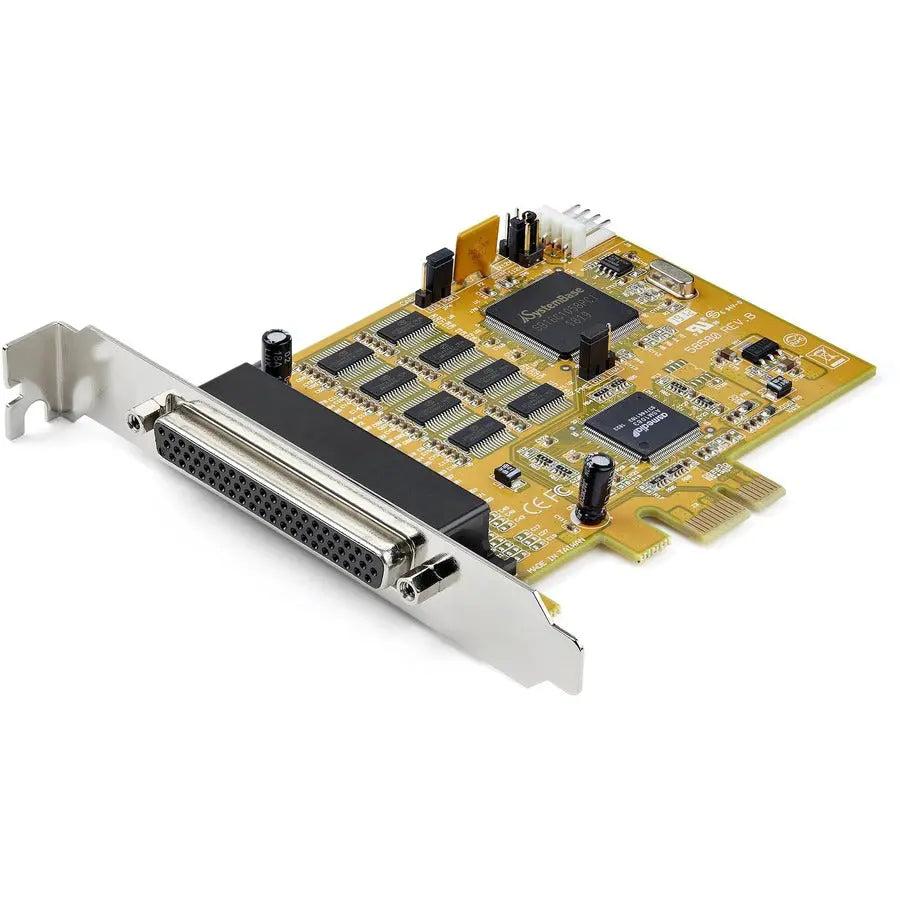

StarTech.com PEX8S1050 8-Port PCIe RS232 Serial Adapter Card for Windows

StarTech 8-Port PCI Express RS232 Serial Adapter Card, PCIe to DB9 RS232 Controller Card, 16C1050 UART, 15kV ESD, Windows Only, TAA

Enhance your desktop computer's connectivity with the StarTech.com PEX8S1050 PCIe serial card, offering eight RS-232 DB9 serial ports through a PCI Express x1 slot. Designed for seamless integration into standard desktop or server environments, this plug-in card allows you to connect multiple serial peripherals such as printers, scanners, POS terminals, industrial controllers, and scientific instruments. The included 18-inch breakout cable with eight DB9 connectors simplifies setup and ensures reliable connections for high-speed data transfer at up to 921.6 Kbps per port. Its compatibility with Windows XP and newer versions makes it suitable for a variety of professional and industrial applications. The card features a robust SB16C1058PCI chipset with 16C1050 UARTs, supporting bi-directional RS-232 communication with configurable parity, data bits, and flow control options. It also provides optional power on pin 9 with up to 3A shared capacity, accommodating a wide range of peripheral power needs. The package includes the PCIe serial card, breakout cable, quick start guide, and hex nuts for secure DB9 connections. With a lifetime warranty and RoHS compliance, this versatile serial adapter is built to meet demanding industrial and commercial requirements while maintaining environmental standards. Whether used for point-of-sale systems, factory automation, or scientific data collection, the StarTech.com PEX8S1050 offers reliable, high-speed serial connectivity with easy installation and broad compatibility.

Features:

• TECH SPECS: System Base SB16C1058PCI Chipset; 16C1050 UART compatible; 8x 9-Pin D-Sub Ports; Max Baud 921.6Kbps per port; 256 Byte FIFO; Supports Windows Only; None, Even, or Odd Parity Modes; 5/6/7/8 Data Bits; RS-232 Protocol; Standard Profile Bracket

• VERSATILE APPLICATIONS: PCI Express RS232 serial adapter card suitable for point of sale terminals, PLCs, industrial controls, scientific sensors, medical devices, scanners, and oscilloscopes

• WINDOWS ONLY: Fully compliant with PCI Express Base Specifications, Revision 1.0a/1.1; compatible with Windows (XP and newer) and Windows Server (2003 and up); designed for standard profile desktops and servers

• OPTIONAL CONFIGURABLE POWER: Provides 12V/5V power options on pin 9 with up to 3A total shared; includes 18-inch DB62 to 8x DB9 breakout cable; hex nuts included for secure DB9 connections

• 8 PORT SERIAL CARD: Based on the Systembase SB16C1058PCI chipset with 15kV ESD protection; features 8 bi-directional RS-232 ports for high-speed serial data transfer
