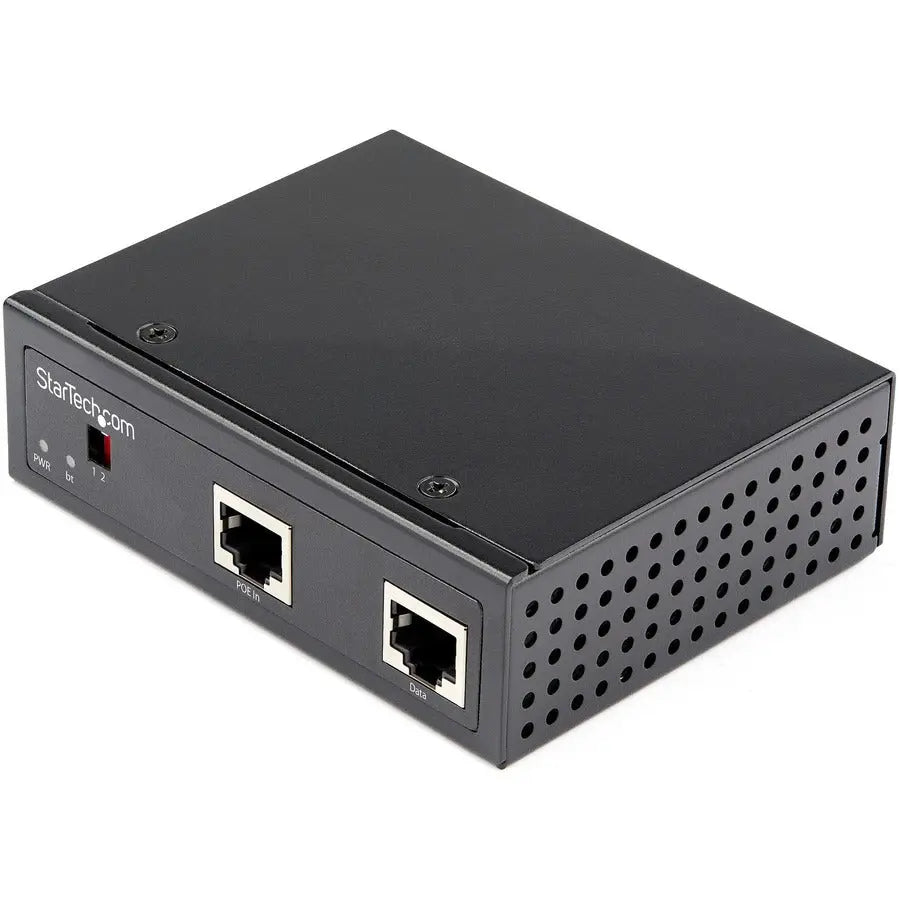

StarTech.com POESLT1G48V Industrial Gigabit PoE Splitter for 90W Power over Ethernet - 12-48V DC Output, DIN Rail & Wall Mountable

StarTech Industrial Gigabit PoE Splitter, 90W Power over Ethernet PoE++ Splitter, 12-48VDC Splitter 802.3bt Ultra PoE -40 to +75C, TAA

The StarTech.com POESLT1G48V is a high-performance industrial-grade PoE splitter designed to convert Power over Ethernet (PoE) signals into usable DC power for non-PoE devices. Supporting up to 90W of power through IEEE 802.3bt (PoE++), IEEE 802.3at (PoE+), and IEEE 802.3af (PoE), this splitter enables seamless integration of power and data over a single Ethernet cable. It effectively splits the PoE connection into separate data (RJ45) and DC power outputs, which can be configured for voltages between 12V and 48V DC at a maximum current of 1.5A, making it suitable for a wide range of applications. This feature simplifies deployment in environments where power outlets are scarce or unavailable, such as security access control, environmental monitoring, and telecommunications systems. The unit includes DIP switches for easy configuration of output voltage settings and can be mounted on walls or DIN rails using the provided hardware, offering flexible installation options in various industrial settings. Constructed to endure harsh environments, the POESLT1G48V operates reliably within temperatures from -40°C to +75°C and is rated IP-30 for dust and debris resistance. Its rugged design has been tested for vibration, shock, and free-fall conditions, ensuring long-term durability in demanding conditions. With an MTBF of over 600,000 hours, this device guarantees dependable operation over time. Certified to multiple standards, including IEC 61000-4 series and EN 60068 series, it complies with environmental regulations like EU RoHS and WEEE. The splitter features high-speed gigabit Ethernet ports, supporting data transfer rates up to 1 Gbps, and comes with a comprehensive package including a quick-start guide, mounting hardware, and terminal block. Backed by a 2-year warranty and free lifetime technical support, the StarTech.com POESLT1G48V offers a reliable solution for industrial network infrastructure where powering non-PoE devices is essential.

Features:

• High Power Gigabit PoE Splitter: Powers non-PoE devices using network infrastructure where power isn't available

• Splits PoE connection (max 90W) into RJ45 data and DC power (terminal block)

• Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), IEEE 802.3bt (PoE++ / Type 3); configurable output voltage for 12/16/24/48V DC at 1.5A

• High-Speed Data Transfer: Supports gigabit Ethernet speeds up to 1 Gbps

• Flexible Mounting Options: Wall or DIN rail mounting with included hardware

• Rugged Industrial Design: Operates reliably in temperatures from -40°C to +75°C, with vibration, shock, and free-fall resistance
