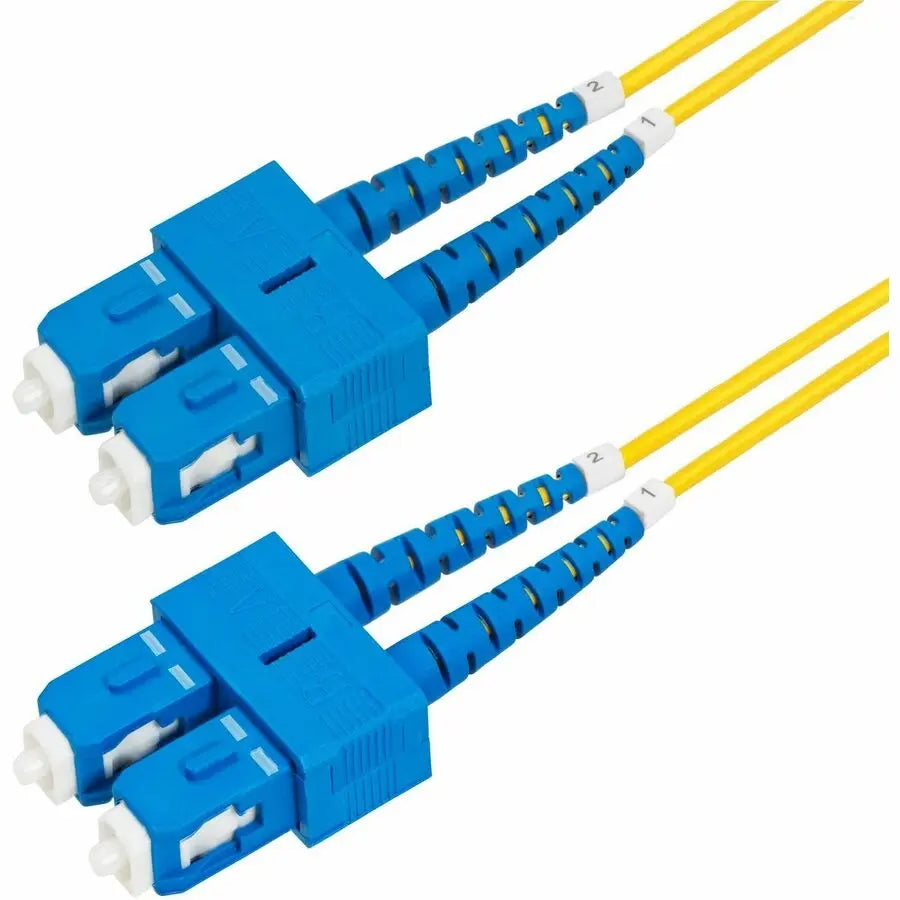

StarTech.com SMDOS2SCSC1M SC/SC Single Mode Duplex Fiber Optic Patch Cable - 1 Meter

StarTech.com 1m (3.3ft) SC to SC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125, 40G/100G, Low Insertion Loss, LSZH Jumper Cord

The StarTech.com SMDOS2SCSC1M is a high-performance fiber optic duplex patch cable designed for critical network connections in data centers, server rooms, and enterprise environments. Engineered with OS2 single mode fiber, this cable supports 40G and 100G network speeds, making it ideal for high-bandwidth applications. Its CWDM capability across a wide wavelength range of 1260-1625nm ensures extended reach and enhanced channel isolation over long distances. This feature makes it suitable for backbone connections, long-haul data transmission, and high-density network deployments.

Constructed with precision-engineered ceramic ferrules and SC/SC-UPC polished connectors, the cable guarantees low insertion loss and superior return loss characteristics. The bend-insensitive fiber core, reinforced with Aramid layers, allows for tight bends with a minimum radius of 0.4 inches, facilitating flexible routing in confined spaces. The cable's low-smoke zero-halogen (LSZH) jacket enhances safety by emitting minimal smoke and toxic fumes in case of fire, making it compliant with safety standards for use in enclosed or poorly ventilated areas. Each cable undergoes individual testing for insertion loss, providing a test report to ensure reliable, industry-standard performance.

Designed for durability and safety, the fiber cable features high-quality materials that resist micro-bending, reducing attenuation and maintaining optimal signal integrity. The yellow color coding indicates single mode fiber, and the jacket material complies with environmental standards like EU RoHS and WEEE. The connectors are clearly labeled for polarity, simplifying installation and maintenance. With a lifetime limited warranty, this fiber optic patch cable offers peace of mind combined with superior performance for demanding network environments.

Features:

• OS2 fiber optic cable supports 40G/100G networks and CWDM wavelengths from 1260-1625nm for extended long-distance applications

• SC/SC-UPC connectors with ceramic ferrules ensure low insertion loss (<0.3dB) and high return loss for reliable data transmission

• Bend-insensitive fiber core housed in an Aramid-reinforced LSZH jacket allows for tight bends with a minimum radius of 0.4 inches, suitable for complex installations

• Individually tested for performance with a detailed test report; compliant with industry standards including ITU-T G652.D/G657.A1 and IEC60703-2-50

• Low Smoke Zero Halogen (LSZH) jacket provides safe operation in enclosed or hazardous environments, emitting minimal smoke and toxic fumes in case of fire

• Yellow color coding indicates single mode fiber; high micro-bend resistance enhances durability and signal integrity in dense setups
