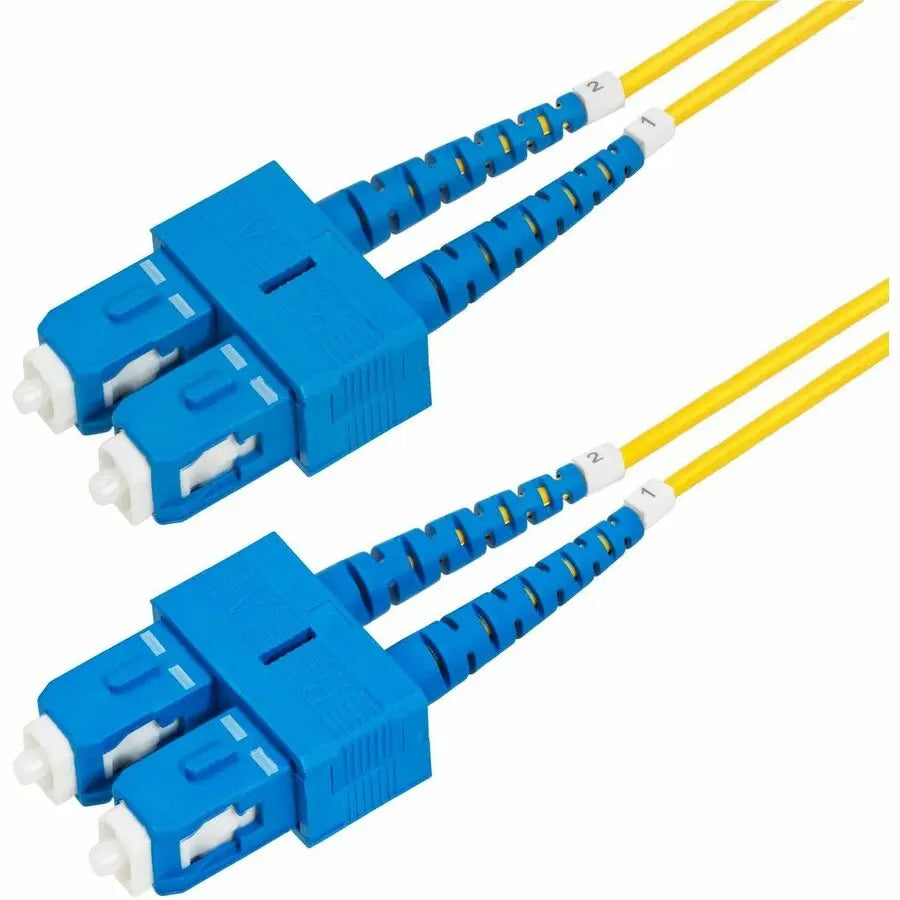

The StarTech.com SMDOS2SCSC3M fiber optic duplex patch cable is engineered for high-performance data center and network applications, supporting 40G and 100G bandwidths with enhanced reliability. This OS2 single mode fiber optic cable features a durable construction with SC/SC-UPC connectors that provide superior return loss compared to traditional PC polish. Its 9/125µm core, optimized for CWDM wavelengths from 1260nm to 1625nm, ensures extended channel isolation and minimal signal degradation over long distances, making it ideal for enterprise and data center environments.
Designed with precision, the cable's ceramic ferrules enable precise fiber alignment, resulting in an insertion loss of less than 0.3dB. The bend-insensitive fiber core is reinforced with an Aramid jacket, allowing for tight bends with a minimum radius of 10mm without compromising signal integrity. This construction reduces the risk of micro-bends, ensuring consistent performance even in complex installations. The cable's low attenuation rate and compliance with industry standards such as ITU-T G652.D/G657.A1 and IEC60703-2-50 guarantee optimal data transmission quality.
Safety and environmental considerations are integral to this cable's design. The LSZH (Low Smoke Zero Halogen) jacket minimizes smoke and toxic fumes in the event of a fire, making it suitable for installation in enclosed or poorly ventilated spaces such as data centers, trains, and aircraft. Each cable undergoes rigorous testing for insertion loss performance, with a detailed test report provided to ensure maximum reliability. The yellow color coding and numbered connectors facilitate easy polarity identification, simplifying installation and maintenance tasks.
OS2 fiber cable: immune to EMI, supports 10/40/100G networks, extended CWDM wavelength range for long-distance connections
Quality construction: SC/SC-UPC connectors for improved return loss, bend-insensitive fiber housed in an Aramid-reinforced jacket
Safety and reliability: individually tested, low smoke LSZH jacket, attenuation below industry standards, suitable for harsh environments
Compatibility: supports high-speed data transfer, backward compatible with OS1 networks, ideal for connecting servers, switches, and data center equipment
Specifications: 3 meters (approx. 9.8 feet), single mode, SC/SC connectors, yellow jacket for easy identification
Features:
OS2 fiber cable: immune to EMI and optimized for 10/40/100G networks; Coarse Wavelength Division Multiplexing (CWDM) enables extended 1260-1625nm wavelength support for greater channel isolation over long distances
Quality construction: SC/SC-UPC ends for improved return loss over PC polish; Number-labeled connectors to indicate polarity; Bend insensitive fiber core housed in Aramid-reinforced jacket for a loaded bend radius of 10mm
Safety and reliability: individually tested for guaranteed performance; test report included; LSZH jacket emits low toxic fumes if combusted; safe for enclosed/poorly ventilated spaces; attenuation value under 0.35dB/km outperforms industry standards
Compatibility: supports 40G/100G networks; backward compatible with OS1; high micro-bend resistance facilitates tight bends in complex installations; ideal for connecting between servers, switches, and data center equipment
Specifications: 3 meters (9.8 feet); OS2 single mode fiber; SC/SC (UPC) connectors; yellow jacket for easy identification and polarity management
