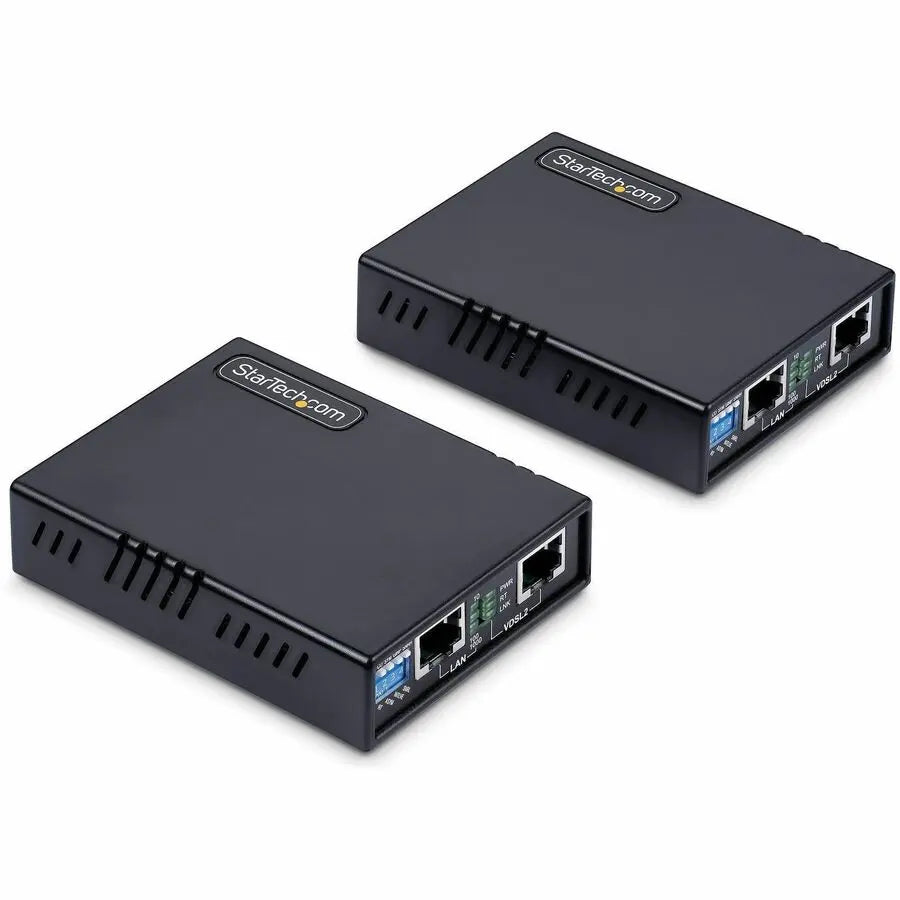

StarTech.com VDSL-LAN-EXTENDER-1G Network Extender for VDSL2 up to 1 km with 300 Mbps Speeds

StarTech VDSL2 Ethernet Extender Kit over Single Pair Wire Up to 0.6mi (1km), LAN Repeater over RJ11/CAT5e/6, Replaces 110VDSLEXT, TAA

The StarTech.com VDSL-LAN-EXTENDER-1G is a versatile network extender designed to extend Ethernet connectivity over VDSL2 lines up to 0.6 miles (1 kilometer). This device supports UTP, CAT5e/6, or single-pair telephone wire, making it suitable for a wide range of installations, including remote offices, branch locations, or IP-based video solutions. With support for VDSL2 standards such as 35b, 30a, and 17a, as well as ITU-T G.993.5 G.Vectoring and G.INP technologies, it ensures high-speed data transfer with aggregated speeds of up to 300 Mbps at shorter distances. Its compatibility with third-party VDSL2 IP DSLAMs in CPE (RT) mode enhances its flexibility for various network configurations.
The device features a comprehensive set of profile configurations that can be customized via DIP switches. Users can select between master or remote modes, symmetric or asymmetric bandwidth, and G.INP or interleave modes. Additionally, the ability to fine-tune the SNR with high and low options allows for optimal performance based on specific deployment requirements. The inclusion of four LEDs provides visual feedback on network status, such as LAN speed, link status, power, and the operational mode (remote or master), simplifying network management and troubleshooting.
Designed with ease of installation in mind, the TAA-compliant Long Range LAN Extender can be wall-mounted using included hardware or placed on a shelf or surface, offering flexible mounting options. The package includes two power adapters, one for each unit, ensuring reliable operation. Its robust plastic construction and black finish give it a professional appearance suitable for various environments. The device supports VLAN tag transparency with 802.1Q, allowing seamless traffic management across extended networks. Its compatibility with existing infrastructure makes it an ideal solution for extending high-speed network connections over existing wiring, reducing the need for expensive cabling or infrastructure upgrades. Overall, the StarTech.com VDSL-LAN-EXTENDER-1G provides a reliable, customizable, and easy-to-deploy solution for extending network reach up to a kilometer with high-speed performance and comprehensive management features.

Features:

• VDSL2 Extender: Extend a network over VDSL2, using UTP, CAT5e/6, or RJ11 cabling, at distances up to 0.6 miles (1 km); Up to 300 Mbps (aggregated) at shorter distances; Supports VDSL2 35b/30a/17a, ITU-T G.993.5 G.Vectoring, and G.998.4 G.INP standards

• 8 Profile Configurations: Customize the installation with DIP switch selectable settings; Choose between Master or Remote mode, Symmetric or Asymmetric mode, G.INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance

• Intuitive Indicators: Features four LEDs that provide a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to monitor and assess network connectivity

• Versatile Mounting Options: Can be wall-mounted with included hardware or placed on a shelf or surface; Includes two power adapters, one for each VDSL Extender unit

• Applications: Compatible with third-party VDSL2 IP DSLAMs in CPE mode; suitable for remote office, branch, or IP video applications; preserves VLAN-tagged traffic with 802.1Q transparency
