T-H Marine Atlas 12in Jack Plate Standard Hydraulic Polished

Explore the Features and Benefits of the T-H Marine Atlas Jack Plate

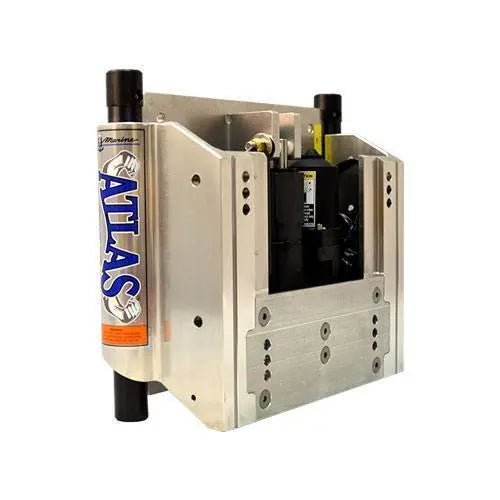

T-H Marine Atlas 12in Jack Plate Standard Hydraulic Polished

TH Marine Atlas 12" Jack Plate

Model: AHJ-12V-DP

• ATLAS is truly the best hydraulic jack plate in the world
• ATLAS is factory installed by more boat manufacturers than any other plate
• ATLAS is used by more professional fisherman than any other hydraulic jack plate
• ATLAS is the #1 selling hydraulic plate in the world — sold & serviced by more outlets
• ATLAS hydraulic actuator is made in the U.S.A. vs. our competitors being from China
• TLAS is made by T-H Marine/CMC, who were the FIRST to offer an actuator inside the jack plate — the competition copied
• ATLAS was the first plate to offer predrilling for shallow water anchors — the competition copied
• ATLAS was the first and only plate that did not require regular grease lubrication — the competition design cannot do that
• ATLAS was the first plate to include a heavy duty safety cable to protect boaters from engine entering cockpit upon failure
• ATLAS was the first plate to offer a very simple actuator replacement in the field
• ATLAS was the first major development in hydraulic jack plates in over a decade — spurring hydraulic jack plate improvement

T-H Marine's ATLAS hydraulic jack plate is truly the next generation in jack plate design, built for the heaviest and most powerful outboard engines on the market today, even the big four strokes. Our innovative high tech engineered polymer rod and slot lifting design guarantees trouble free action. This plate also features the newest concept in one-piece hydraulics from the most respected name in hydraulic design, providing the best of all worlds: Speed and Self contained lifting action. This all new pump will lift the heaviest outboard from bottom to top in less than 8 seconds.

Self Contained Hydraulic Pump System (No Reservoir or lines to install) Hydraulic actuator is made in the U.S.A. Fast! - Bottom to Top in Less than 8 Seconds Rod and Slot Lifting Design - Trouble Free Lifting Action Hi-Tech Engineered Polymer Rods - 6 Times More Abrasion Resistant than Steel Rods Made from Self Lubricating Material, no grease required Easy Two-Pin Pump Removal - Quick Maintenance Installs in Half the Time of Comparable Jack Plates Available in 4, 6, 8, 10, 12 and 14 inch Setback Models Standard versions can be used for most outboards - 350hp Max "HD" - HEAVY DUTY version is rated for engines up to 400hp. All ATLAS plates are predrilled for Power-Pole® and Minn-Kota Talon® bracket mounting Stroke Length - 5 Inches Height Adjustment Up to 7 Inches

Specifications

Setback
12

Hydraulic Rise
5.75"

Total Rise
8.25" - 9.75"

Weight Limit
625 lbs

HP
300 max



Superior Build Quality and Material





The T-H Marine Atlas 12in Jack Plate is expertly constructed with polished aluminum, providing exceptional durability and resistance to harsh marine environments. This jack plate is designed to enhance the performance of your boat by allowing precise height adjustments of the outboard motor. The polished finish not only adds a sleek look but also offers corrosion resistance, ensuring long-lasting reliability. T-H Marine has engineered this product to meet the tough demands of saltwater and freshwater usage, making it a valuable upgrade for boat owners seeking quality and performance combined.





Hydraulic Operation for Effortless Control





Featuring a standard hydraulic system, the T-H Marine Atlas Jack Plate ensures smooth, consistent, and effortless height adjustments. The hydraulic mechanism allows boaters to quickly raise or lower the motor with a simple push of a button or lever, improving maneuverability and efficiency while on the water. This functionality is crucial for optimizing thrust, fuel efficiency, and handling in varying water conditions. With its reliable hydraulic power, the jack plate supports better acceleration and cleaner rides by keeping the motor in the ideal position relative to the boat hull.





Compatibility and Installation Ease





The 12-inch jack plate from T-H Marine is designed to fit a broad range of outboard motors, making it a versatile addition for many boat types. It is engineered with user-friendly mounting points and includes clear installation instructions, allowing for quick and secure attachment. This plug-and-play feature reduces the time and effort typically associated with aftermarket modifications. Boaters will appreciate how seamlessly the Atlas Jack Plate integrates with their vessel’s setup, enhancing performance without complex installation or modification.







Durable Hydraulic Operation for Optimal Performance





The T-H Marine Atlas 12in Jack Plate features a high-quality hydraulic system designed to provide smooth and reliable height adjustments. This standard hydraulic operation allows boaters to optimize their motor position effortlessly, enhancing overall vessel performance. With its polished finish, the jack plate not only offers functional strength but also adds a sleek, professional appearance. By seamlessly integrating hydraulic control, this product is essential for those seeking precise trim adjustments in varying water conditions, making it a top choice within the T-H Marine line.





Robust Construction for Long-lasting Use





Built with premium materials and a polished surface, the T-H Marine Atlas jack plate boasts excellent durability and resistance to corrosion. Its rugged frame is engineered to withstand harsh marine environments, ensuring reliable functionality season after season. This robust construction guarantees the jack plate maintains its structural integrity even under demanding conditions, supporting motors up to significant weight limits. If you want a trustworthy product that combines strength and longevity, the T-H Marine Atlas 12in jack plate meets these requirements expertly.





Enhanced Boat Maneuverability and Customization





Installing the T-H Marine Atlas 12in Jack Plate offers boat owners enhanced maneuverability by allowing quick motor height adjustments on the water. This customization improves boat handling, fuel efficiency, and overall control, particularly in shallow waters or varying depths. The polished hydraulic jack plate simplifies these changes with responsive controls, making it easier to react to different water environments. Whether for casual boating or competitive fishing, this T-H Marine product provides the flexibility needed to optimize your boating experience fully.
