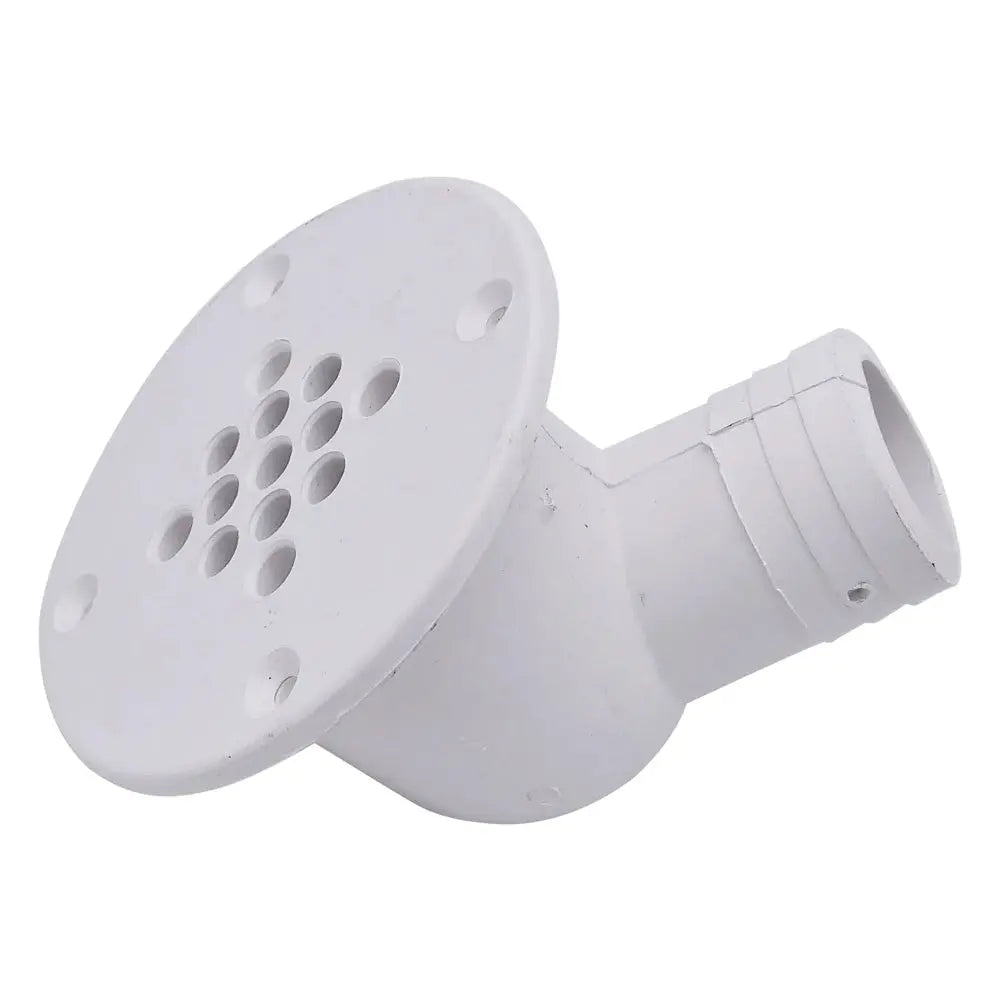

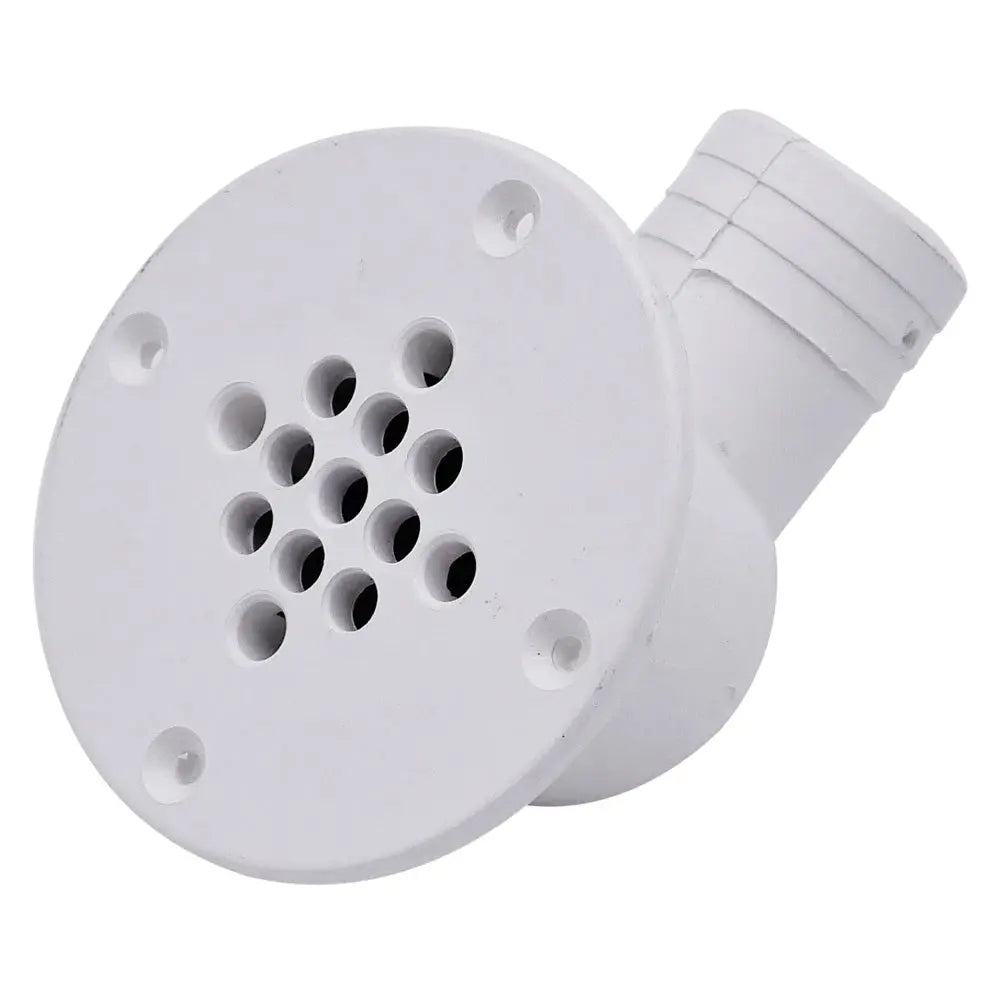

T-H Marine Supplies CSD-92-DP 90-Degree Cockpit Scupper Drain - White

90-Degree Cockpit Scupper Drain - White

This cockpit scupper drain is an affordable and durable solution for draining areas below the waterline. Made from high-strength, UV-stabilized polymer, it features a check ball for effective sealing against reverse water flow and an optional leaf guard to prevent clogging.

This cockpit scupper drain provides an inexpensive alternative to items currently available for draining areas where the discharge is below the waterline. This injection-molded part is high-strength and UV-stabilized to provide value and durability. The check ball contained inside the cockpit scupper drain is molded and then ground smooth and round to provide better sealing against reverse water flow that occurs when backing the boat. The leaf guard model has raised ribs on the head to prevent debris (leaves, scales, etc.) from clogging holes.

The overall diameter of the mounting flange is 3 9/16. The cockpit scupper drain requires a 2 1/2 diameter hole for installation and mounts with four (4) number 8 screws (not furnished). The top of the cockpit scupper drain is removable for cleaning. All outlets fit 1 1/2 inch drain hoses.

Features:

• Check the ball inside to prevent water from backing up
• Made of high-strength, UV-stabilized polymer
• Removable top screen for easy cleaning
• An optional leaf guard prevents debris from clogging
• Fits standard 1-1/2 drain hoses

Specifications:

• 90-Degree Outlet
• 1-1/2 Hose Diameter
• Color: White

The T-H Marine Supplies CSD-92-DP 90-Degree Cockpit Scupper Drain in white offers an efficient and cost-effective solution for draining below-waterline areas on your boat. Crafted from high-strength, UV-stabilized polymer, this durable component ensures long-lasting performance even in harsh marine environments. The check ball inside the scupper prevents reverse water flow, safeguarding your vessel from potential flooding. Its design includes a removable top for easy cleaning and maintenance, making it simple to keep your drainage system clear of debris. An optional leaf guard with raised ribs effectively prevents clogging caused by leaves, scales, and other debris, ensuring smooth water flow and reducing maintenance needs. Designed to fit standard 1-1/2 inch drain hoses, with an overall flange diameter of 3-9/16 inches, it mounts securely using four #8 screws (not included). The 90-degree outlet configuration helps facilitate efficient water drainage from below the waterline, enhancing your boat’s safety and operational reliability. Installation is straightforward, requiring a 2-1/2 inch diameter hole, and the product is engineered for durability and ease of use in marine environments. Whether replacing an existing scupper or installing a new drainage system, this high-quality component provides a dependable and affordable option to maintain optimal water management onboard.

Features:

• Check the ball inside to prevent water from backing up

• Made of high-strength, UV-stabilized polymer

• Removable top screen for easy cleaning

• An optional leaf guard prevents debris from clogging

• Fits standard 1-1/2 inch drain hoses
