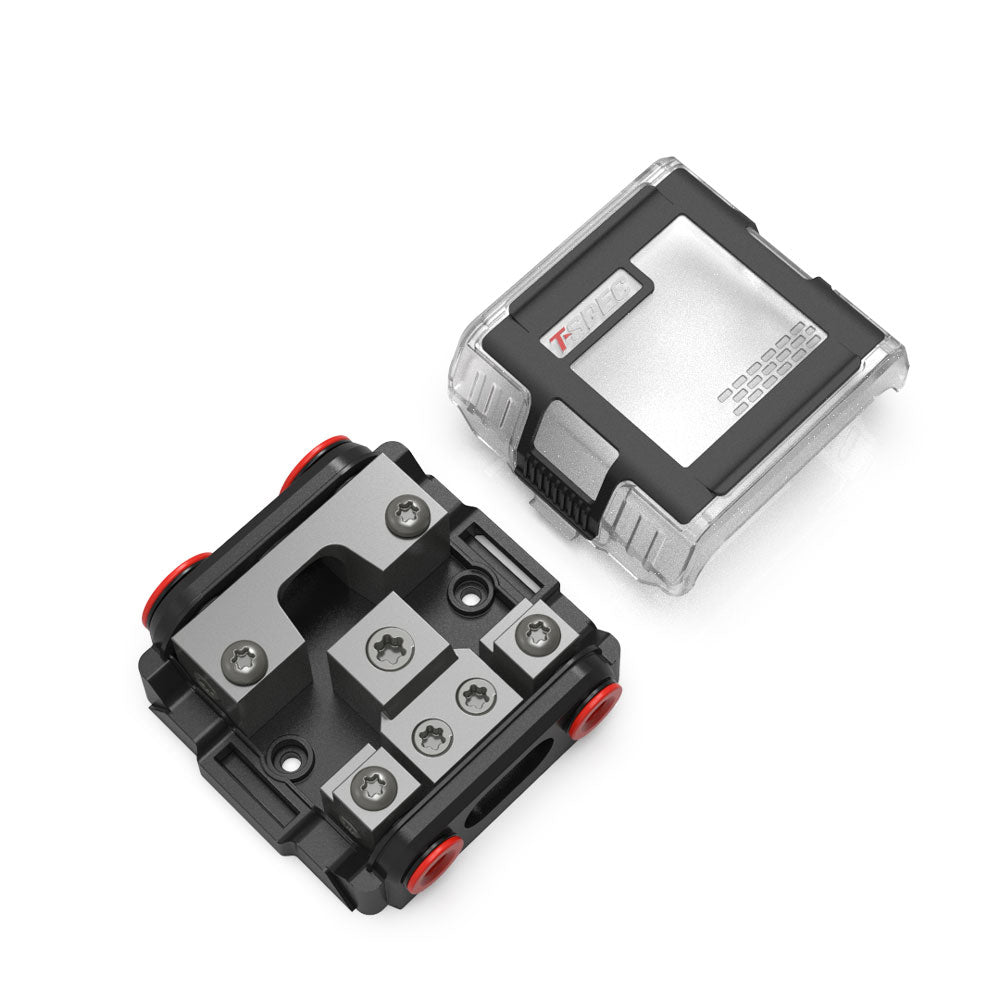

T-Spec VPNB2 ManL 2-Position All-In-One Distribution Block with Cover for Power and Ground Distribution

VPNB2 MANL 2 Position All-In-One Distribution Block with Cover

T-Spec designed VPNB2 distribution block to handle the high-current power and ground distribution for two (2) power sources, and protect them each with a mini-ANL fuse. This hefty little block distributes power from one (1) 1/0-gauge positive power cable to two (2) 4- to 8-gauge power leads, each routed through a mini-ANL fuse.

Then, the same block receives the amps' two ground wires and combines them for a single 1/0-gauge ground cable.

Fuses sold separately.

Features:

• (2 positive) 1/0 to 4 AWG in to (2 positives) 4/8 AWG out
• (1 negative) 1/0 to 4 AWG in to (2 negatives) 4/8 AWG out
• TPEwrapped soft touch
• Dual sizes gasket set
• Water-resistant
• Solid brass construction
• Black nickel finish
• T20 Torx screws
• Gate Lock technology

In the Box:

• Distribution block for both power and ground
• Plastic cover (attached)
• 2 Rubber grommets and sleeves on power inputs (installed)
• 2 Rubber grommets and sleeves on power outputs (installed)

*Sold as an Individual

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The T-Spec VPNB2 ManL distribution block is engineered to provide reliable high-current power and ground distribution for automotive and audio applications. Designed with T-Spec’s high-quality construction, this all-in-one distribution block safely manages two separate power sources and grounds, making it ideal for complex wiring setups. Its robust solid brass construction ensures durability and conductivity, while the black nickel finish adds corrosion resistance and a sleek appearance. The device features dual inputs for positive and negative cables, facilitating efficient distribution from a single 1/0-gauge power cable to two smaller leads, ranging from 4 to 8 gauge. Each positive circuit is protected by a mini-ANL fuse (sold separately), providing an extra layer of safety against electrical faults. The same block consolidates two ground wires into a single, heavy-duty 1/0-gauge ground cable, simplifying wiring and reducing clutter in your installation. The distribution block is water-resistant and features TPE-wrapped soft-touch surfaces for improved grip and handling during installation. It includes a durable plastic cover, rubber grommets, and sleeves on all power inputs and outputs, ensuring secure connections and protection from environmental elements. The unit also incorporates T20 Torx screws and Gate Lock technology for secure mounting and tamper resistance. This versatile component is designed for professional and enthusiast use, offering a clean, organized, and safe power distribution solution for audio amplifiers, lighting, and other high-current automotive accessories. Installation is straightforward with included accessories, and its compact size allows it to fit into tight spaces without compromising performance. Whether upgrading your vehicle’s electrical system or building a custom audio setup, the T-Spec VPNB2 distribution block delivers dependable power management in a compact, resilient package. Note that fuses are sold separately, and this product is intended for professional-grade wiring applications.

Features:

• Two positive inputs from 1/0-gauge to 4 AWG, distributing power to two 4/8 AWG outputs

• One negative input from 1/0-gauge to 4 AWG, distributing ground to two 4/8 AWG outputs

• TPE-wrapped soft-touch surface for easy handling and installation

• Dual-size gasket set for secure sealing and environmental protection

• Water-resistant construction suitable for automotive environments

• Solid brass construction for excellent conductivity and durability

• Black nickel finish providing corrosion resistance and aesthetic appeal

• Includes T20 Torx screws for secure mounting

• Gate Lock technology for tamper-proof installation
