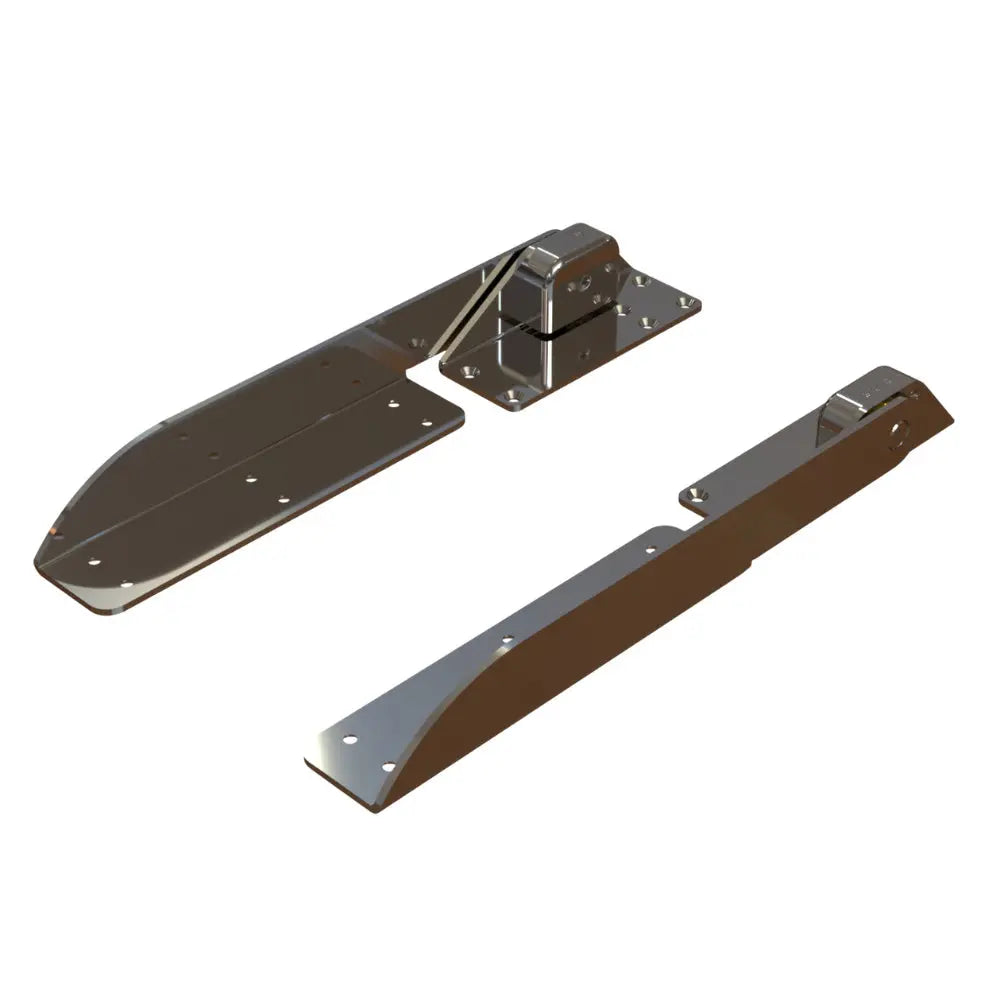

TACO Marine Command Ratchet Hinge - 18-1/2 inch Polished 316 Stainless Steel with Hard Stop

Command Ratchet Hinge - 18-1/2 - 316 Stainless Steel Polished with Hard Stop

Building upon the popularity of the H25-0023 heavy-duty Command Ratchet Hinge, this 18-1/2 hinge features a hard stop at 105 and is ideal for longer seat backs up to 22. This extended specialty hinge features one locking position at 62.5 and is perfect for sun pads, bolsters, and lounge backrests.

Features Benefits:

• Single- or double-seat capacity
• Can be used for seat backs up to 22 long
• Compatible with cushions up to 4 thick
• Mounts above the deck

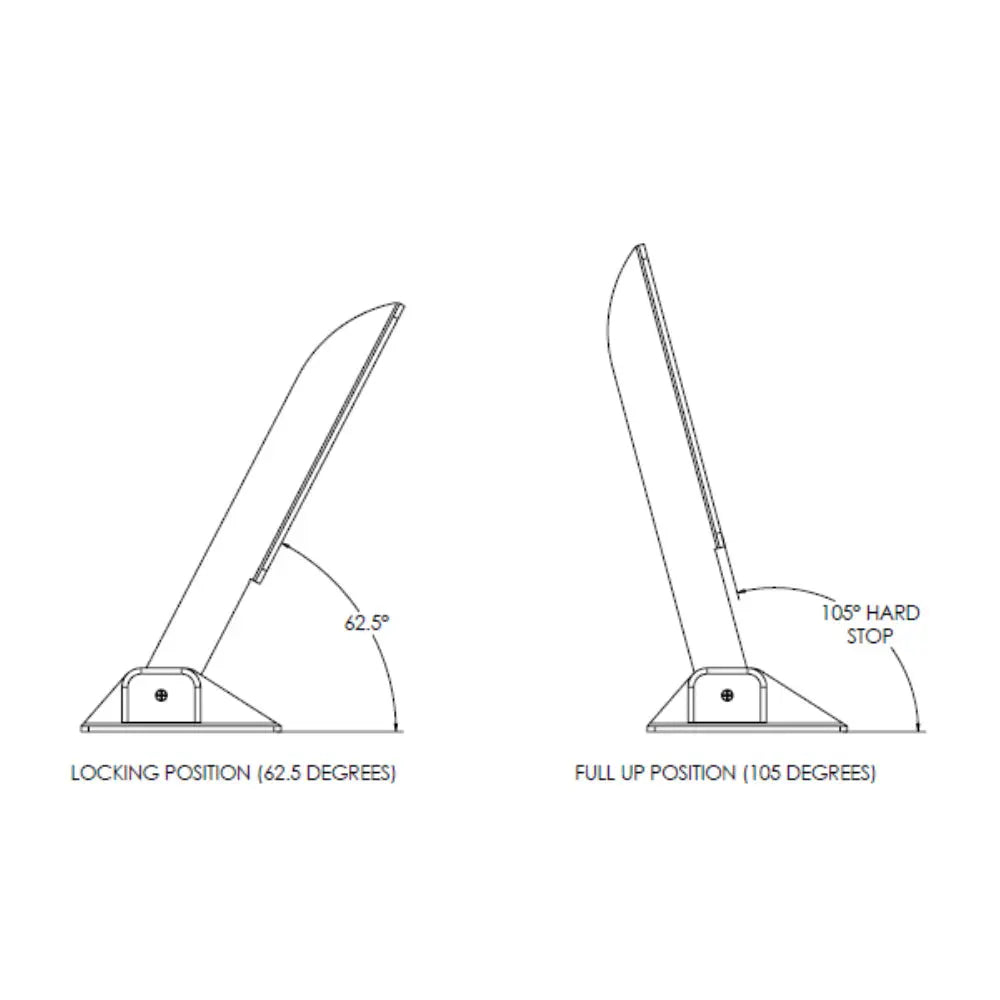

• One locking position at 62.5
• Hard stop at 105
• Polished Type-304 stainless steel
• Meets ABYC H-31 standards class B* application, 500 ft-lb. of torque load for a pair
• 500-hour salt fog test
• Sold in pairs

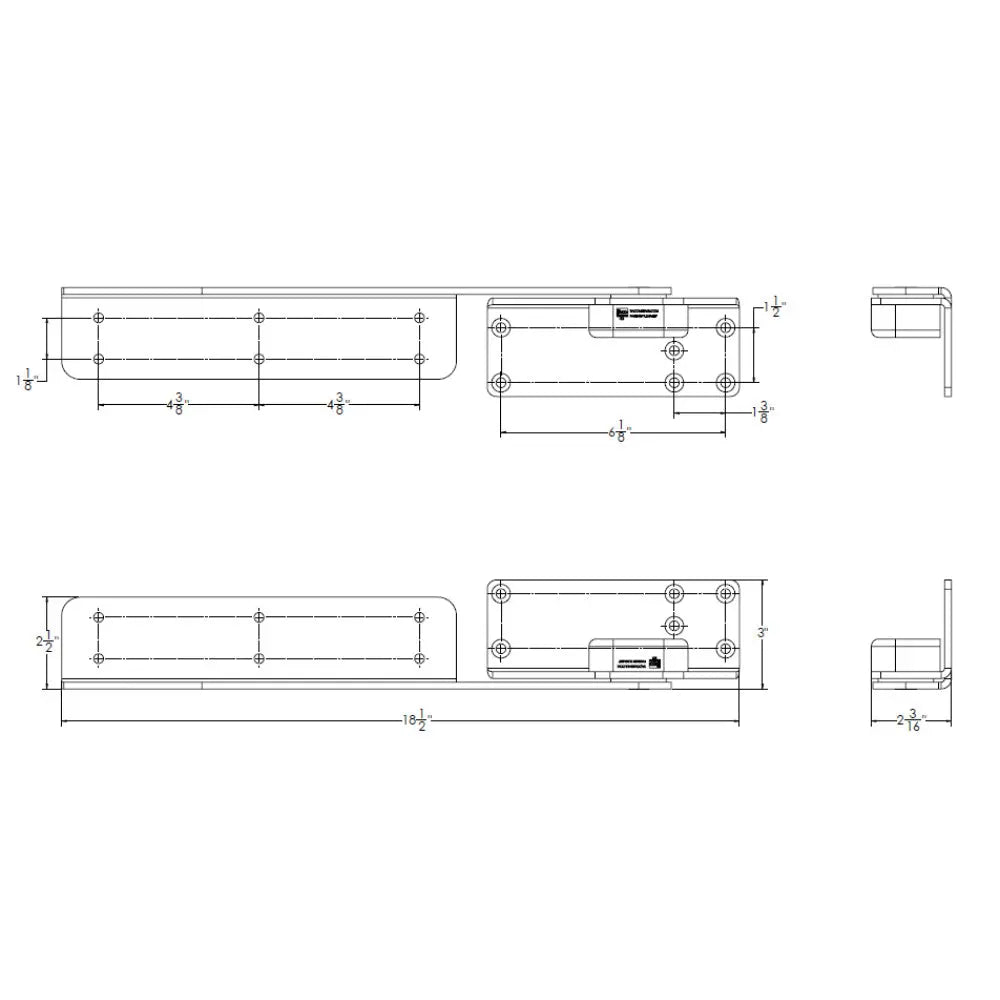

Specifications:

• Length: 18-1/2
• Width: 3
• 5-year limited warranty

The TACO Marine Command Ratchet Hinge, part number H25-0048, offers a durable and versatile solution for boat seat backs, sun pads, bolsters, and lounge backrests. Crafted from polished Type-316 stainless steel, this hinge combines corrosion resistance with a sleek appearance, making it suitable for marine environments. Its 18-1/2-inch length provides ample support for extended seat backs up to 22 inches long, ensuring comfort and stability on your vessel.

Designed with a hard stop at 105 degrees and a locking position at 62.5 degrees, this hinge allows for easy adjustment and secure positioning. Its above-deck mounting facilitates seamless installation, while its compatibility with cushions up to 4 inches thick makes it adaptable to various seating configurations. The hinge's robust construction meets ABYC H-31 standards for class B application, capable of withstanding a torque load of 500 ft-lb for a pair. Additionally, it has undergone a 500-hour salt fog test, confirming its durability in harsh marine conditions.

Each pair of hinges is sold complete with features that enhance functionality and longevity. The design supports both single- and double-seat configurations, providing flexibility for different boat layouts. Backed by a 5-year limited warranty, the TACO Marine Command Ratchet Hinge is a reliable choice for demanding marine seating applications, combining quality materials with thoughtful engineering for long-term performance.

Features:

• Heavy-duty design with a hard stop at 105 degrees for secure positioning

• Locking position at 62.5 degrees for adjustable support

• Polished Type-316 stainless steel construction for corrosion resistance

• Suitable for seat backs up to 22 inches long and cushions up to 4 inches thick

• Mounts above the deck for easy installation

• Meets ABYC H-31 standards for marine safety and durability

• Capable of withstanding 500 ft-lb torque load per pair

• Salt fog tested for 500 hours to ensure corrosion resistance

• Sold in pairs with a 5-year limited warranty
