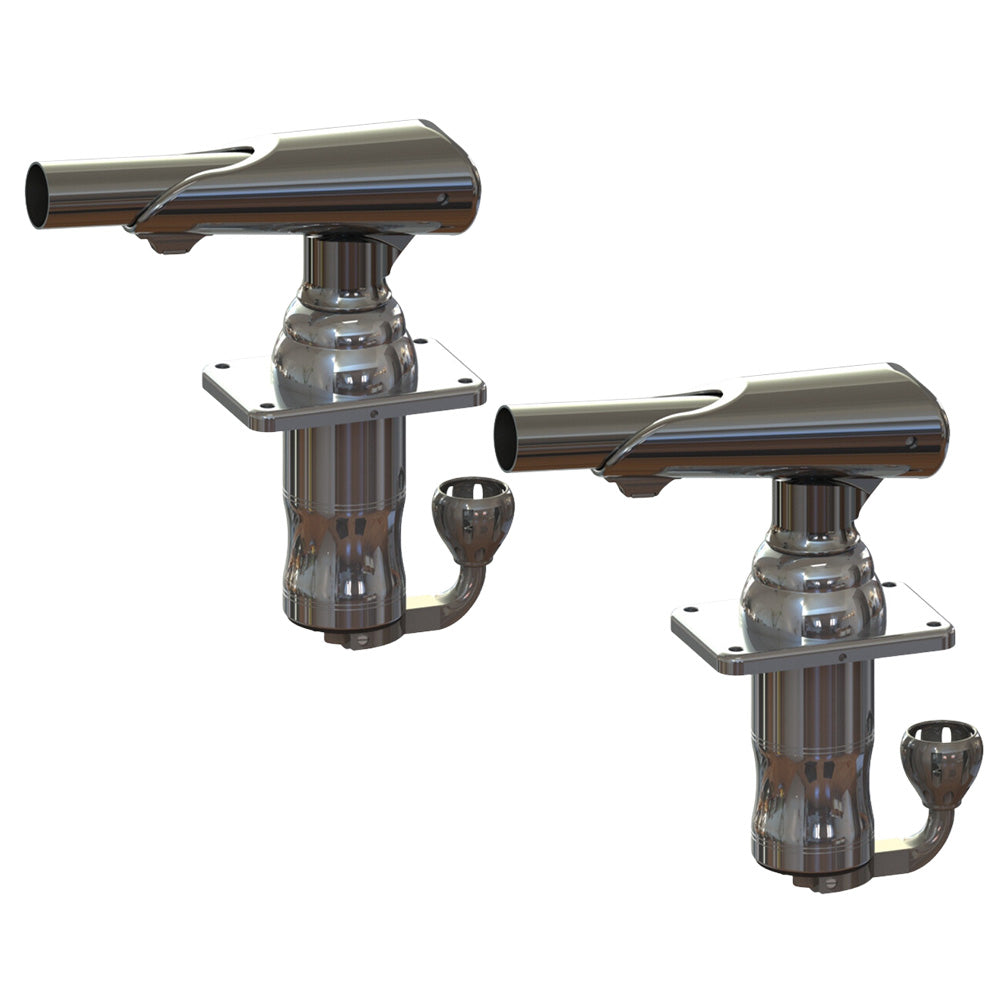

TACO Marine Grand Slam 300 Outrigger Mount for 1-1/2-Inch Outriggers

Grand Slam 300 Outrigger Mount for 1-1/2 Outrigger

Single-Handle Operation is Here! Introducing the Grand Slam 300 a stainless-steel / polished, anodized aluminum, single-handle Outrigger Mount that delivers enhanced safety and performance with smooth, one-handed operation from the deck. Easily adjust rotation and lift of outrigger poles using the GS-300s ergonomic crank handle, which locks flush into the base. The Mounts attractive, all-metal design means no plastic components, a greater water seal, and increased protection from the elements. The GS-300 pairs with TACOs award-winning Open Water Internal Collapsible Carbon Fiber Outrigger Poles, as well as Aluminum or Carbon Fiber Tele-Outrigger Poles up to 22 with an underside pin-locking connection eliminating the need for port and starboard designations.

Features Benefits:

PIN-LOCKING ARM

• No port or starboard designation
• Underside locking pin connection
• Arm lifts to 46.5 from the horizontal position for kite fishing and dock clearance
• Pairs with 1-1/2 DIA Outrigger Poles up to 22
• Can be used with Outrigger Base Reducer for 1-1/8 DIA poles

HANDLE

• Stainless-steel, ergonomic, single-hand crank handle with ball bearing
• Enables lift and rotation of outrigger poles from the safety of the deck
• Unique, locking flip handle
• Keeps the handle knob on the bottom when lifting or rotating the outrigger
• Provides full torque control and safety of deployment at all times
• Robust, dual-detented lifting crank handle locks flush into base

MOUNT

• Ideal for boats 25 to 40
• Constructed from cast stainless steel and machined aluminum for a stronger, lighter base
• Each mount weighs 15 pounds (30 pounds per pair)
• Safety detents prevent uncontrolled rotation when deploying outrigger poles
• Allows a controlled 180 rotation, if needed
• The locking head eliminates the downward creep of outrigger poles
• Equipped to handle the torque and whip generated by poles up to 22
• Includes mounting hardware for easy installation
• The base hole pattern matches all TACO Marine Grand Slam models, as well as the industry standard hole patterns of other top-mount outrigger systems
• Backing plates (BP-0300) sold separately
• 3-year limited warranty

Specifications:

• Weight: 30lbs
• Sold as a pair

The TACO Marine Grand Slam 300 Outrigger Mount is a durable, all-metal mounting solution designed for boats ranging from 25 to 40 feet. Crafted from cast stainless steel and machined aluminum, this mount offers a balance of strength and lightweight convenience, weighing approximately 30 pounds when paired. Its robust construction ensures reliable performance and resistance to harsh marine environments. This mount is compatible with TACOs award-winning Open Water Internal Collapsible Carbon Fiber Outrigger Poles, as well as aluminum or carbon fiber tele-outrigger poles up to 22 feet, providing versatile options for various fishing styles and boat configurations. The mount’s design features a locking head that prevents downward creep of the outrigger poles, along with safety detents that prevent uncontrolled rotation during deployment, ensuring smooth and secure operation at all times.

The GS-300 offers a user-friendly, single-handle operation with a stainless-steel ergonomic crank handle that locks flush into the base, allowing for easy, one-handed adjustment of rotation and lift. The handle's unique flip-lock design maintains a secure grip while providing full torque control, essential during high-torque operations such as kite fishing or dock clearance. The arm can be lifted up to 46.5 degrees from the horizontal, facilitating clear and safe deployment. Its pin-locking arm eliminates the need for port and starboard designations, simplifying installation and operation. The mount's base features a hole pattern compatible with all TACO Marine Grand Slam models and other industry-standard top-mount outrigger systems, making it highly versatile and easy to integrate into your existing setup.

Designed with safety and durability in mind, the Mount includes mounting hardware for straightforward installation. Its all-metal construction provides a greater water seal and increased protection from the elements, making it suitable for demanding marine conditions. The mount’s compact design and lightweight profile make it suitable for a wide range of vessel sizes, providing a reliable platform for your outriggers. Backed by a 3-year limited warranty, the TACO Marine Grand Slam 300 Outrigger Mount is an excellent choice for serious anglers seeking performance, safety, and durability in their outrigger deployment system.

Features:

• Pin-locking arm: No port or starboard designation, underside locking pin, lifts up to 46.5 degrees, pairs with 1-1/2 inch diameter poles up to 22 feet

• Handle: Stainless-steel ergonomic crank with ball bearing, flip lock handle for secure operation, full torque control, locks flush into base

• Mount: Suitable for boats 25-40 feet, constructed from cast stainless steel and machined aluminum, weighs 30 pounds per pair, includes mounting hardware, features safety detents, allows 180-degree rotation, compatible with industry-standard hole patterns
