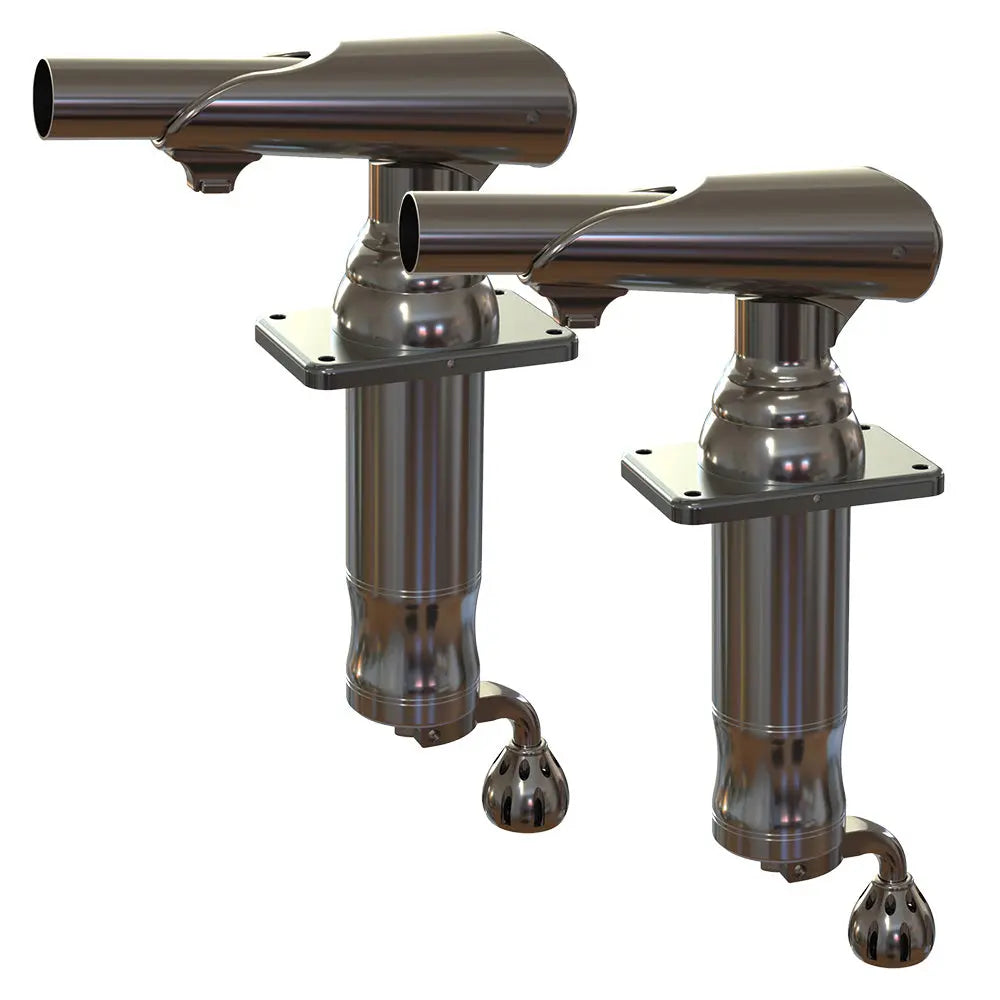

TACO Marine Grand Slam 300XL Outrigger Mount for 1-1/2 inch Poles

Grand Slam 300XL Outrigger Mount for 1-1/2 Outrigger

Single-Handle Operation, Now for Larger Hardtops! The Grand Slam 300XL a stainless-steel / polished, anodized aluminum, single-handle Outrigger Mount designed for hardtops up to 4.5. Delivering enhanced safety and performance, the GS-300XL offers smooth, one-handed operation from the deck. Easily adjust rotation and lift of outrigger poles with the ergonomic crank handle, which locks flush into the base for a sleek, secure fit. Built with an all-metal designno plastic componentsthe 300XL provides a superior water seal and increased protection from the elements. The GS-300XL pairs seamlessly with TACOs award-winning Open Water Internal Collapsible Carbon Fiber Outrigger Poles, as well as Aluminum or Carbon Fiber Tele-Outrigger Poles up to 22, featuring an underside pin-locking connection that eliminates the need for port and starboard designations.

Features Benefits:

PIN-LOCKING ARM:

• No port or starboard designation
• Underside locking pin connection
• Arm lifts to 46.5 from the horizontal position for kite fishing and dock clearance
• Pairs with 1-1/2 DIA Outrigger Poles up to 22
• Can be used with Outrigger Base Reducer for 1-1/8 DIA poles

HANDLE:

• Stainless-steel, ergonomic, single-hand crank handle with ball bearing
• Enables the lift and rotation of outrigger poles from the safety of the deck
• Unique, locking flip handle
• Keeps the handle knob on the bottom when lifting or rotating the outrigger
• Provides full torque control and safety of deployment at all times
• Robust, dual-detented lifting crank handle locks flush into base

MOUNT:

• Made for hardtops up to 4-1/2 thick
• Ideal for boats 25 to 40
• Constructed from cast stainless-steel and machined aluminum for a stronger, lighter base
• Each mount weighs 15 pounds (30 pounds per pair)
• Safety detents prevent uncontrolled rotation when deploying outrigger poles
• Allows a controlled 180 rotation, if needed
• Locking head eliminates the downward creep of outrigger poles
• Equipped to handle the torque and whip generated by poles up to 22
• Includes mounting hardware for easy installation
• Base hole pattern matches all TACO Marine Grand Slam models, as well as the industry standard hole patterns of other top-mount outrigger systems
• Backing plates (BP-0300) sold separately
• 3-year limited warranty

The TACO Marine Grand Slam 300XL Outrigger Mount is designed for boats with hardtops up to 4.5 inches thick, providing a robust and reliable solution for mounting outrigger poles. Crafted from cast stainless steel and machined aluminum, this mount offers a lightweight yet durable foundation capable of handling the torque and whip generated by poles up to 22 feet long. Its sleek, all-metal construction ensures superior water sealing and increased protection from harsh marine environments, making it an ideal choice for serious anglers seeking performance and longevity.

Equipped with a stainless-steel, ergonomic single-handle crank, the GS-300XL allows smooth, one-handed operation for adjusting the rotation and lift of outrigger poles directly from the deck. The handle features a locking flip mechanism and ball bearing for full torque control, enhancing safety and deployment efficiency. The pin-locking arm design eliminates the need for port or starboard designations, with an underside locking pin connection that lifts to 46.5 inches for kite fishing or dock clearance. The mount is compatible with TACOs award-winning Open Water Internal Collapsible Carbon Fiber Outrigger Poles, as well as aluminum or carbon fiber tele-outrigger poles up to 22 feet, offering versatile deployment options.

The mount’s design includes safety detents to prevent uncontrolled rotation during deployment and a locking head that eliminates downward creep of outriggers. It is engineered for easy installation with mounting hardware included, fitting hardtops up to 4.5 inches thick, and matches industry-standard hole patterns for seamless compatibility with other outrigger systems. The GS-300XL provides a controlled 180-degree rotation if needed, with a sturdy base that maintains stability during operation. Backed by a 3-year limited warranty, this mount offers a dependable, high-performance solution for serious offshore anglers seeking durability, safety, and ease of use.

Features:

• PIN-LOCKING ARM: Underside locking pin connection and no port or starboard designation, lifts to 46.5" for kite fishing and dock clearance, compatible with outrigger poles up to 22 feet, can be used with Outrigger Base Reducer for 1-1/8" poles

• HANDLE: Stainless-steel ergonomic single-hand crank with ball bearing for smooth operation, locks flush into base, offers full torque control and safety during deployment

• MOUNT: Designed for hardtops up to 4.5" thick, constructed from cast stainless steel and machined aluminum for strength and weight savings, includes mounting hardware, matches industry-standard hole patterns, features safety detents for controlled rotation, and is built to handle heavy-duty outrigger poles
