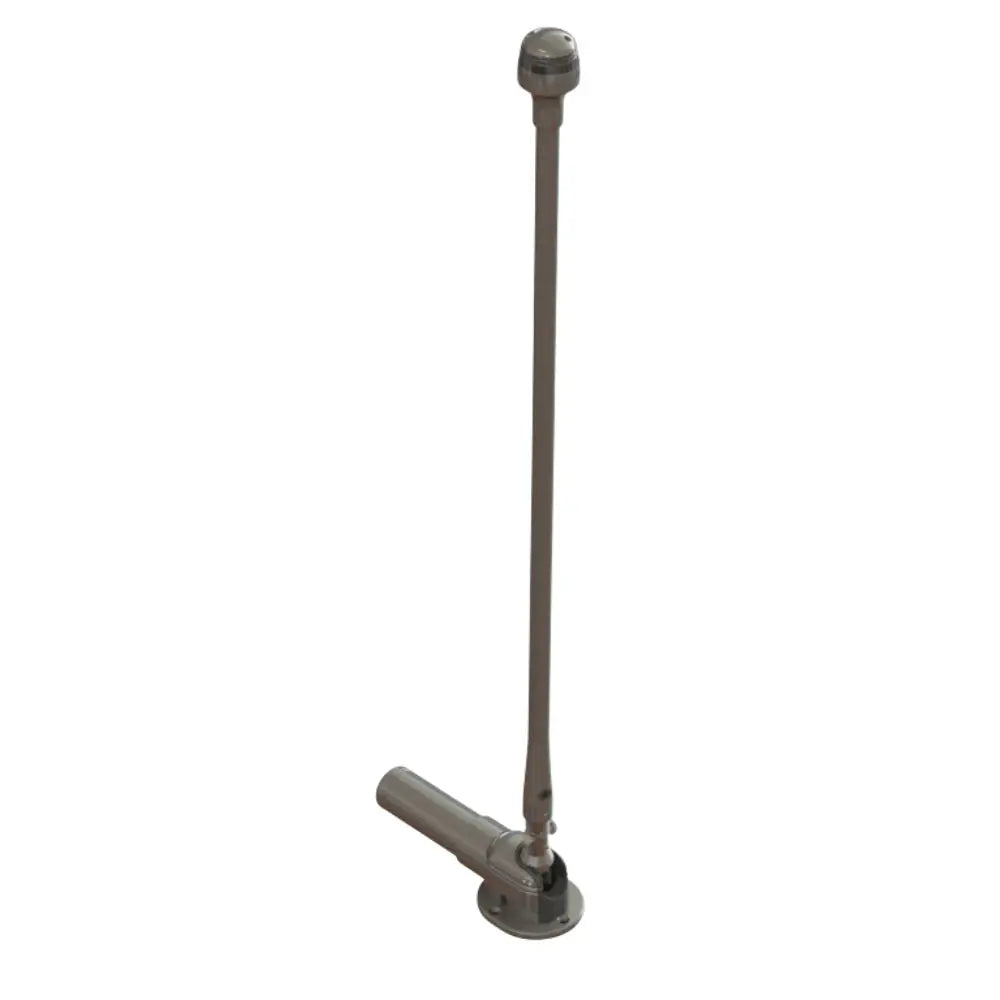

TACO Marine Grand Slam 960 Electric Masthead Anchor Light - USCG 3-NM Visibility Certified

Grand Slam 960 Electric Masthead Anchor Light

The Grand Slam 960 Electric Masthead Anchor Light offers enhanced safety, durability, and style. Building on the success of the GS-950, the Grand Slam 960 features a durable stainless-steel body and a Type 316L stainless-steel breakaway pin for superior weather resistance. It incorporates a new stainless-steel anti-backlash linear screw drive for added durability. The oblong design accommodates a longer, more powerful motor for excellent performance at sea. Suitable for powered vessels up to 39 (12 meters), the GS-960 meets the USCGs 3 nautical mile visibility requirement. Boaters can easily adjust their Masthead Anchor Light from the deck with a push-button operation, thanks to the auto-rotating stop feature and manual stop option. This fully electric unit has a hidden base wire inside the hardtop, which easily installs to the tops surface. It has the same hole pattern as the GS-950, making upgrades possible, and fits all top thicknesses. The GS-960 lights run on 12 volts and consist of four 3-watt LED Cree chips driven by two Mean Well drivers.

Features:

• Certified for USCG-required 3-nm
• Meets NMMA/ABYC C-5 5.8 Standards requirements
• NMMA Type Accepted Approved Product
• Includes heavy-duty anodized aluminum tube, light and 6 lead of 20-gauge wire from the base
• Reliable long-life LEDs
• 5-watt Stern Light and 10-watt Anchor
• Low-draw, 0.6 amps per light
• Electronic Control Module (ECM) features an industry-standard On-Off-On control switch
• ECM includes a 5A fuse for device protection
• Comes with a 12 wire lead and water-sealed Deutsch connector, using 18-gauge wire from the base
• Operates on 12-volt DC for lift and descent
• No under-mount clearance needed
• Polished stainless-steel body with a mirrored finish
• Stainless-steel threaded screw drive ensures smooth lift and descent
• High-torque, anti-backlash ball-bearing motor
• Oil-lite bronze bushings for smooth operation
• The integrated nylon knob on the stainless-steel breakaway pin allows for manual operation in case of power failure
• 1-year limited warranty

Specifications:

• Weight: 7.2 lbs
• UoM: Each
• CoO: USA
• Finish: VEL

The TACO Marine Grand Slam 960 Electric Masthead Anchor Light is designed to enhance safety, durability, and style on powered vessels up to 39 feet. Featuring a polished stainless-steel body and a Type 316L stainless-steel breakaway pin, this anchor light offers superior weather resistance and long-lasting performance. Its oblong design accommodates a more powerful motor, ensuring reliable operation at sea. The GS-960 meets US Coast Guard requirements for 3 nautical mile visibility and complies with NMMA/ABYC C-5 5.8 standards, making it an ideal choice for serious boaters. The light operates on 12 volts DC and uses four 3-watt LED Cree chips powered by two industry-standard Mean Well drivers, providing bright and dependable illumination. The easy-to-use push-button control features auto-rotating and manual stop options, allowing deck-side adjustments that enhance convenience and safety during navigation. The fully electric unit includes a hidden base wire within the hardtop for seamless installation, compatible with existing GS-950 hole patterns for upgrade flexibility. Constructed with a heavy-duty anodized aluminum tube and a stainless-steel threaded screw drive, the GS-960 ensures smooth operation and durability in harsh marine environments. Its high-torque, anti-backlash ball-bearing motor, combined with oil-lite bronze bushings, provides reliable performance and long service life. Additionally, the integrated nylon knob on the stainless-steel breakaway pin offers manual operation in case of power failure. Designed for simplicity and longevity, this anchor light also features a water-sealed Deutsch connector and an 18-gauge wire lead for secure electrical connections. Weighing approximately 7.2 pounds, the GS-960 is a robust and dependable lighting solution for serious boaters seeking compliance, safety, and ease of use in marine navigation lighting.

Features:

• Certified for USCG-required 3-nautical mile visibility

• Meets NMMA/ABYC C-5 5.8 standards requirements

• NMMA Type Accepted and Approved Product

• Includes heavy-duty anodized aluminum tube, light, and 6-foot lead of 20-gauge wire

• Reliable long-life LEDs for consistent brightness

• High-power 5-watt stern light and 10-watt anchor light capabilities

• Low power consumption of 0.6 amps per light

• Electronic Control Module (ECM) with industry-standard On-Off-On switch

• ECM includes a 5A fuse for device protection

• s a 12-wire lead with water-sealed Deutsch connector and 18-gauge wire

• Operates on 12-volt DC power for lift and descent functions

• No under-mount clearance required for installation

• Polished stainless-steel body with a mirror finish for corrosion resistance

• Stainless-steel threaded screw drive ensures smooth operation

• High-torque, anti-backlash ball-bearing motor for durability

• Oil-lite bronze bushings for smooth, quiet operation

• Manual operation possible via integrated nylon knob on breakaway pin

• Includes a 1-year limited warranty for peace of mind
