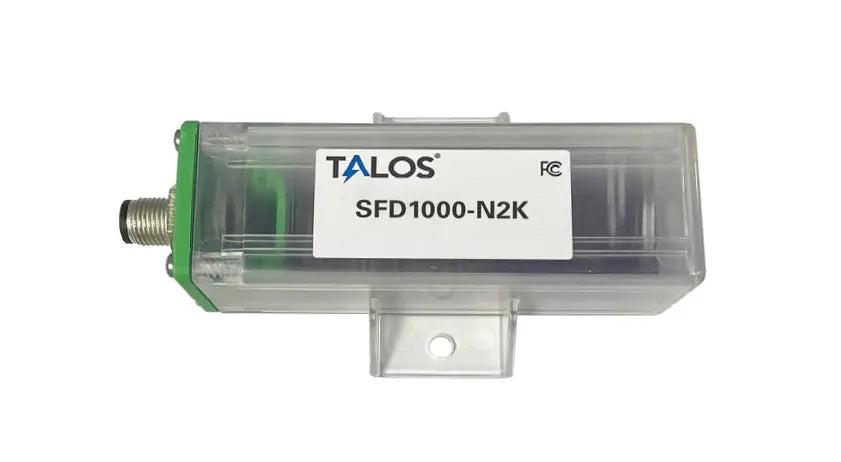

Talos SFD-1000-N2K Motion Lightning Detector NMEA2000 Compliant

Talos SFD-1000-N2K Motion Lightning Detector NMEA2000 Compliant

Talos SFD-1000-N2K Motion Lightning Detector

• Detects Lightning Up to 25 Mile Range


• Plug and Play Connectivity


• Alerts Givien via NMEA 2000 Digital Network


• Same Technology Used in Expensive Weather Stations


• 3 Different Alert Messages Indicate the Distance (approaching or departing) of the Storm Front 25 NM, 10 NM, 5 NM


• All Clear Message After 30 Minutes of No Lightning Strikes


• Low Cost, Compact Design, High Accuracy


• IP-67 Waterproof


• Low Power Consumption

Designed for OEM customized applications and boat builds, the SFD-1000-N2K utilizes a proprietary, patent-pending, compact design. The unit connects directly to the NMEA 2000 network, with plug and play connectivity and alerts are seen directly on the multi-functional displays (MFDs).

The TALOS Remote Lightning Detector alerts you to approaching or departing storm fronts and lightning by sensing the distance from the lightning strikes that are occurring in the area. The unit sends alerts via the digital NMEA 2000 network and those alerts show on the boat’s multi-functionaldisplays (MFDs). The alerts display the distance at which the lightning was detected. Audible and visual alerts make you aware of potentially life-threatening and electronic equipment damaging lightning, elevating your situation awareness and providing you with time to seek safety.

Operating Temperatures
-20 to 80 ° C (-4 to 176 ° F)

Reverse Polarity Protection
Yes

Imput

Supply Voltage
6-30 VDC

Current (listening mode)
400 micro Amps

Current (detecting mode)
4.5mA

Electrical Connections
Power received from NMEA 2000 CAN bus.
