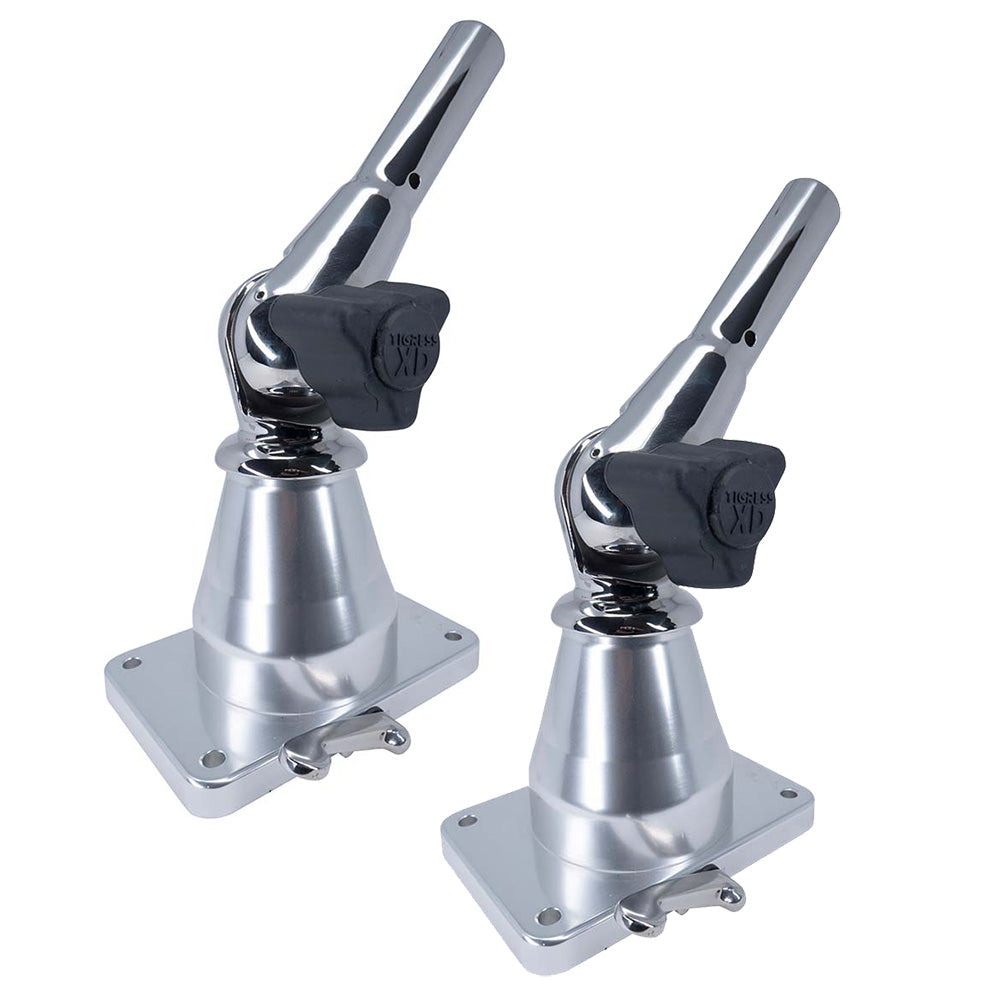

Tigress XD Bay Series Top Mount Pair for Sport Fishing Boats up to 40 ft - Part 88870

XD Bay Series Top Mount - Pair

Features:

• For use on sport fishing boats up to 40 feet
• Accepts all Tigress XD 1-1/8 butt diameter Outriggers
• 19 upper-arm angle/locking (@10 deg.) using Tigress XD 316L Stainless Steel tooth locking design with horizontal stops for Trailering and bridges
• Large 3-lobe UV ergonomic knob for changing and locking the outriggers elevation
• 24 adjustable/locking system positions (15-degree increments) featuring Tigress XD 316L Stainless Steel locking design with HD Spring return
• User-friendly Side Operating Lever
• Large XD Aluminum 14.5mm thick baseplate with four corner mounting
• 5/16 through x 3.000 x 5.000 4-bolt pattern
• Fits Tigress and other industry-standard 4 x 6 mounting plates (four 5/16 diameter fasteners)
• Extreme-duty 316L Stainless Steel and anodized aluminum and fully sealed construction with UV protection
• Ambidextrous mounting option to accommodate the side that the tri-lobe knob is positioned on
• 3-Year Limited Warranty

*Two top mounts included

The Tigress XD Bay Series Top Mount Pair is designed specifically for sport fishing boats up to 40 feet, providing a reliable and durable mounting solution for outriggers. Crafted from high-quality 316L stainless steel and anodized aluminum, these mounts are built to withstand harsh marine environments while offering corrosion resistance and longevity. The large 14.5mm thick XD aluminum baseplate with four corner mounting ensures secure attachment, while the ambidextrous mounting option allows for versatile installation depending on the boat's configuration.
The mounts feature a user-friendly side operating lever for quick adjustments and a large UV-protected ergonomic knob for easy elevation locking. With 24 adjustable and lockable positions in 15-degree increments, these mounts provide precise control over outrigger positioning, ideal for complex fishing setups. The 19-degree upper-arm angle/locking mechanism utilizes Tigress XD's stainless steel tooth locking design with horizontal stops, ensuring stability during trailering and bridge crossings.
Compatibility with all Tigress XD 1-1/8 inch butt diameter outriggers makes these mounts versatile for various industry-standard equipment. The inclusion of two top mounts simplifies installation, while the robust four-bolt pattern ensures a secure fit on most mounting plates. Fully sealed with UV protection, these mounts are designed for durability and long-term performance. Backed by a 3-year limited warranty, the Tigress XD Bay Series Top Mount Pair offers a combination of strength, ease of use, and flexibility for serious anglers seeking dependable outrigger mounting solutions.

Features:

• Designed for sport fishing boats up to 40 feet in length

• Accepts all Tigress XD 1-1/8 inch butt diameter outriggers

• 19-degree upper-arm angle/locking with stainless steel tooth design and horizontal stops

• Large 3-lobe UV-resistant ergonomic knob for elevation locking

• 24 adjustable and lockable positions in 15-degree increments

• User-friendly side operating lever for quick adjustments

• Large 14.5mm thick aluminum baseplate with four corner mounting

• Compatible with industry-standard 4 x 6 mounting plates using four 5/16-inch fasteners

• Constructed from extreme-duty 316L stainless steel and anodized aluminum

• Fully sealed with UV protection for marine environment durability

• Ambidextrous mounting option for versatile installation

• Includes two top mounts for easy setup

• Backed by a 3-year limited warranty
