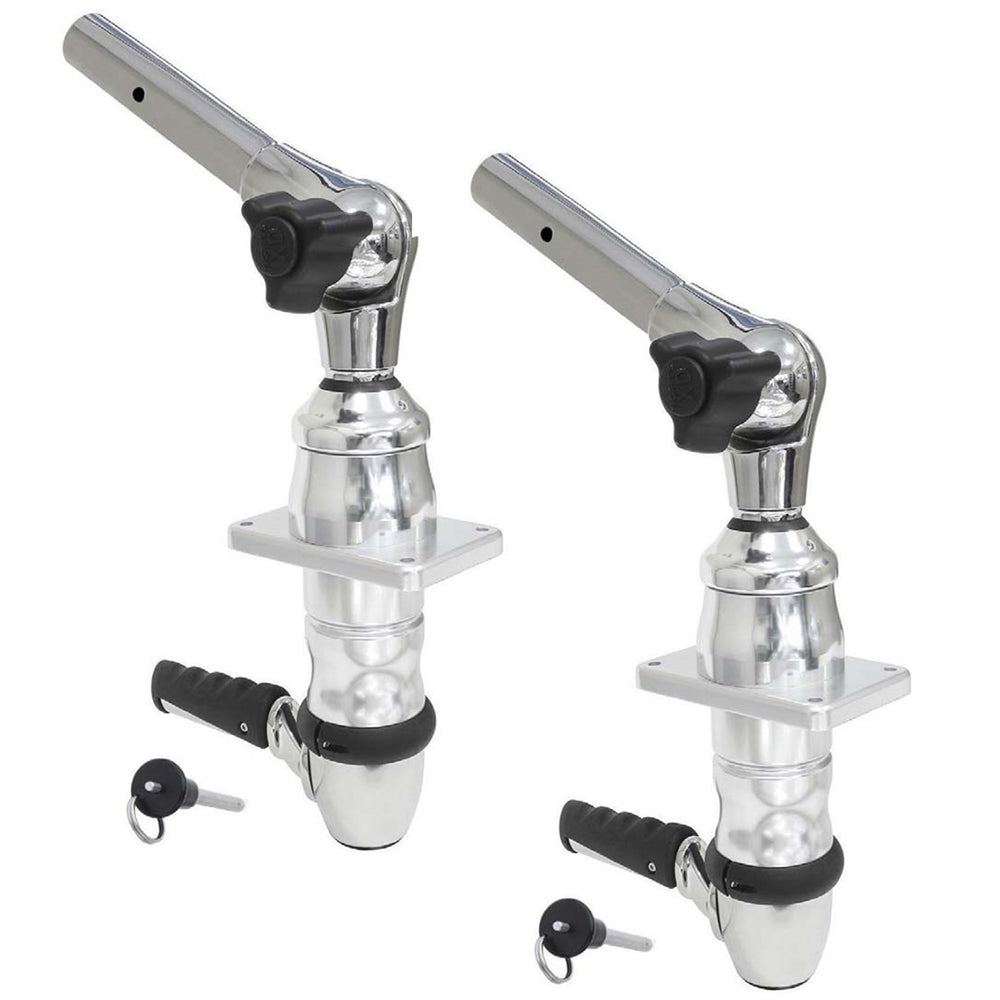

Tigress XD Top Mount for Sport Fishing Boats up to 40 Feet by Tigress Part 88850

XD Top Mount

For use on sport fishing boats up to 40 feet.

Features:

• Unique invertible Tigress handle design for use on both soft and hard tops over 2 thick
• Accepts all Tigress XD 1-1/2 butt diameter outriggers and XD 1-1/8 butts using adapter
• Fits Tigress and other industry standard 4 x 6 mounting plates (four 5/16 diameter fasteners)
• Extreme-duty 316 Stainless Steel and anodized aluminum and sealed construction with UV protection
• 24 adjustable/locking system positions (15 increments) featuring Tigress XD 316 Stainless Steel design
• 19 upper-arm angle/locking positions (10 increments) using Tigress XD 316 Stainless Steel detent design with ambidextrous horizontal stops
• Tigress XD 316 Stainless Steel detent design with ambidextrous horizontal stops
• Large 3-lobe UV ergonomic knob with integral detent feature when changing outrigger elevation
• Ergonomic 316 Stainless Steel mirror-polished lever design with inverting ability for extra hand clearance on the thickest tops.
• User friendly underside lever actuation, with 8 optional indexable set-up positions
• Standard diameter locking stainless steel push-in-pin for outriggers
• Fits through all standard 3 diameter mounting plates and hard top holes
• Sold as pair
• 3-Year Limited Warranty

The Tigress XD Top Mount is designed specifically for sport fishing boats up to 40 feet, offering a robust and versatile outrigger mounting solution. Crafted from extreme-duty 316 stainless steel and anodized aluminum, this mount provides durability and resistance to harsh marine environments. Its sealed construction with UV protection ensures long-lasting performance, even under intense sun exposure. The design includes a unique invertible Tigress handle suitable for use on both soft and hard tops over two inches thick, making it adaptable to various boat configurations. The mount accepts all Tigress XD 1-1/2 inch butt diameter outriggers and XD 1-1/8 inch butts with an included adapter, providing flexibility with existing equipment. It fits industry-standard 4 x 6 mounting plates secured with four 5/16 inch fasteners, ensuring compatibility with most installation setups. The Tigress XD Top Mount features a 24-position adjustable locking system with 15 increments for precise outrigger elevation control, complemented by 19 upper-arm angle positions with 10 increments, allowing anglers to optimize their rigging angles for different fishing conditions. The large UV-resistant ergonomic knob with an integral detent facilitates easy elevation adjustments, while the mirror-polished stainless steel lever offers inverting capability for extra clearance on thick tops. User-friendly underside lever actuation with eight indexable setup positions simplifies operation, making adjustments quick and intuitive. The standard stainless steel push-in pin locks outriggers securely in place, and the mount is compatible with all standard 3-inch mounting plates and hard top holes. Sold as a pair, the Tigress XD Top Mount is backed by a 3-year limited warranty, ensuring reliable performance for demanding fishing expeditions.

Features:

• Unique invertible Tigress handle design for use on both soft and hard tops over 2 inches thick

• Accepts all Tigress XD 1-1/2 inch butt diameter outriggers and XD 1-1/8 inch butts using an adapter

• Fits industry-standard 4 x 6 mounting plates with four 5/16 inch fasteners

• Constructed from extreme-duty 316 stainless steel and anodized aluminum with sealed, UV-protected design

• 24 adjustable/locking system positions (15 increments) for precise elevation control

• 19 upper-arm angle/locking positions (10 increments) with ambidextrous horizontal stops

• Large UV-resistant ergonomic knob with integral detent for elevation adjustments

• Mirror-polished stainless steel lever with inverting ability for extra clearance

• Underside lever actuation with 8 optional indexable setup positions

• Standard stainless steel push-in-pin for secure outrigger locking

• Compatible with all standard 3-inch mounting plates and hard top holes

• Sold as a pair, backed by a 3-year limited warranty
