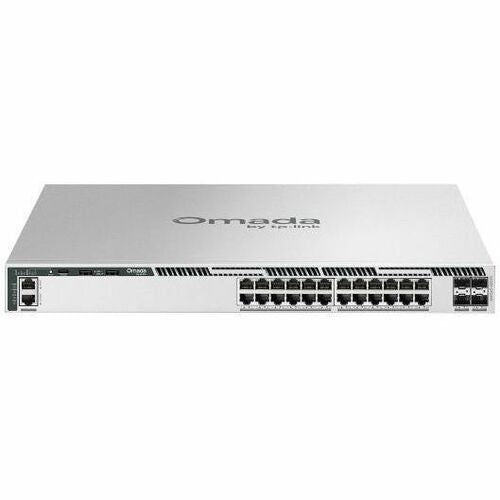

TP-LINK Omada Campus S6500-24G4XF 24-Port Layer 3 Managed Switch with 4 10G SFP+ Slots

Omada Campus 24-Port Gigabit Stackable L3 Managed Switch with 4 10G Slots

The TP-LINK Omada Campus S6500-24G4XF is a versatile and high-performance Ethernet switch designed for enterprise and SMB networks. Featuring 24 Gigabit RJ45 ports and four 10 Gbps SFP+ slots, this switch delivers fast, reliable wired connectivity suitable for demanding network environments. Its physical stacking capability supports up to 12 units, providing enhanced network performance, redundancy, and simplified management for larger deployments. The switch’s impressive switching capacity allows for seamless data flow and low latency, making it an ideal choice for access layer applications requiring high throughput and scalability. The comprehensive Layer 3 routing support, including protocols such as OSPF, BGP, and VRRP, ensures dynamic and resilient network topology management, automatically adapting to network changes and optimizing data paths in complex environments. Security features like MACsec, Secure Boot, RADSEC, IMPB, SFTP, and 802.1X safeguard network traffic against threats, while port security measures prevent unauthorized access. Designed for high availability, the switch incorporates redundant internal power supplies, VRRP, ERPS, and BFD, ensuring continuous operation even in failure scenarios. Maintenance and operation are simplified through support for NETCONF, configuration rollback, hot patching, and precise time synchronization with PTPv2. Management is streamlined via centralized cloud-based control through the Omada system, supporting Zero-Touch Provisioning and intelligent anomaly detection. The switch can also be managed through industry-standard CLI and web GUI, both secured with SSL or SSH encryption, along with SNMP and RMON support for monitoring and event notifications. With its robust feature set, the TP-LINK Omada Campus S6500-24G4XF provides a reliable, scalable, and secure network infrastructure suitable for a wide range of enterprise and ISP deployments, all housed in a rack-mountable form factor for easy integration into existing infrastructure.

Features:

• 24 Gigabit RJ45 ports and 4 10 Gbps SFP+ slots

• Physical stacking for built-in redundancy and performance

• M-LAG improves link reliability from the card level to the device level

• Layer 3 routing protocols: OSPF, BGP, IS-IS, VRF, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, PBR

• Security strategies include MACsec, Secure Boot, RADSEC, IMPB, SFTP, 802.1X, Port Security

• Highly available with two internal fixed power supplies, VRRP, ERPS, and BFD

• Ease of operation and maintenance: NETCONF, configuration rollback, hot patching, RSPAN, PTPv2

• Centralized cloud management via the web or the Omada app
