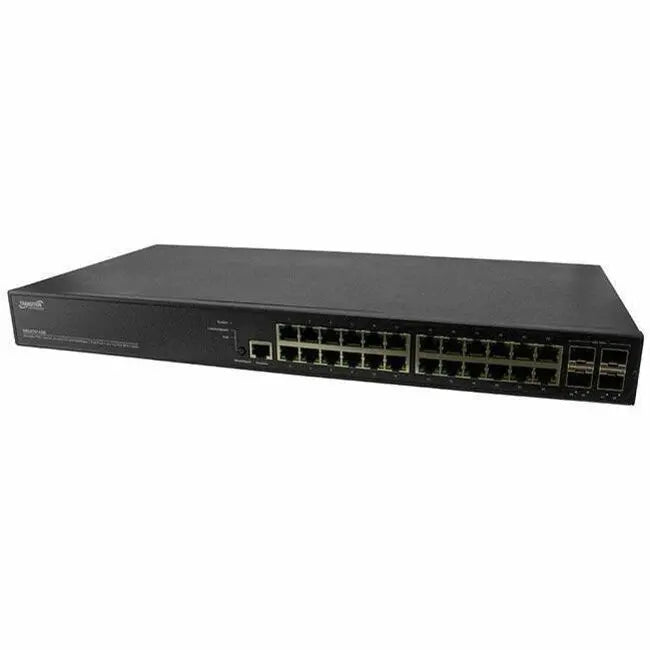

Transition Networks LANTRONIX SM24TAT4XB Managed Gigabit Ethernet PoE+ Switch

Managed Gigabit Ethernet PoE+ Switch 24 10/100/1000Base-T Ports + 4 1G/10GBase-X SFP+ Ports

The Transition Networks LANTRONIX SM24TAT4XB is a high-performance managed Gigabit Ethernet switch designed for enterprise and industrial applications. Featuring twenty-four 10/100/1000 copper ports with Power over Ethernet Plus (PoE+), it delivers reliable power and data connectivity to network devices such as IP cameras, VoIP phones, and wireless access points. The switch also includes four dual-speed 1G/10G SFP+ slots for fiber connections, providing flexible uplink options for high-bandwidth requirements. Its robust feature set ensures efficient network management, security, and scalability in demanding environments.

Equipped with advanced features like support for IPv4 and IPv6 layer 3 static routing, the switch enables seamless integration into existing network infrastructures. It supports multiple spanning tree protocols including IEEE 802.1s MSTP, IEEE 802.1w RSTP, and IEEE 802.1D STP, ensuring network stability and redundancy. The device offers extensive quality of service (QoS) capabilities, with support for 8 hardware queues, strict priority, weighted round robin (WRR), and traffic classification based on DSCP, IEEE 802.1p CoS, and ACLs. These features facilitate prioritization of critical traffic, improving overall network performance.

Network security and multicast management are enhanced through support for IGMP Snooping V1/V2/V3, GVRP, IGMP proxy, and IGMP querier, allowing efficient multicast traffic delivery. MLD snooping V1/V2 ensures IPv6 multicast packages are delivered only to the required receivers, optimizing bandwidth usage. Management options include web GUI, SNMP V1/V2c/V3, Telnet, and CLI, providing administrators with flexible and straightforward control. Additionally, the switch supports IEEE 802.3ad link aggregation (LACP) for up to 26 port groups, enabling increased bandwidth and redundancy for critical links.

Energy efficiency features like IEEE 802.3az and LLDP support help reduce power consumption and facilitate device discovery. The device's ACL support, with up to 512 entries, allows administrators to implement detailed security policies based on MAC addresses, VLAN IDs, IP addresses, protocols, and ports. With a lifetime warranty and a compact design weighing approximately 8.38 pounds, the Transition Networks LANTRONIX SM24TAT4XB provides a reliable, scalable, and secure Ethernet switching solution for demanding network environments.

Features:

• ITU-T G.8031, G8032, loop detection for network stability

• Supports IPv4/IPv6 Layer 3 static routing for flexible network design

• Firmware updates, configuration backup, and restore via web GUI and TFTP for easy management

• Complies with IEEE 802.1s MSTP, IEEE 802.1w RSTP, and IEEE 802.1D STP standards for network redundancy

• Supports 8 hardware queues with strict priority and WRR scheduling, enabling traffic prioritization based on DSCP and IEEE 802.1p CoS

• MLD snooping V1/V2 delivers IPv6 multicast packets only to required receivers for bandwidth efficiency

• Supports IGMP Snooping V1/V2/V3, up to 1024 multicast groups, GVRP, IGMP proxy, and IGMP querier for multicast management

• Web management, SNMP V1/V2c/V3, Telnet, and CLI for comprehensive network control

• Supports IEEE 802.3ad link aggregation (LACP) with up to 26 port groups of 4 ports each for increased bandwidth and redundancy

• IEEE 802.3az Energy Efficient Ethernet reduces power consumption

• LLDP (Link Layer Discovery Protocol) for device discovery and network topology awareness

• ACL support for up to 512 entries, enabling security and traffic control based on MAC addresses, VLANs, IPs, protocols, and ports
