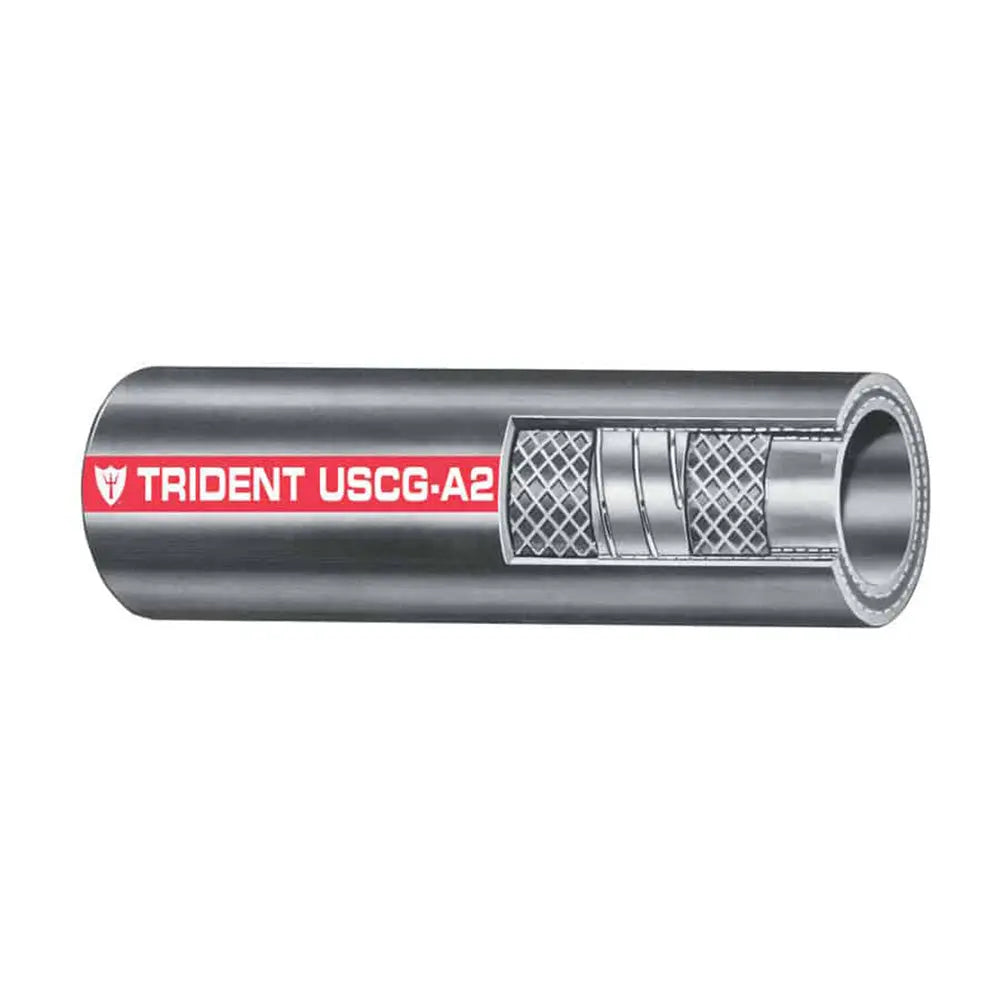

Trident Marine 1-1/2 Inch Type A2 Fuel Fill Hose - Sold by the Foot

1-1/2 Type A2 Fuel Fill Hose - Sold by the Foot

Trident 1-1/2 ID A2 fuel fill hose for gasoline (including ethanol blends) and diesel (including bio diesel blends).

Features:

• Sold by the foot
• This hose is built with the best fuel, fire, and age-resistant formulation
• Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
• Also, provides excellent bend-ability

Applications:

• Marine Fuel Hose for fill and vent plus diesel distribution
• Approved, for all marine fuels including gasoline, alcohol blends, diesel and bio-diesel

Construction:

• Tube Cover: NBR / Neoprene
• Reinforcement: High tenacity polyester 2 spiral, spring steel helix
• Temperature Range: -20F to 212F (-20C to 100C)

Specifications:

• Inner Diameter: (inch) 1-1/2 / (mm) 38
• Outer Diameter: (inch) 2 / (mm) 51
• Wall: (inch) 0.25 / (mm) 6.4
• Working Pressure: (psi) 60 / (mpa) 0.41
• Bend Radius: (inch) 5.5 / (mm) 140

*The #327 series exceeds ABYC H-24 H-33, SAE J1527, ISO 7840, USCG Type A2; and is NMMA Type Accepted, CE certified, and Lloyds Registry Type Approved

The Trident Marine 1-1/2 inch Type A2 fuel fill hose is designed for versatile marine fuel applications, including gasoline, ethanol blends, diesel, and bio-diesel. Crafted with high-quality materials, this hose offers exceptional resistance to aging, fire, extreme temperatures, cold, and ozone exposure, ensuring reliable performance in demanding marine environments. Its construction features a durable NBR / Neoprene tube and cover, reinforced with high tenacity polyester spiral layers and a spring steel helix, providing both strength and flexibility. The hose's excellent bendability makes installation easier in tight spaces without compromising durability or safety. This hose is rated for a working pressure of 60 psi and operates efficiently within a temperature range from -20°F to 212°F, making it suitable for a wide range of marine fueling needs. It is approved and certified under multiple standards, including ABYC H-24, H-33, SAE J1527, ISO 7840, USCG Type A2, NMMA, CE, and Lloyds Registry, ensuring compliance with high safety and quality benchmarks. The outer diameter measures approximately 2 inches, with a wall thickness of 0.25 inches, and it features a bend radius of about 5.5 inches, allowing for smooth routing in confined spaces. Sold by the foot, this hose provides flexibility in length selection to suit your specific marine fueling setup. Whether for fill and vent applications or diesel distribution, the Trident Marine Type A2 fuel fill hose delivers dependable performance with superior resistance to the harsh conditions of marine environments. Please note that this product is non-returnable to the original point of purchase; contact the manufacturer directly for any concerns or issues.

Features:

• Sold by the foot for customizable lengths

• Constructed with fuel, fire, and age-resistant formulation

• Provides excellent resistance to aging, heat, cold, ozone, and fire

• Highly flexible and easy to bend in tight spaces

• Certified and approved under multiple industry standards including ABYC, SAE, ISO, USCG, NMMA, CE, and Lloyds Registry

• Suitable for gasoline, ethanol blends, diesel, and bio-diesel fuels

• Durable reinforcement with high tenacity polyester and spring steel helix

• Temperature range from -20°F to 212°F for versatile use
