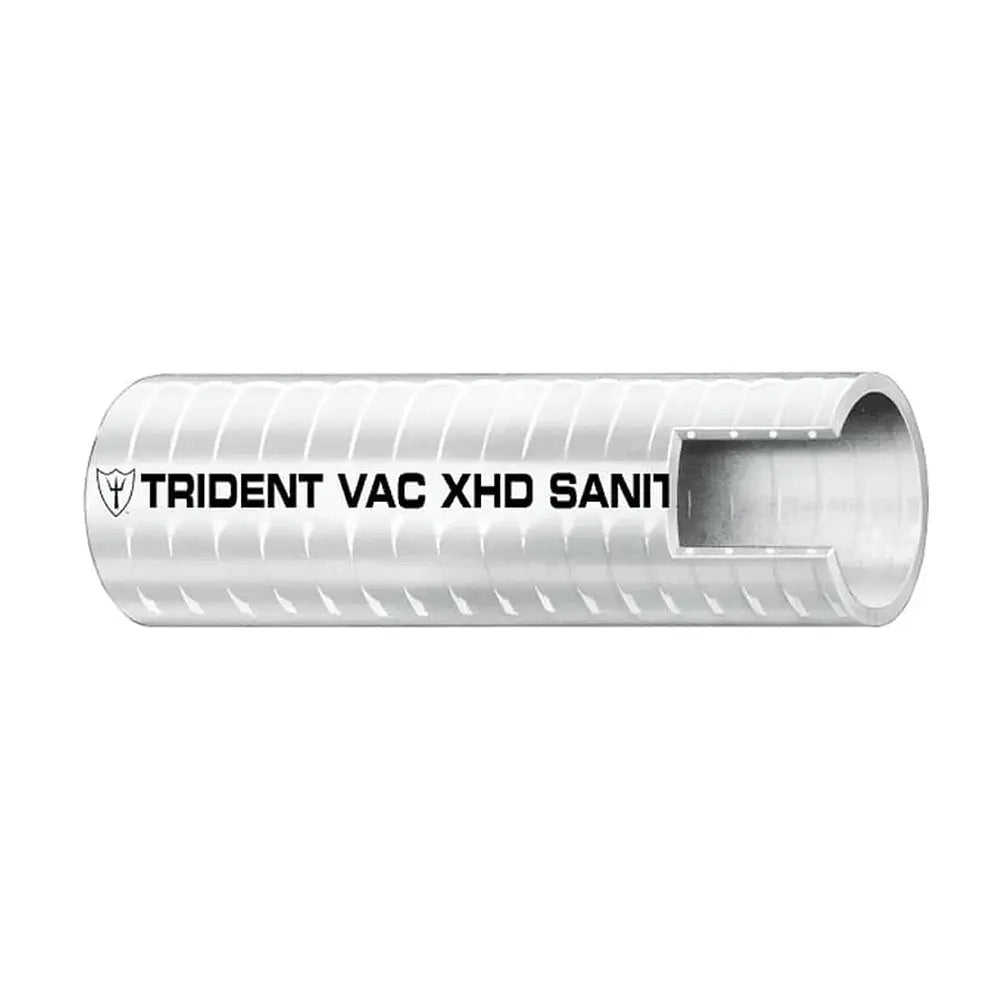

Trident Marine 1-1/2 inch VAC XHD Sanitation Hose with Hard PVC Helix, White, Sold by the Foot

1-1/2" VAC XHD Sanitation Hose - Hard PVC Helix - White - Sold by the Foot

Trident Ply Extra heavy-duty sanitation hose of smooth white vinyl. Specially compounded to provide excellent resistance to odor permeation and (FDA) potable water fill. Also for the critical bilge, drain scuppers, live wells, etc. Self-draining installations are recommended for the longest odor-free service.

Features:

• Sold by the foot
• A hard PVC helix gives good flexibility and bend radius
• No cuffs are required

Applications:

• Specially compounded to provide resistance to odor permeation and (FDA) potable water fill
• Also for critical bilge, drain scupper, live well, etc

Specifications:

• Tube Cover: Hard PVC helix
• Color: White
• Reinforcement: PVC Helix
• Temperature Range: 10F-120F (-12C-48C)
• Inner Diameter: (inch) 1-1/2" / (mm) 38.1
• Outer Diameter: (inch) 1.788" / (mm) 45.4
• Working Pressure: (Psi Vac In./Hg) 28
• Weight: (Lb./ 50 ft.) 22 / (Kg/m) 0.76
• Bend Radius: (inch) 4" / (mm) 102

*Don't use with alcohol, anti-freeze, petrochemicals, or solvents

*Burst Pressure is 4 x Working Pressure

The Trident Marine 1-1/2 inch VAC XHD sanitation hose is designed for demanding marine applications, offering exceptional durability and resistance. Constructed from smooth white vinyl with a hard PVC helix reinforcement, this hose provides excellent flexibility and a tight bend radius, making it suitable for critical bilge, drain scuppers, live wells, and other sanitation needs. Its special formulation ensures resistance to odor permeation and is FDA-approved for potable water fill, ensuring safety and compliance. This hose is sold by the foot, allowing precise customization for your project requirements, and does not require cuffs, simplifying installation and reducing potential leak points. The hard PVC helix reinforcement enhances flexibility while maintaining strength, and the hose's temperature range from 10°F to 120°F ensures reliable performance in various marine environments. With a working pressure of 28 psi vacuum, this hose is designed to handle the rigors of marine sanitation systems. The hose's outer diameter is approximately 1.79 inches, with an inner diameter of 1.5 inches, providing ample flow capacity for most applications. Its lightweight design, at about 0.76 pounds per foot, makes handling and installation easier. The hose features a bend radius of approximately 4 inches, facilitating installation in tight spaces without kinking or damage. Please note that this hose should not be used with alcohol, anti-freeze, petrochemicals, or solvents. Burst pressure is four times the working pressure, ensuring safety margins for critical systems. For optimal longevity and odor-free service, self-draining installations are recommended. Due to manufacturer policies, this product may not be returned to the point of purchase; please contact Trident Marine directly for any issues or concerns.

Features:

• Sold by the foot for custom length requirements

• Hard PVC helix provides flexibility and a tight bend radius

• No cuffs required for installation

• Specially compounded to resist odor permeation and FDA potable water standards

• Suitable for bilge, drain scuppers, live wells, and sanitation systems

• Temperature range: 10°F to 120°F

• Lightweight design at approximately 0.76 pounds per foot

• Burst pressure is four times the working pressure for safety
