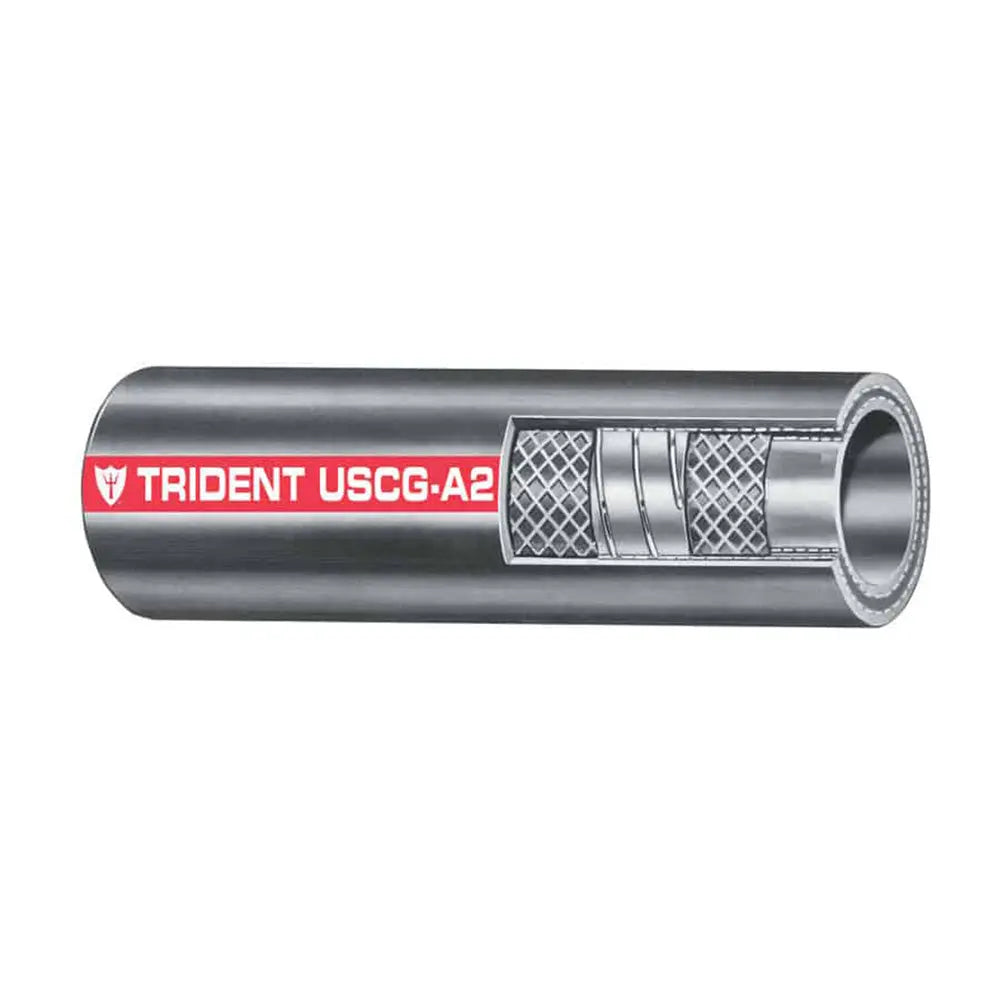

Trident Marine 1-1/2 inch x 50 ft Coil Type A2 Fuel Fill Hose for Marine and Diesel Applications

1-1/2" x 50' Coil Type A2 Fuel Fill Hose

Trident 1-1/2" ID A2 fuel fill hose for gasoline (including ethanol blends) and diesel (including bio diesel blends).

Features:

• This hose is built with the best fuel, fire, and age-resistant formulation
• Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
• Also, provides excellent bend-ability

Application:

• Marine Fuel Hose for fill and vent plus diesel distribution
• Approved, for all marine fuels including gasoline, alcohol blends, diesel and bio-diesel

Construction:

• Tube Cover: NBR / Neoprene
• Reinforcement: High tenacity polyester 2 spiral, spring steel helix
• Temperature Range: -20F to 212F (-20C to 100C)
• Length: 50 ft. (15.24 m) Coil

Specifications:

• Inner Diameter: (inch) 1/2" / (mm) 38
• Outer Diameter: (inch) 2 / (mm) 51
• Wall: (inch) 0.25 / (mm) 6.4
• Working Pressure: (psi) 60 / (mpa) 0.41
• Bend Radius: (inch) 5.5" / (mm) 140

*The #327 series exceeds ABYC H-24 H-33, SAE J1527, ISO 7840, USCG Type A2; and is NMMA Type Accepted, CE certified, and Lloyds Registry Type Approved

The Trident Marine 1-1/2 inch x 50 ft Coil Type A2 Fuel Fill Hose is engineered for reliable fuel transfer in marine and diesel applications. Made to handle gasoline, including ethanol blends, as well as diesel and bio-diesel fuels, this hose provides a durable solution for fill and vent purposes on boats and other marine vessels. Its construction features a tube and cover made from NBR/neoprene, ensuring resistance to fuel, fire, ozone, and aging, which extends the lifespan and maintains performance under demanding conditions. Reinforced with high tenacity polyester spirals and a spring steel helix, this hose offers excellent flexibility and structural integrity, making it suitable for various marine fueling needs. The hose operates within a temperature range from -20°F to 212°F, allowing it to perform reliably across different environmental conditions. With an inner diameter of ½ inch and an outer diameter of 2 inches, it features a wall thickness of approximately ¼ inch, supporting a working pressure of 60 psi. Its bend radius is designed at 5.5 inches, facilitating easy installation in tight spaces without compromising flow. The hose complies with industry standards such as ABYC H-24, H-33, SAE J1527, ISO 7840, and USCG Type A2, and holds NMMA Type Acceptance, CE certification, and Lloyds Registry approval, ensuring safety and compliance for marine fuel systems. Whether used for diesel distribution or fuel fill and venting, this coil offers flexibility, durability, and peace of mind for marine fuel handling requirements. Its 50-foot length provides ample reach for various vessel configurations, making it a versatile addition to any marine fuel system setup.

Features:

• Constructed with fuel, fire, and age-resistant formulation for longevity

• Provides excellent resistance to aging, fire, heat, cold, and ozone exposure

• Offers high flexibility for easy installation and routing
