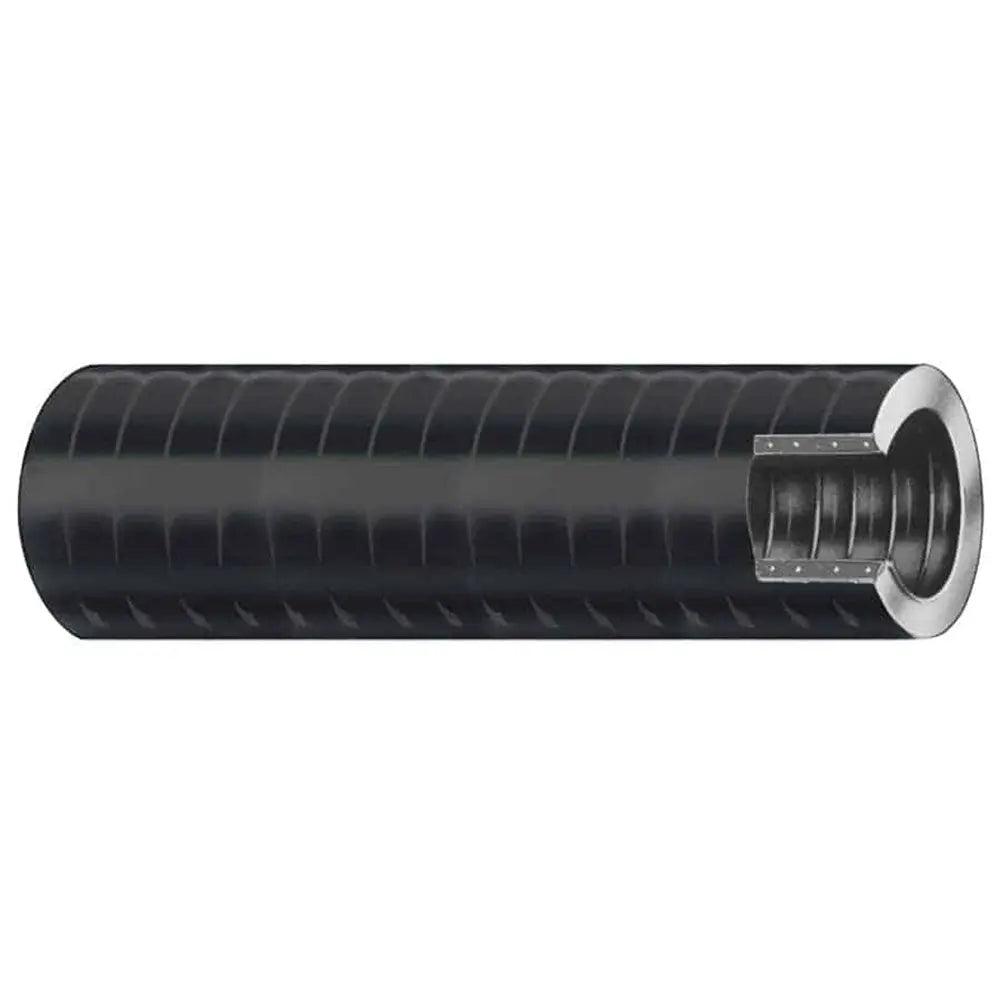

Trident Marine 1-1/8 inch VAC XHD Bilge and Live Well Hose - Hard PVC Helix, Black, Sold by the Foot

1-1/8" VAC XHD Bilge Live Well Hose - Hard PVC Helix - Black - Sold by the foot

Trident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.

Features:

• Sold by the foot
• 149 series of hoses is extra flexible

Application:

• Bilge and live well hose

Specifications:

• Tube Cover: Hard PVC helix
• Color: Black
• Reinforcement: PVC Helix
• Temperature Range: 10F-120F (-12C-48C)
• Inner Diameter: (inch) 1-1/8" / (mm) 28.6
• Outer Diameter: (inch) 1.433" / (mm) 36.4
• Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93
• Weight: (Lb./ 50 ft.) 15 / (Kg/m) 6.80
• Bend Radius: (inch) 3" / (mm) 76.2

*Burst Pressure is 4 x Working Pressure

The Trident Marine 1-1/8 inch VAC XHD Bilge and Live Well Hose is designed for heavy-duty marine applications, ensuring reliable performance in bilge and live well systems. Constructed with a durable hard PVC helix, this hose provides exceptional flexibility and a tight bend radius, making installation straightforward even in confined spaces. Its smooth outer surface facilitates easy clamping, reducing installation time and effort. The PVC helix reinforcement maintains its shape under pressure, offering consistent flow and durability in demanding marine environments. Suitable for temperatures ranging from 10°F to 120°F (-12°C to 48°C), this hose is built to withstand the rigors of marine use while maintaining flexibility and strength.

Features:

• Sold by the foot for customizable lengths

• Extra flexible 149 series design for easy installation

• Hard PVC helix reinforcement for durability

• Smooth outer surface for easy clamping

• Suitable for bilge and live well applications

• Temperature tolerance from 10°F to 120°F (-12°C to 48°C)

• Bend radius of 3 inches for flexible routing

• Burst pressure four times the working pressure for safety
