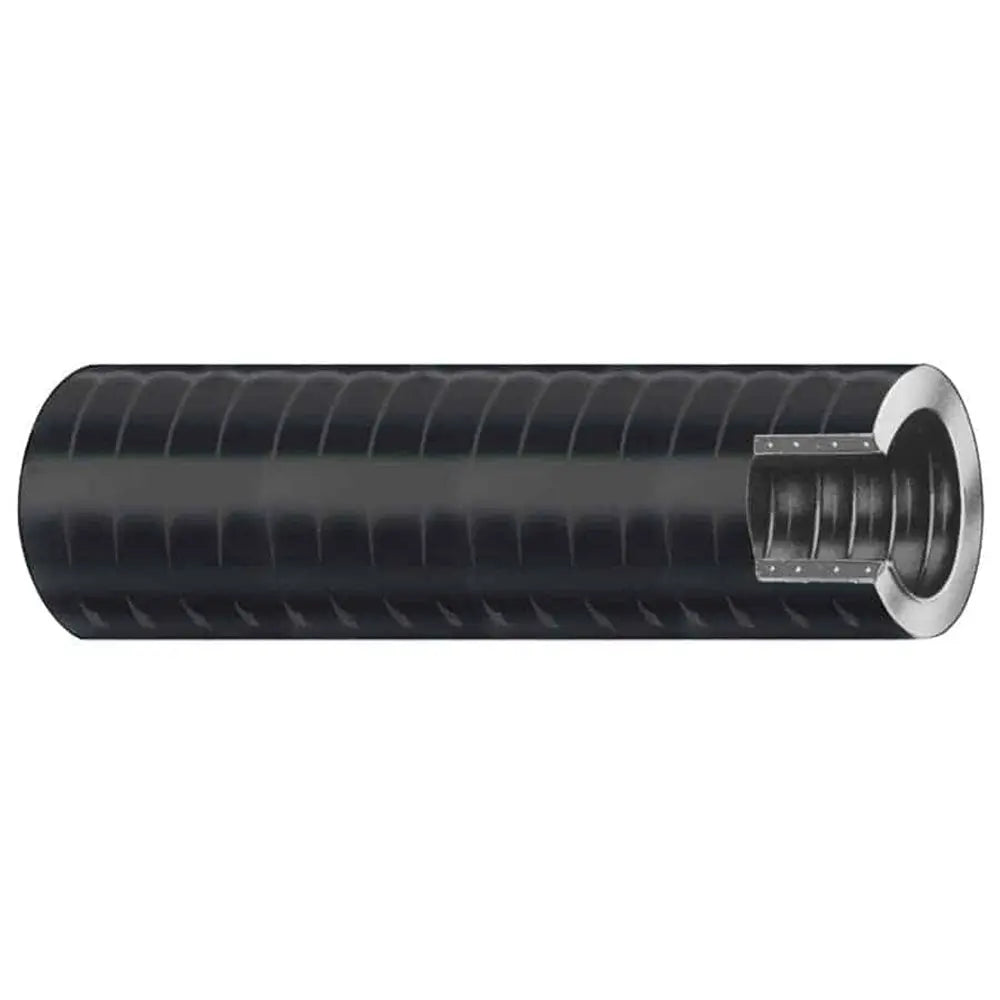

Trident Marine 1-1/8 inch x 50 ft VAC XHD Bilge and Live Well Hose with Hard PVC Helix - Black

1-1/8 x 50 VAC XHD Bilge Live Well Hose - Hard PVC Helix - Black

Trident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose, making installations a breeze.

Features:

• 149 series of hoses is extra flexible

Application:

• Bilge and live well hose

Specifications:

• Tube Cover: Hard PVC helix
• Color: Black
• Reinforcement: PVC Helix
• Temperature Range: 10F-120F (-12C-48C)
• Boxed: 50ft. / (15.2m)
• Inner Diameter: (inch) 1-1/8 / (mm) 28.6
• Outer Diameter: (inch) 1.433 / (mm) 36.4
• Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93
• Weight: (Lb./ 50 ft.) 15 / (Kg/m) 6.80
• Bend Radius: (inch) 3 / (mm) 76.2

*Burst Pressure is 4 x Working Pressure

The Trident Marine 149-1186 Bilge and Live Well Hose is designed for demanding marine applications, offering exceptional flexibility and durability. Constructed with a hard PVC helix reinforcement, this hose provides excellent bend radius and ease of installation, making it suitable for both bilge and live well systems. Its smooth outer surface allows for secure clamping and reduces the risk of abrasion, ensuring long-lasting performance in harsh marine environments. The hose's black color and heavy-duty construction make it an ideal choice for professionals seeking a reliable and flexible solution for water transfer tasks aboard boats and ships. Operating efficiently within a temperature range of 10°F to 120°F, this hose maintains flexibility and integrity across varying conditions. The 50-foot length ensures ample reach for various installation needs, while the 1-1/8 inch inner diameter provides a balanced flow rate. Its working pressure of 28 inches of mercury vacuum and 1.93 bar ensures safe operation under typical marine conditions. The hose's lightweight design (approximately 15 pounds per 50 feet) simplifies handling and installation, while its bend radius of 3 inches prevents kinking during use. The burst pressure of four times the working pressure guarantees safety margins for demanding applications, making the Trident Marine hose a dependable choice for marine bilge and live well systems. Whether replacing existing hoses or installing new systems, this product offers durability, flexibility, and ease of use for marine professionals and enthusiasts alike.

Features:

• Extra flexible 149 series hose with PVC helix reinforcement

• Smooth outer surface for easy clamping and installation

• Heavy-duty hard PVC helix tube cover in black

• Operates within a temperature range of 10°F to 120°F

• 50-foot length provides extensive reach for marine installations

• Inner diameter of 1-1/8 inches for balanced flow

• Maximum working vacuum of 28 inches of mercury

• Lightweight design at approximately 15 pounds per 50 feet

• Bend radius of 3 inches prevents kinking during installation

• Burst pressure is four times the working pressure for safety
