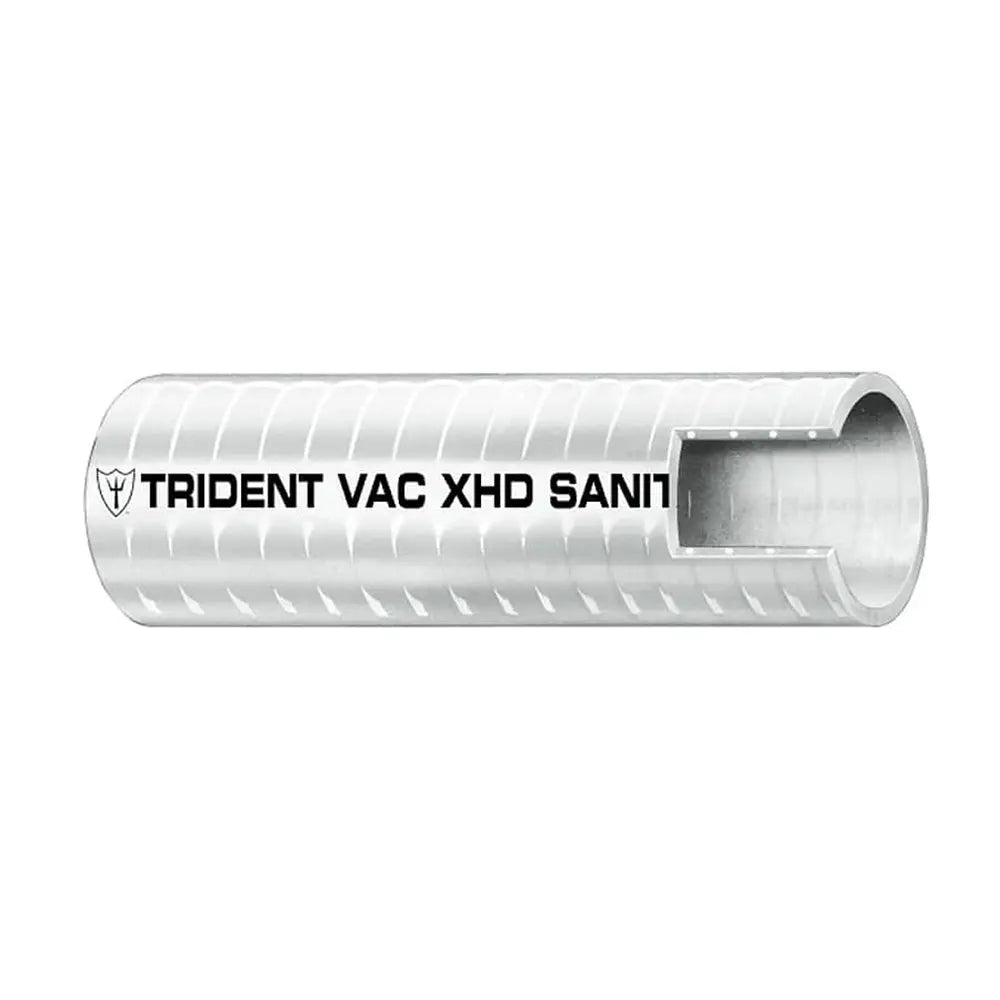

Trident Marine 1-Inch VAC XHD Sanitation Hose with Hard PVC Helix - White, Sold by the Foot

1" VAC XHD Sanitation Hose - Hard PVC Helix - White - Sold by the Foot

Trident Ply Extra heavy-duty sanitation hose of smooth white vinyl. Specially compounded to provide excellent resistance to odor permeation and (FDA) potable water fill. Also for the critical bilge, drain scuppers, live wells, etc. Self-draining installations are recommended for the longest odor-free service.

Features:

• Sold by the foot
• A hard PVC helix gives good flexibility and bend radius
• No cuffs are required

Applications:

• Specially compounded to provide resistance to odor permeation and (FDA) potable water fill
• Also for critical bilge, drain scupper, live well, etc

Specifications:

• Tube Cover: Hard PVC helix
• Color: White
• Reinforcement: PVC Helix
• Temperature Range: 10F-120F (-12C-48C)
• Inner Diameter: (inch) 1" / (mm) 25.4
• Outer Diameter: (inch) 1.262" / (mm) 32.1
• Working Pressure: (Psi Vac In./Hg) 28
• Weight: (Lb./ 50 ft.) 15 / (Kg/m) 0.52
• Bend Radius: (inch) 3" / (mm) 76.2

*Don't use with alcohol, anti-freeze, petrochemicals, or solvents

*Burst Pressure is 4 x Working Pressure

The Trident Marine 1-Inch VAC XHD sanitation hose is designed for heavy-duty marine applications, offering exceptional durability and resistance to odor permeation. Constructed from smooth white vinyl with a hard PVC helix reinforcement, this hose provides a reliable solution for critical systems such as bilge, drain scuppers, and live wells. Its specially compounded material ensures safe contact with potable water, complying with FDA standards, making it suitable for fresh water fill and sanitation needs. The flexible design with a moderate bend radius allows easy installation in tight spaces, while the self-draining feature helps maintain an odor-free environment over extended use. This hose is sold by the foot, allowing customization for various lengths and installation requirements. The PVC helix reinforcement provides added strength and flexibility, making it a versatile choice for demanding marine environments. Designed to operate within a temperature range of 10°F to 120°F, it withstands typical marine conditions without compromising performance. The hose's outer diameter measures approximately 1.26 inches, with an inner diameter of 1 inch, ensuring compatibility with standard fittings and connectors. The working pressure of 28 inches of mercury or water column ensures safe operation under typical conditions, and the burst pressure is four times the working pressure for added safety margin. Precautionary notes include avoiding contact with alcohol, antifreeze, petrochemicals, or solvents, which could degrade the material. Overall, the Trident Marine VAC XHD sanitation hose offers a durable, odor-resistant, and easy-to-install solution for marine sanitation and drainage systems, backed by trusted brand quality and engineered for long-lasting performance in demanding marine environments.

Features:

• Sold by the foot for customizable lengths

• Hard PVC helix reinforcement provides flexibility and strength

• No cuffs required for installation

• Specially compounded for odor resistance and FDA potable water compliance

• Suitable for bilge, drain scuppers, live wells, and sanitation systems

• Operates effectively within a temperature range of 10°F to 120°F

• Outer diameter approximately 1.26 inches, inner diameter 1 inch

• Designed with a safety burst pressure four times the working pressure

• Resistant to typical marine chemicals but should not be used with alcohol, antifreeze, petrochemicals, or solvents
