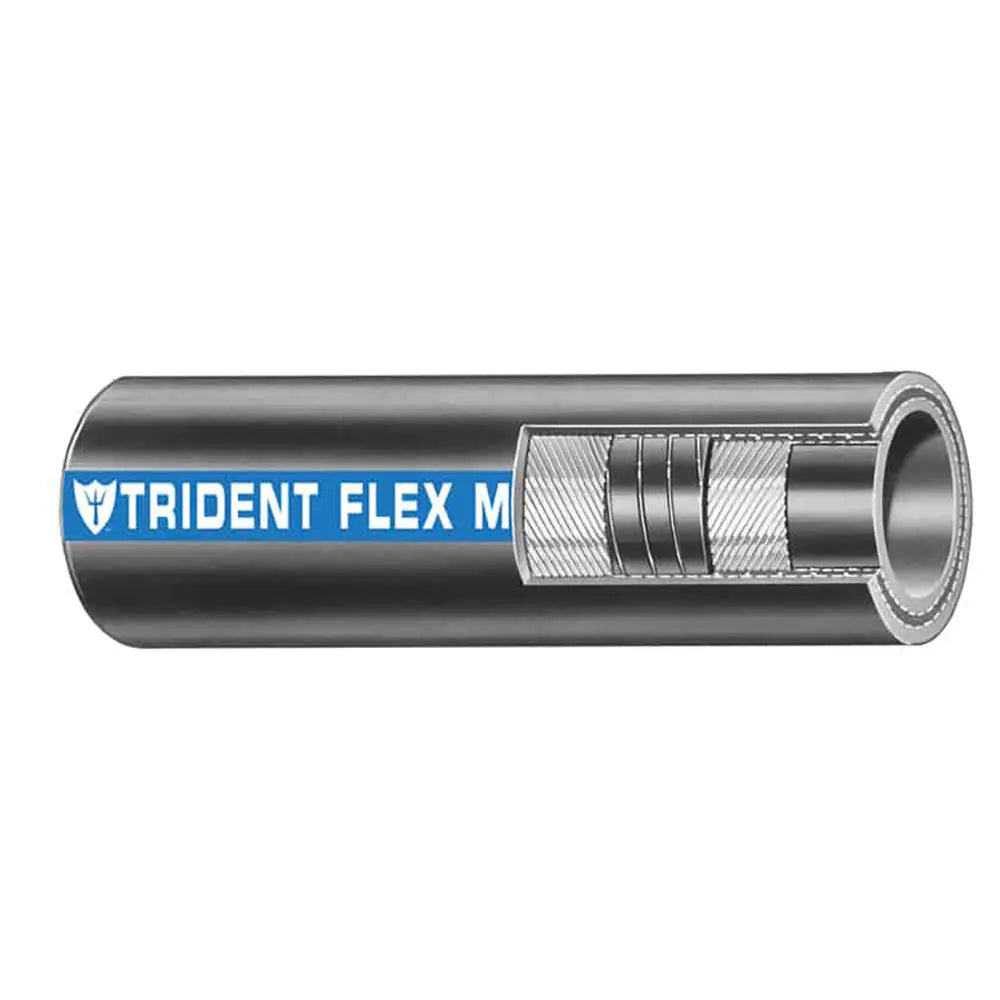

Trident Marine 1 Inch x 50 Feet Coil Flex Wet Exhaust and Water Hose - Black

1" x 50' Coil Flex Marine Wet Exhaust Water Hose - Black

Trident Flex wet exhaust hose for longer bent connections. In smaller I.D.s for engine intake, critical water, drain, scupper bilge sanitation uses. Resists heat, ozone, exhaust, panting, and collapse. Black High Temp EDPM Rubber 250F (121C) Max.

Features:

• Extra heavy tube and cover with wire helix between 2 ply reinforcement provides excellent flexibility and bend radius
• Resists heat, ozone, exhaust, sani chemicals, panting and collapse
• Exceeds SAE J2006-R2, ABYC NMMA P-1 exhaust standards, and Lloyds Registry Type Approved

Application:

• Trident Flex wet exhaust hose for longer bent connections
• In smaller I.D.s for engine intake, critical water, drain, scupper bilge sanitation uses

Construction:

• Tube Cover: High temp EDPM rubber
• Color: Black with blue stripe
• Reinforcement: Multi-ply, high-tenacity polyester, steel helix
• Temperature Range: 250F (121C)
• Length: 50 (15.24m)

Specifications:

• Inner Diameter: (inch) 1" / (mm) 25.4
• Outer Diameter: (inch) 1.57" / (mm) 25
• Working Pressure: (Psi) 80 / (bar) 5.5
• Bend Radius: (inch) 1.3" / (mm) 33
• Weight: (Lb./50ft.) 30 / (Kg/m) 13.5

*Burst Pressure is 4 x Working Pressure

The Trident Marine Part Number 100-1006 is a versatile and durable wet exhaust and water hose designed for marine applications. Crafted from high-temp EPDM rubber, this hose features a black color with a distinctive blue stripe, ensuring both durability and visibility. Its construction includes a multi-ply reinforcement of high-tenacity polyester with a steel helix, providing excellent flexibility and bend radius for tight and long-bent connections. This hose is rated to withstand temperatures up to 250°F (121°C), making it suitable for critical engine intake, water, drain, and sanitation uses on boats and yachts. Designed to resist heat, ozone, exhaust gases, sanitation chemicals, and panting, it surpasses standards set by SAE J2006-R2, ABYC, NMMA P-1, and Lloyd’s Registry, ensuring reliable performance in demanding marine environments. Measuring 1 inch in inner diameter and approximately 1.57 inches outer diameter, the hose extends up to 50 feet in length, offering ample reach for various marine plumbing needs. Its working pressure is rated at 80 psi (5.5 bar), with a burst pressure four times the working pressure for added safety. This hose's robust construction and high-quality materials make it an ideal choice for longer bent connections, engine intake, bilge sanitation, and other critical water management functions on boats. Its lightweight design, weighing approximately 30 pounds per 50 feet, allows for easy handling and installation, while its engineered flexibility ensures minimal kinking and collapse during use. Whether for new installations or replacements, the Trident Marine coil flex hose provides a reliable, compliant, and high-performance solution for marine wet exhaust and water transfer applications.

Features:

• Extra heavy tube and cover with wire helix and two-ply reinforcement for excellent flexibility and bend radius

• Resists heat, ozone, exhaust gases, sanitation chemicals, panting, and collapse

• Exceeds SAE J2006-R2, ABYC, NMMA P-1 exhaust standards, and Lloyd’s Registry Type Approved
