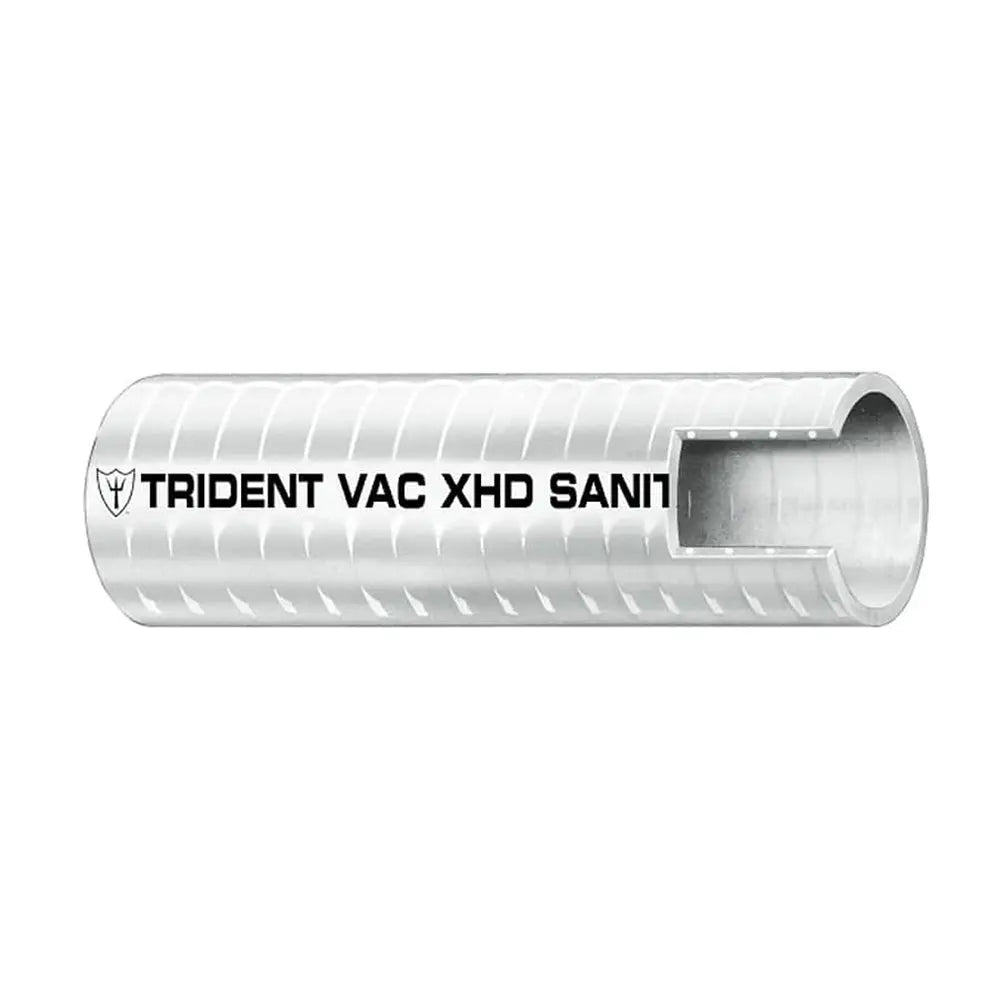

Trident Marine 1-inch x 50-foot VAC XHD Sanitation Hose with Hard PVC Helix, White

1" x 50' Box VAC XHD Sanitation Hose - Hard PVC Helix - White

Trident Ply Extra heavy-duty sanitation hose of smooth white vinyl. Specially compounded to provide excellent resistance to odor permeation and (FDA) potable water fill. Also for the critical bilge, drain scuppers, live wells, etc. Self-draining installations are recommended for the longest odor-free service.

Features:

• A hard PVC helix gives good flexibility and bend radius
• No cuffs are required

Application:

• Specially compounded to provide resistance to odor permeation and (FDA) potable water fill
• Also for critical bilge, drain scupper, live well, etc

Specifications:

• Tube Cover: Hard PVC helix
• Color: White
• Reinforcement: PVC Helix
• Temperature Range: 10F-120F (-12C-48C)
• Boxed: 50ft. / (15.2m)
• Inner Diameter: (inch) 1" / (mm) 25.4
• Outer Diameter: (inch) 1.262" / (mm) 32.1
• Working Pressure: (Psi Vac In./Hg) 28
• Weight: (Lb./ 50 ft.) 15 / (Kg/m) 0.52
• Bend Radius: (inch) 3" / (mm) 76.2

*Don't use with alcohol, anti-freeze, petrochemicals, or solvents

*Burst Pressure is 4 x Working Pressure

The Trident Marine Part Number 148-1006 VAC XHD sanitation hose is designed for demanding marine sanitation applications. Crafted from smooth white vinyl with a durable hard PVC helix reinforcement, this hose offers excellent flexibility and a tight bend radius, ensuring easy installation in confined spaces. Its special compounded material provides high resistance to odor permeation, making it ideal for potable water fill and sanitation tasks on boats and ships. The hose’s construction is suitable for critical bilge, drain scupper, and live well use, with self-draining features recommended for long-lasting odor-free service. With a working pressure of 28 psi, this hose is built to handle various marine environments while maintaining performance within a temperature range of 10°F to 120°F, ensuring reliable operation across different conditions. The 50-foot boxed length allows for versatile installation and customization, while the white color enhances visibility and cleanliness in marine settings. The hose’s inner diameter of 1 inch and outer diameter of approximately 1.262 inches provide a snug fit for marine fittings, and the bend radius of 3 inches facilitates routing around obstacles. Please note that this hose is not suitable for use with alcohol, anti-freeze, petrochemicals, or solvents. The burst pressure is four times the working pressure, ensuring safety margins during operation. Overall, the Trident Marine VAC XHD sanitation hose combines durability, flexibility, and resistance to odors, making it a dependable choice for marine sanitation and bilge applications.

Features:

• Hard PVC helix provides good flexibility and a tight bend radius

• No cuffs required for installation

• Specially compounded to resist odor permeation and support potable water fill

• Ideal for bilge, drain scuppers, live wells, and sanitation systems

• Temperature range from 10°F to 120°F (-12°C to 48°C)

• Burst pressure is four times the working pressure for added safety
