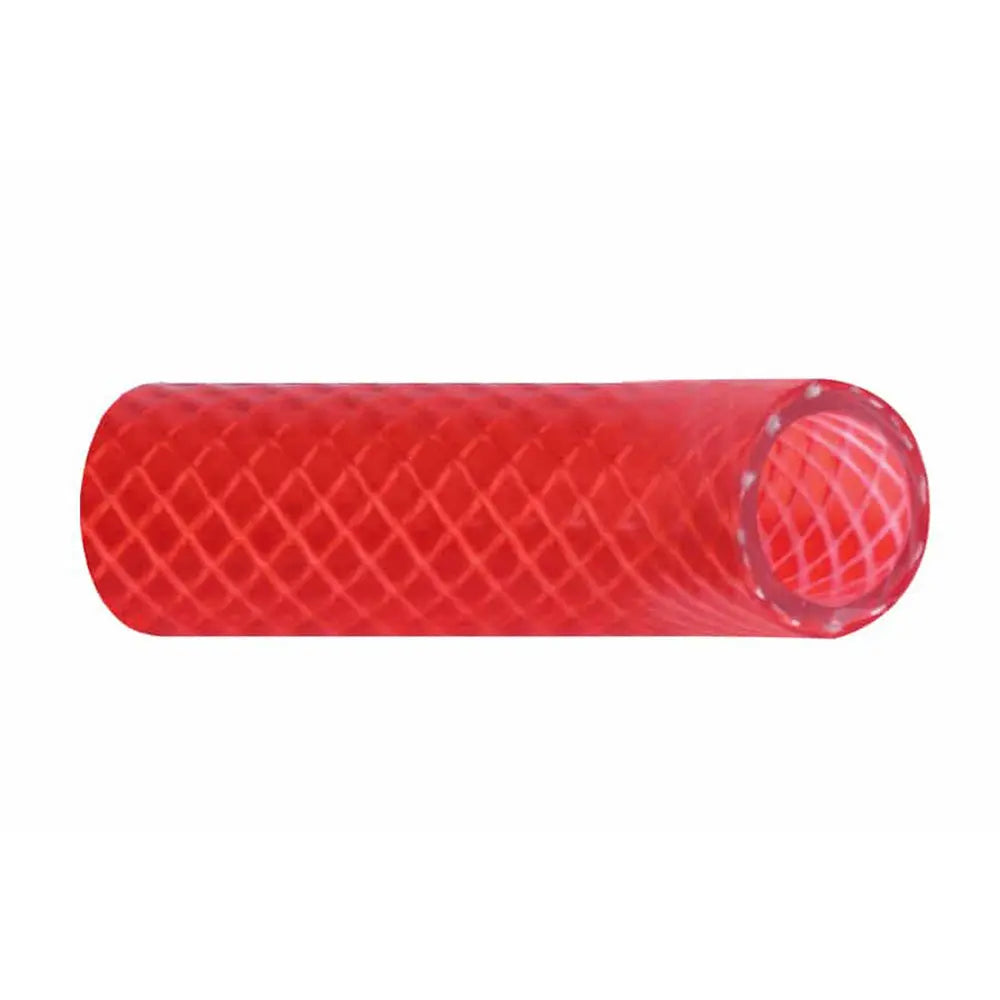

Trident Marine 166-0346 3/4 Inch x 50 Foot Reinforced PVC Hot Water Feed Line Hose - Drinking Water Safe, Translucent Red

3/4" x 50' Boxed Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent Red

Trident 166 Series Red - polyester reinforced PVC hose for "Hot Water" feed lines. The FDA-grade tube is nontoxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures of up to 149F (65C) and can handle pressures to a maximum of 250 psi (varies based on i.d size).

Features:

• The Red cover allows for easy identification of "Hot Water" lines on your boat
• Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
• This hose is safe for use with drinking water

Application:

• Perfect for hot, pressurized applications, hot water feed, drains, and vent lines

Construction:

• Tube Cover: Clear FDA tube
• Color: Red Transparent
• Reinforcement: Polyester
• Temperature Range: -18F to 149F (-28C to 65C)
• Length: 50 (15.24m)

Specifications:

• Inner Diameter: (inch) 3/4" / (mm) 19
• Outer Diameter: (inch) 1 / (mm) 25.4
• Working Pressure: (PSI Vac In./Hg) 220 / (bar) 15
• Bend Radius: (inch) 1.5" / (mm) 38

*Burst Pressure is 4 x Working Pressure

The Trident Marine 166 Series reinforced PVC hose is designed for hot water feed lines on boats and marine applications. Made with a durable 3-ply polyester reinforcement, this hose offers excellent abrasion resistance and maintains flexibility even in harsh operating conditions. Its translucent red cover allows for easy identification of hot water lines, enhancing safety and organization onboard. The FDA-grade, non-toxic, odorless, and tasteless tube ensures safe use with drinking water, complying with health standards for potable water systems. Suitable for applications requiring hot, pressurized water, this hose can withstand temperatures up to 149°F (65°C) and pressures up to 250 psi, depending on the inner diameter. Its robust construction makes it ideal for hot water feeds, drains, and vent lines in marine environments or other demanding settings. The hose's lightweight and flexible design facilitate installation and routing in confined spaces, while its reinforced structure ensures durability during extended use. Designed with a clear FDA-compliant tube, the hose's red translucent exterior provides visual confirmation of the line's function. The 50-foot length offers ample coverage for various plumbing configurations, and the 3/4-inch inner diameter fits standard fittings and connectors. The hose's bend radius and burst pressure ratings ensure reliable performance under pressure, with a safety margin of four times the working pressure. Whether upgrading existing plumbing or installing new systems, the Trident Marine reinforced PVC hose provides a safe, reliable, and easy-to-identify solution for hot water supply lines in marine or industrial applications.

Features:

• Red color cover for easy identification of hot water lines

• Made of 3-ply polyester reinforcement for enhanced durability

• FDA-grade, non-toxic, odorless, and tasteless inner tube suitable for drinking water

• Temperature rating up to 149°F (65°C) for hot water applications

• Maximum working pressure of 250 psi, varying with inner diameter

• Flexible and lightweight for easy installation

• Ideal for hot water feeds, drains, and vent lines
