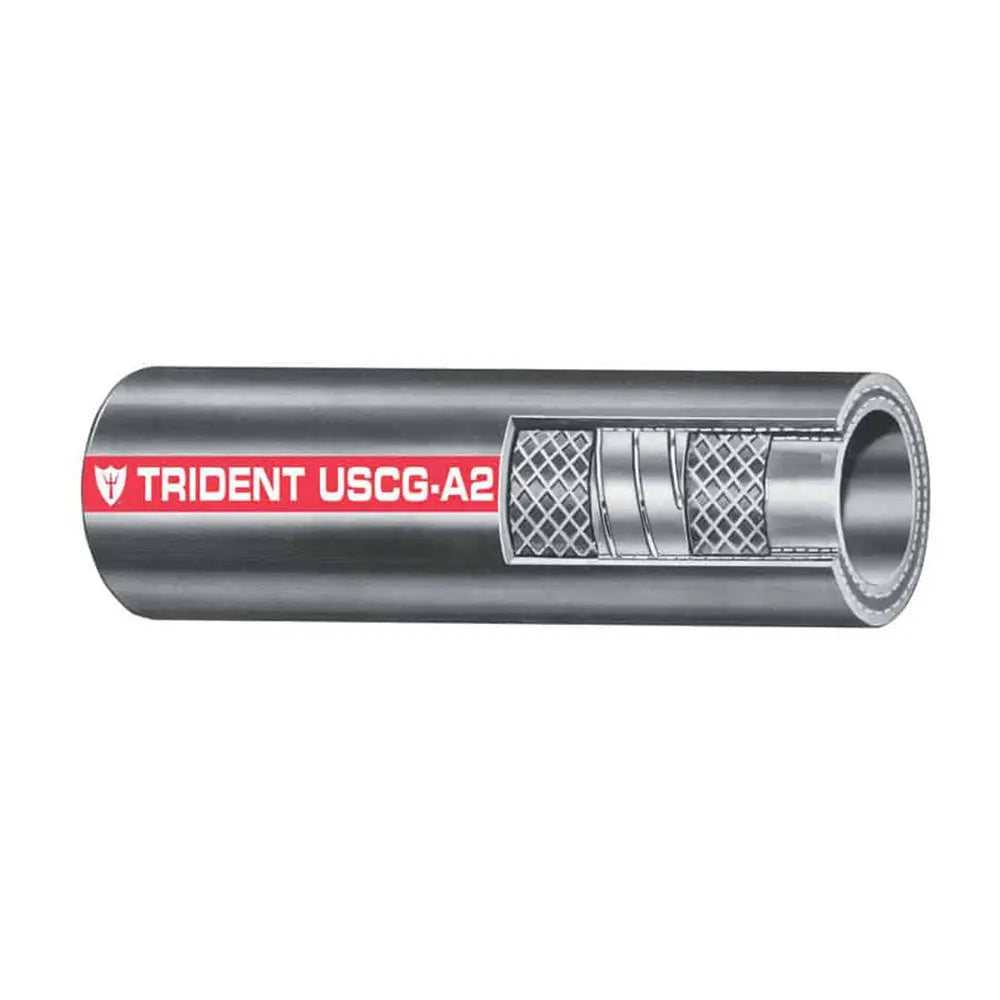

Trident Marine 2-inch Type A2 Fuel Fill Hose - Sold by the Foot

2" Type A2 Fuel Fill Hose - Sold by the Foot

Trident 2" ID A2 fuel fill hose for gasoline (including ethanol blends) and diesel (including bio diesel blends).

Features:

• Sold by the foot
• This hose is built with the best fuel, fire, and age-resistant formulation
• Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
• Also, provides excellent bend-ability

Applications:

• Marine Fuel Hose for fill and vent plus diesel distribution
• Approved, for all marine fuels including gasoline, alcohol blends, diesel and bio-diesel

Construction:

• Tube Cover: NBR / Neoprene
• Reinforcement: High tenacity polyester 2 spiral, spring steel helix
• Temperature Range: -20F to 212F (-20C to 100C)

Specifications:

• Inner Diameter: (inch) 2" / (mm) 50.8
• Outer Diameter: (inch) 2.48 / (mm) 63.5
• Wall: (inch) 0.25 / (mm) 6.4
• Working Pressure: (psi) 50 / (mpa) 0.345
• Bend Radius: (inch) 7.0" / (mm) 178

*The #327 series exceeds ABYC H-24 H-33, SAE J1527, ISO 7840, USCG Type A2; and is NMMA Type Accepted, CE certified, and Lloyds Registry Type Approved

The Trident Marine 2-inch Type A2 fuel fill hose is designed for versatile marine fuel applications, including gasoline, ethanol blends, diesel, and bio-diesel. Crafted with durable materials, this hose offers excellent resistance to aging, fire, extreme temperatures, cold, and ozone exposure, ensuring long-lasting performance in demanding marine environments. Its flexible construction makes installation easier, with a bend radius of approximately 7 inches, allowing for efficient routing in confined spaces. The hose features a Neoprene/NBR inner tube reinforced with high tenacity polyester spiral reinforcement and a spring steel helix, providing the strength needed to withstand working pressures of up to 50 psi. Suitable for fill, vent, and diesel distribution, it is approved for all marine fuels, meeting strict industry standards including ABYC, SAE, ISO, USCG, NMMA, CE, and Lloyds Registry certifications. Operating comfortably within a temperature range from -20°F to 212°F, this hose maintains flexibility and integrity across varying conditions. Sold by the foot, the Trident Marine 2-inch fuel fill hose offers a reliable, high-quality solution for marine fueling needs, ensuring safety and compliance in marine refueling operations.

Features:

• Sold by the foot for customizable lengths

• Constructed with fuel, fire, and age-resistant formulation

• Provides exceptional resistance to aging, fire, heat, cold, and ozone

• Highly flexible with excellent bend-ability

• Reinforced with high tenacity polyester spiral and spring steel helix for strength

• Suitable for all marine fuels including gasoline, ethanol blends, diesel, and bio-diesel

• Certified to meet ABYC, SAE J1527, ISO 7840, USCG Type A2, NMMA, CE, and Lloyds Registry standards

• Operates effectively within a temperature range of -20°F to 212°F
