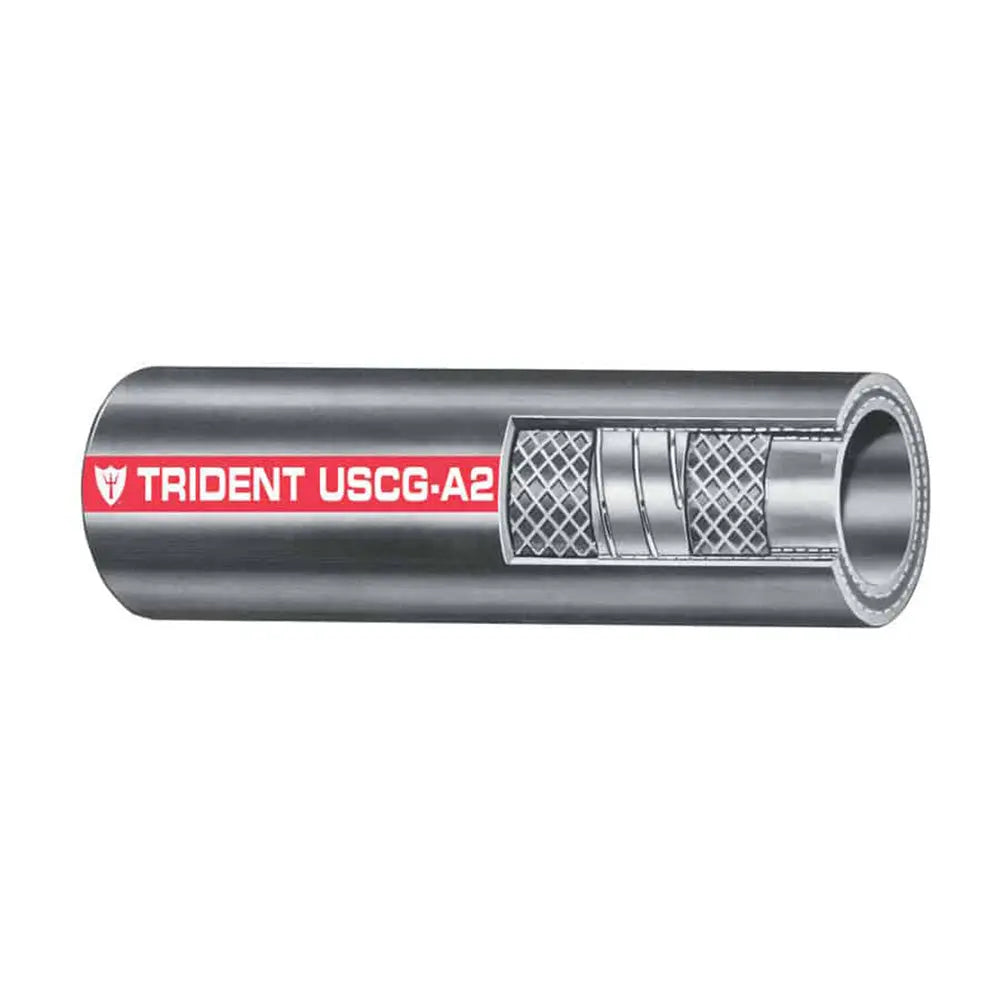

Trident Marine 2-inch x 50-foot Coil Type A2 Fuel Fill Hose for Marine Fuel and Diesel

2" x 50' Coil Type A2 Fuel Fill Hose

Trident 2" ID A2 fuel fill hose for gasoline (including ethanol blends) and diesel (including bio diesel blends).

Features:

• This hose is built with the best fuel, fire, and age-resistant formulation
• Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
• Also, provides excellent bend-ability

Application:

• Marine Fuel Hose for fill and vent plus diesel distribution
• Approved, for all marine fuels including gasoline, alcohol blends, diesel and bio-diesel

Construction:

• Tube Cover: NBR / Neoprene
• Reinforcement: High tenacity polyester 2 spiral, spring steel helix
• Temperature Range: -20F to 212F (-20C to 100C)
• Length: 50 ft. (15.24 m) Coil

Specifications:

• Inner Diameter: (inch) 2" / (mm) 50.8
• Outer Diameter: (inch) 2.48 / (mm) 63.5
• Wall: (inch) 0.25 / (mm) 6.4
• Working Pressure: (psi) 50 / (mpa) 0.345
• Bend Radius: (inch) 7.0" / (mm) 178

*The #327 series exceeds ABYC H-24 H-33, SAE J1527, ISO 7840, USCG Type A2; and is NMMA Type Accepted, CE certified, and Lloyds Registry Type Approved

The Trident Marine Part Number 327-2006 is a high-quality 2-inch diameter fuel fill hose designed for marine applications. This 50-foot coil hose is constructed with a durable NBR / Neoprene tube and cover, offering excellent resistance to aging, fire, heat, and cold conditions commonly encountered in marine environments. Its high tenacity polyester reinforcement with two spirals and a spring steel helix ensures strength and flexibility, making it suitable for both fill and vent purposes and diesel distribution. The hose's temperature range from -20°F to 212°F allows it to perform reliably under varying conditions. Its built-in features, such as excellent bend-ability and resistance to ozone, extend its lifespan and ease installation in tight spaces. This hose is approved for use with all marine fuels, including gasoline, ethanol blends, diesel, and biodiesel blends, meeting or exceeding industry standards such as ABYC H-24 H-33, SAE J1527, ISO 7840, USCG Type A2, and Lloyds Registry approval. Whether for new installations or replacement, this flexible and reliable fuel hose offers peace of mind for marine fuel handling, ensuring safe and efficient operation across diverse maritime environments. Its robust construction and comprehensive certifications make it an ideal choice for boat builders, marine repair professionals, and vessel owners seeking top-tier fuel transfer solutions.

Features:

• Constructed with NBR / Neoprene tube and cover for durability and chemical resistance

• High tenacity polyester reinforcement with dual spirals and spring steel helix for strength and flexibility

• Temperature range from -20°F to 212°F for versatile marine conditions

• Excellent bend-ability for easy routing and installation

• Resistant to aging, fire, heat, cold, and ozone for extended service life

• Approved for all marine fuels including gasoline, ethanol blends, diesel, and bio-diesel

• Meets or exceeds industry standards such as ABYC H-24 H-33, SAE J1527, ISO 7840, USCG Type A2, and Lloyds Registry

• 50-foot coil for convenient handling and installation
