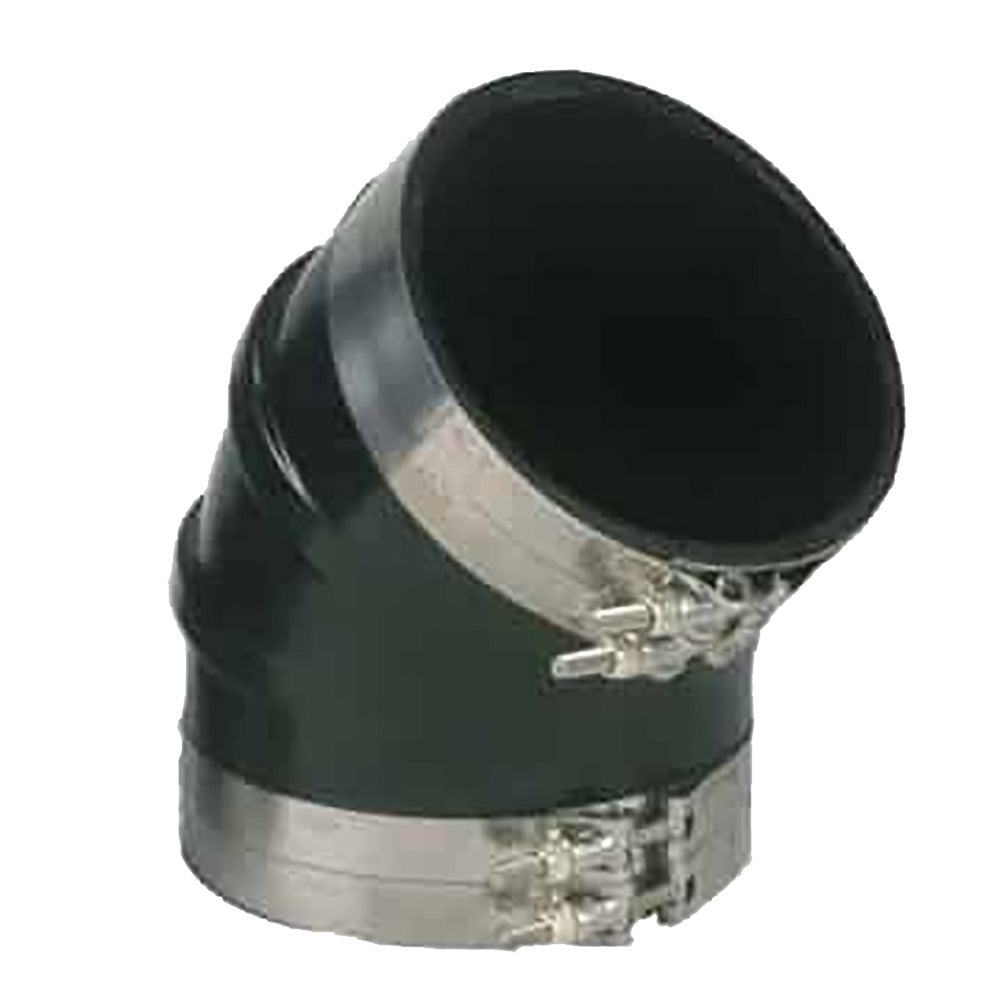

Trident Marine 3-1/2 inch ID 45-Degree EPDM Rubber Exhaust Elbow with Clamps

3-1/2" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6 I.D. or bigger have molded reinforcing ribs on the outside.

Features:

• Four stainless steel clamps are included
• This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC NMMA P-1 exhaust standards)
• Black high-temp EDPM rubber

Construction:

• Color: Black
• Reinforcement: Reinforcing ribs on 6 I.D. and above
• Temperature Range: up to 250F (121C)

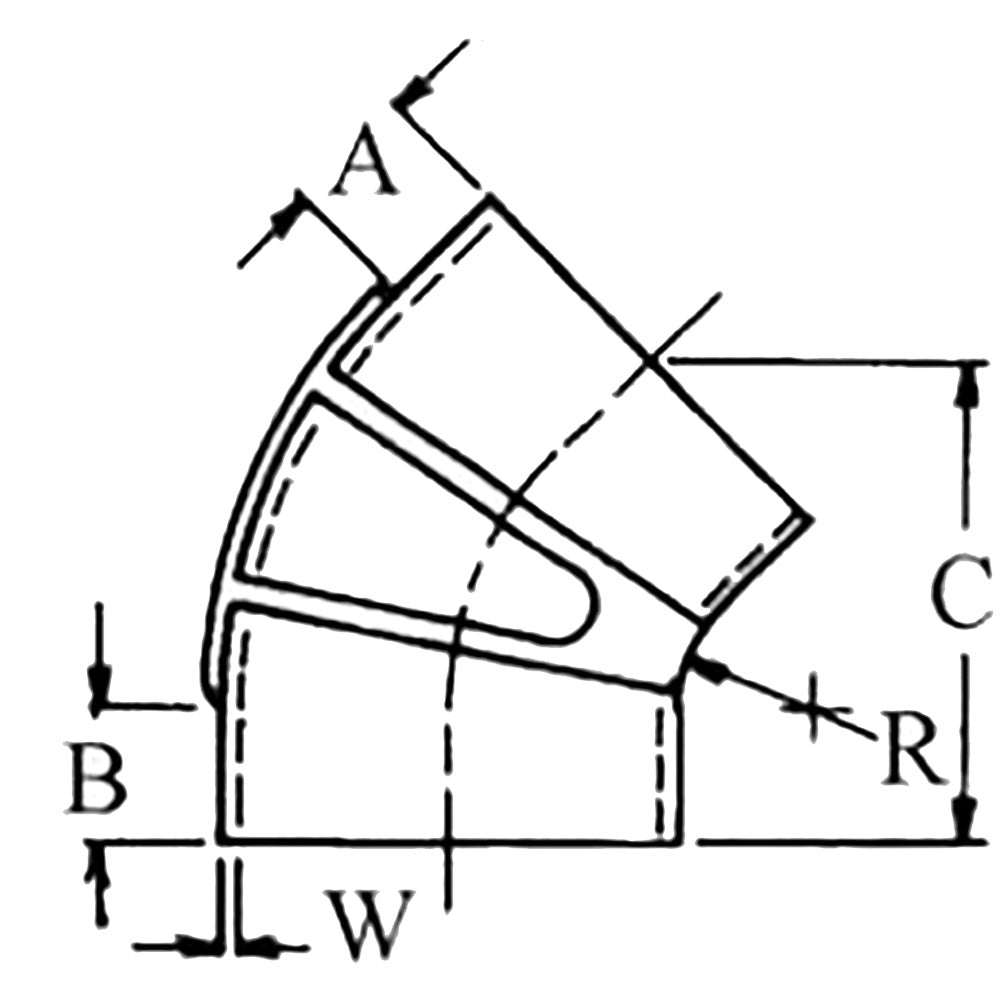

Specifications:

• Inner Diameter: (inch) 3.5 / (mm) 88.9
• Outer Diamter: (inch) 4.0" / (mm) 101.6
• A: (inch) 1.5 / (mm) 38.1
• B: (inch) 1.5 / (mm) 38.1
• C: (inch) 5.5 / (mm) 139.7
• W: (inch) 0.25 / (mm) 6.35
• Elbow Degree: 45 degrees
• Weight: (Lb/Ea) 0.7 / (Kg/Ea) 0.32

The Trident Marine 3545-S/S is a high-quality 45-degree wet exhaust elbow designed for marine applications, featuring a 3-1/2 inch inner diameter made from durable high-temperature black EPDM rubber. Crafted to withstand harsh environmental conditions, this molded elbow offers excellent resistance to ozone, salt water, diesel fumes, and temperature extremes up to 250°F (121°C). The smooth bore design ensures optimal exhaust flow, while reinforcing ribs on elbows of 6 inches or larger provide additional structural integrity. This assembly includes four stainless steel T-bolt clamps, ensuring a secure and reliable connection that meets or exceeds SAE J2006-R1 and ABYC NMMA P-1 exhaust standards. Its black high-temp EPDM rubber construction makes it suitable for demanding marine environments, providing longevity and dependable performance over time. The elbow's compact design facilitates easy installation in tight spaces, making it ideal for marine exhaust systems requiring precise directional adjustments. Whether replacing worn components or installing new systems, this elbow offers a robust solution that combines durability, compliance, and ease of use for marine professionals and enthusiasts alike.

Features:

• Includes four stainless steel T-bolt clamps for secure attachment

• Made from high-temperature black EPDM rubber for durability and resistance

• Resistant to ozone, salt water, diesel fumes, cold, heat, and aging

• Exceeds SAE J2006-R1 and ABYC NMMA P-1 exhaust standards

• Reinforcing ribs on elbows of 6 inches or larger for added strength

• Designed for maximum temperature resistance up to 250°F (121°C)
