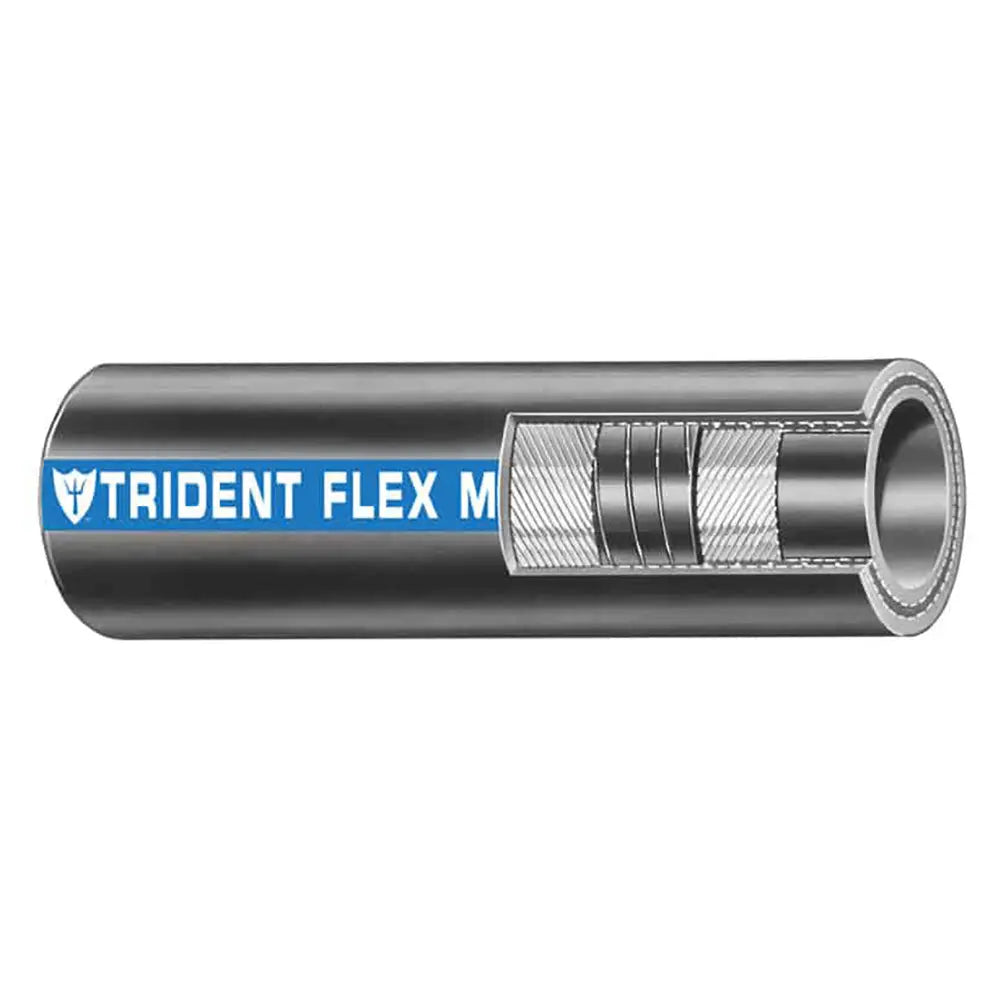

Trident Marine 3/4 Inch Flex Wet Exhaust and Water Hose - Black, Sold by the Foot

3/4" Flex Marine Wet Exhaust Water Hose - Black - Sold by the Foot

Trident Flex wet exhaust hose for longer bent connections. In smaller I.D.s for engine intake, critical water, drain, scupper bilge sanitation uses. Resists heat, ozone, exhaust, panting, and collapse. Black High Temp EDPM Rubber 250F (121C) Max.

Features:

• Sold by the foot
• Extra heavy tube and cover with wire helix between 2-ply reinforcement provides excellent flexibility and bend radius
• Resists heat, ozone, exhaust, sani chemicals, panting, and collapse
• Exceeds SAE J2006-R2, ABYC NMMA P-1 exhaust standards, and Lloyds Registry Type Approved

Application:

• Trident Flex wet exhaust hose for longer bent connections
• In smaller I.D.s for engine intake, critical water, drain, scupper bilge sanitation uses

Construction:

• Tube Cover: High temp EDPM rubber
• Color: Black with blue stripe
• Reinforcement: Multi-ply, high-tenacity polyester, steel helix
• Temperature Range: 250F (121C)

Specifications:

• Inner Diameter: (inch) 3/4" / (mm) 20
• Outer Diameter: (inch) 1.15" / (mm) 29
• Working Pressure: (Psi) 100 / (bar) 6.9
• Bend Radius: (inch) 1" / (mm) 25
• Weight: (Lb./50ft.) 23 / (Kg/m) 10.3

*Burst Pressure is 4 x Working Pressure

The Trident Marine 3/4 inch Flex Wet Exhaust and Water Hose is designed for reliable marine applications requiring flexible, durable connections. Crafted from high-temp EDPM rubber, this hose withstands temperatures up to 250°F (121°C), making it ideal for engine exhaust, water intake, drainage, and sanitation systems. Its black color with a blue stripe not only provides visibility but also offers resistance to UV rays, ozone, and chemical exposure, ensuring long-lasting performance in harsh marine environments. The hose's multi-ply reinforcement, including a steel helix, delivers excellent flexibility and bend radius, allowing for longer, more complex bends without compromising integrity. It exceeds industry standards such as SAE J2006-R2, ABYC NMMA P-1, and Lloyds Registry Type Approval, underscoring its quality and safety for marine use. Sold by the foot, this hose can be cut to the desired length for custom installations, providing versatility for a variety of marine plumbing needs. Its high-tensile polyester reinforcement ensures durability and resistance to collapse, while the extra-heavy tube and cover contribute to its robustness. The working pressure of 100 PSI, with a burst pressure of four times that, guarantees safe operation under typical conditions. With an outer diameter of approximately 1.15 inches and an inner diameter of 3/4 inch, this hose is suitable for tight spaces and critical connections in marine engine systems. Whether for engine intake, water discharge, or sanitation, the Trident Marine Flex hose is engineered for dependable performance and ease of installation in demanding marine environments.

Features:

• Sold by the foot for custom lengths

• Extra heavy tube and cover with steel helix reinforcement for flexibility and durability

• Resists heat, ozone, exhaust gases, sanitizing chemicals, and collapse

• Exceeds SAE J2006-R2, ABYC NMMA P-1, and Lloyds Registry Type Approval standards

• High-temp EDPM rubber construction for temperature resistance up to 250°F

• Black color with blue stripe for visibility and UV resistance

• Suitable for engine exhaust, water intake, drain, and sanitation applications

• Inner diameter: 3/4 inch; Outer diameter: 1.15 inches

• Maximum working pressure: 100 PSI; Burst pressure: 4 times working pressure

• Reinforced with multi-ply polyester and steel helix for strength and flexibility
