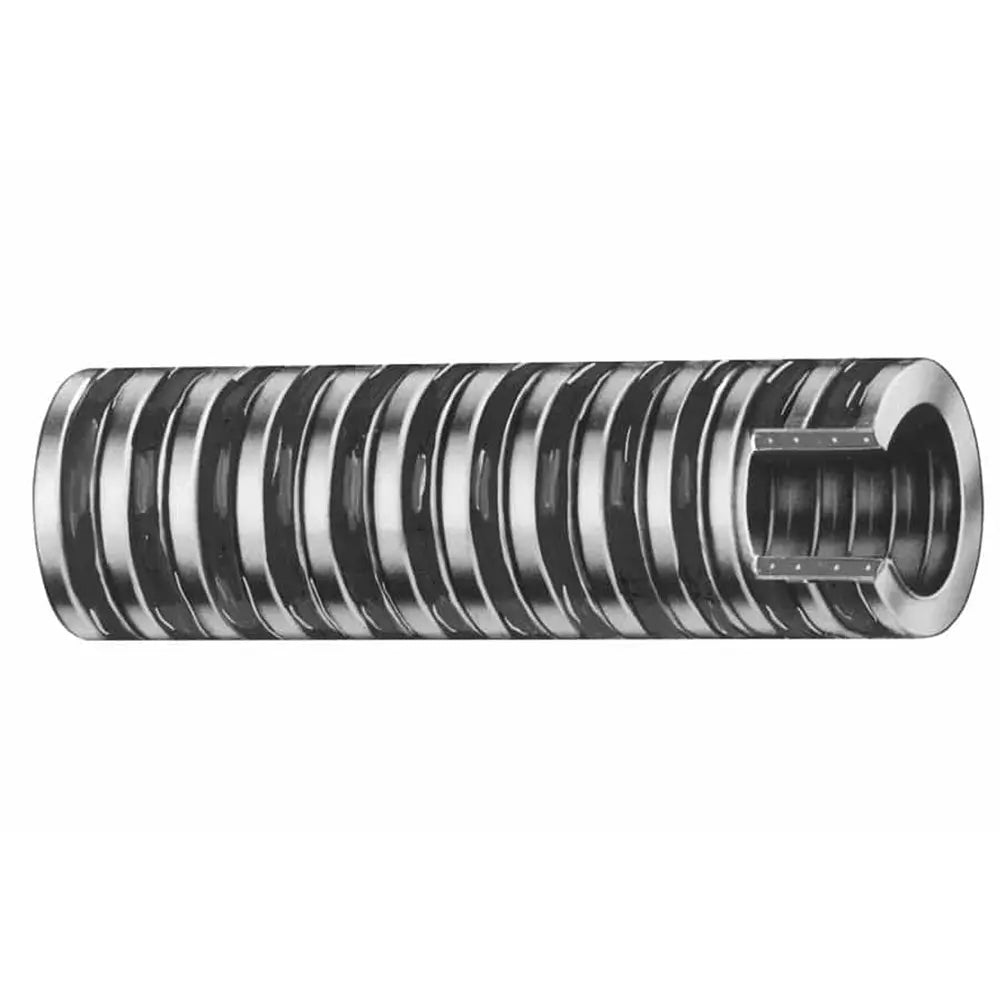

Trident Marine 3/4 Inch Heavy Duty PVC Bilge and Livewell Hose with Black Helix, Clear - Sold by the Foot

3/4" Heavy Duty PVC Bilge Livewell Hose (FDA) - Clear with Black Helix - Sold by the Foot

Trident Smooth extra heavy wall vinyl (FDA) well hose. All clear (see thru) with black helix. Excellent durability, flexibility bend radius for XHD bilge, live well, drain, scupper lines, etc. No cuffs are required.

Features:

• Sold by the foot
• Flexible, but the 147 series is less flexible than the 149 series of hoses

Application:

• Bilge and live well hose

Specifications:

• Tube Cover: Clear vinyl reinforced with black helix
• Color: Clear with black helix
• Reinforcement: PVC Helix
• Temperature Range: 10F-120F (-12C-49C)
• Inner Diameter: (inch) 3/4" / (mm) 19
• Outer Diameter: (inch) 0.968" / (mm) 24.6
• Working Pressure: (Psi Vac In./Hg) 28
• Weight: (Lb./ 50 ft.) 11 / (Kg/m) 0.33
• Bend Radius: (inch) 2.25" / (mm) 57.2

*Burst Pressure is 4 x Working Pressure

The Trident Marine 3/4 inch Heavy Duty PVC Bilge and Livewell Hose is designed for demanding marine applications requiring durability and flexibility. Made from FDA-approved extra heavy wall vinyl, this hose features a clear construction with a black helix reinforcement, allowing for easy visual inspection of water flow. Its robust construction ensures long-lasting performance in bilge, live well, drain, and scupper lines, eliminating the need for cuffs and providing a reliable connection in various marine environments. The hose's flexible design facilitates installation even in tight spaces, while its reinforced PVC helix offers excellent resistance to kinks and bends that can occur during vessel operation. Suitable for use within a temperature range of 10°F to 120°F, this hose maintains its integrity across typical marine conditions and pressures. The inner diameter measures approximately 3/4 inch, with an outer diameter just under 1 inch, providing a snug fit for standard fittings. The hose supports a working pressure of 28 psi and has a burst pressure of four times that, ensuring safety and durability under stress. Weighing about 11 pounds per 50 feet, it is lightweight yet sturdy enough for demanding applications. The minimal bend radius of 2.25 inches allows for flexible routing without compromising flow. This product is sold by the foot, giving you customized lengths to match your specific installation needs. Whether replacing worn-out bilge hoses or upgrading your live well system, the Trident Marine 3/4 inch hose offers a dependable solution that meets marine industry standards and FDA safety requirements. Please note that this product may not be returned to the original point of purchase; contact Trident Marine directly for any issues or concerns.

Features:

• Sold by the foot for customized installation lengths

• Flexible design with less flexibility than 149 series hoses

• Clear vinyl tube reinforced with black helix for durability and visual inspection

• Resistant to temperatures between 10°F and 120°F

• Supports a working pressure of 28 psi with a burst pressure four times higher

• Minimal bend radius of 2.25 inches for easy routing

• Ideal for bilge, live well, drain, and scupper lines

• Lightweight construction at approximately 11 pounds per 50 feet
