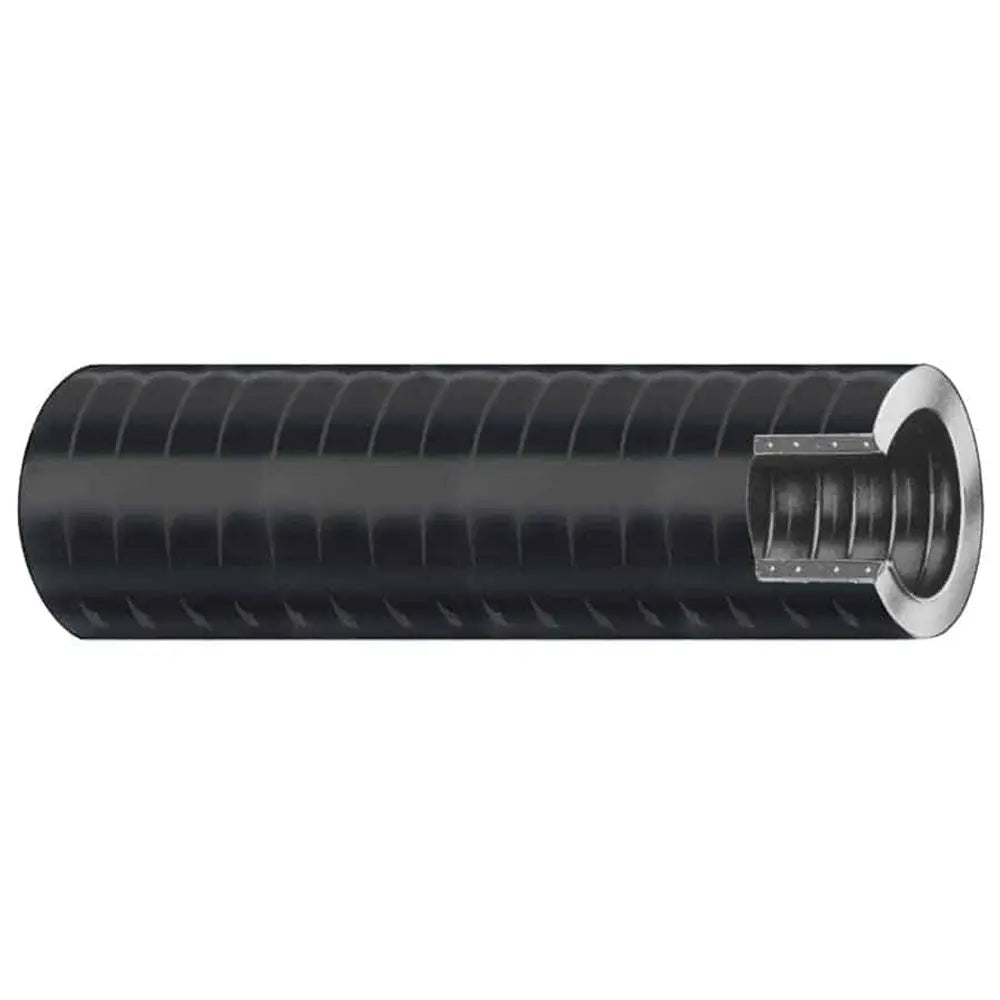

Trident Marine 3/4 inch VAC XHD Bilge and Live Well Hose - Hard PVC Helix, Black, Sold by the Foot

3/4" VAC XHD Bilge Live Well Hose - Hard PVC Helix - Black - Sold by the Foot

Trident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.

Features:

• Sold by the foot
• 149 series of hoses is extra flexible

Application:

• Bilge and live well hose

Specifications:

• Tube Cover: Hard PVC helix
• Color: Black
• Reinforcement: PVC Helix
• Temperature Range: 10F-120F (-12C-48C)
• Inner Diameter: (inch) 3/4" / (mm) 19.1
• Outer Diameter: (inch) .986" / (mm) 25
• Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93
• Weight: (Lb./ 50 ft.) 11 / (Kg/m) 4.99
• Bend Radius: (inch) 3" / (mm) 76.2

*Burst Pressure is 4 x Working Pressure

The Trident Marine 149-0346-FT is a durable and flexible hose designed specifically for bilge and live well applications on boats. Constructed with a hard PVC helix reinforcement, this hose provides excellent flexibility and a tight bend radius, making installation easier in confined spaces. Its smooth outer surface facilitates secure clamping and reduces wear, ensuring a reliable connection for demanding marine environments. The hose's ability to bend like rubber combined with its strong reinforcement makes it suitable for heavy-duty use, including bilge pumping and live well circulation systems. Its black color not only resists UV and corrosion but also blends seamlessly into marine settings, maintaining a professional appearance. The hose is rated to operate within a temperature range of 10°F to 120°F, ensuring dependable performance across various conditions. With a 3/4-inch inner diameter, it offers sufficient flow capacity for most bilge and live well needs, while its outer diameter of just under 1 inch allows for easy installation in tight spaces. The working pressure of up to 28 inches of vacuum or 1.93 bar ensures it can handle the demands of marine pumping systems, with a burst pressure four times the working pressure for added safety. Weighing approximately 11 pounds per 50-foot length, this hose is lightweight and manageable for marine technicians and boat owners alike. Whether you're replacing an old hose or installing new equipment, the Trident Marine VAC XHD hose offers the flexibility, strength, and ease of use required for reliable marine bilge and live well operations.

Features:

• Sold by the foot for customizable length

• Extra flexible 149 series with helical PVC reinforcement

• Designed for bilge and live well applications

• Hard PVC helix tube and cover for durability

• Smooth outer surface for easy clamping

• Operates within a temperature range of 10°F to 120°F

• Inner diameter of 3/4 inch for efficient flow

• Outer diameter just under 1 inch for easy installation

• Rated to a working pressure of 28 inches of vacuum/Hg and 1.93 bar

• Burst pressure is four times the working pressure for safety
