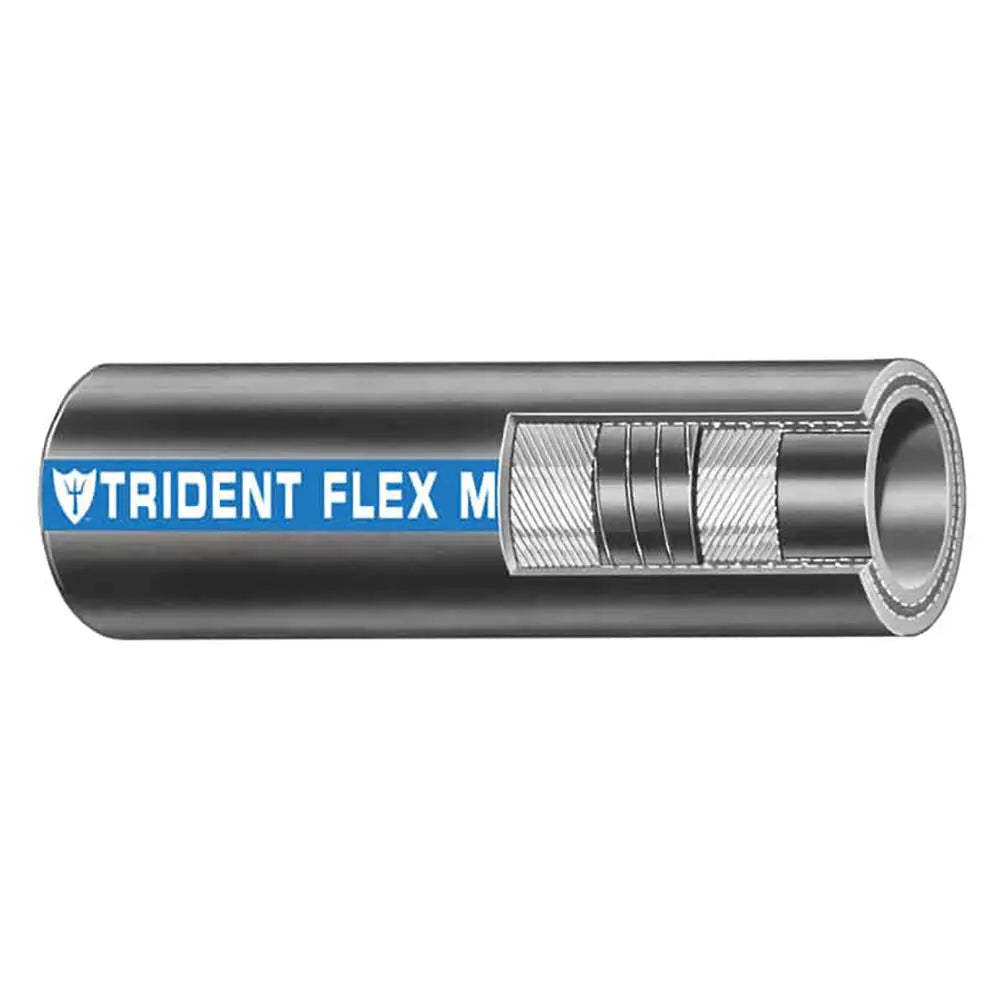

Trident Marine 3/4-inch x 50-foot Coil Flex Wet Exhaust and Water Hose - Black

3/4" x 50' Coil Flex Marine Wet Exhaust Water Hose - Black

Trident Flex wet exhaust hose for longer bent connections. In smaller I.D.s for engine intake, critical water, drain, scupper bilge sanitation uses. Resists heat, ozone, exhaust, panting, and collapse. Black High Temp EDPM Rubber 250F (121C) Max.

Features:

• Extra heavy tube and cover with wire helix between 2 ply reinforcement provides excellent flexibility and bend radius
• Resists heat, ozone, exhaust, sani chemicals, panting and collapse
• Exceeds SAE J2006-R2, ABYC NMMA P-1 exhaust standards, and Lloyds Registry Type Approved

Application:

• Trident Flex wet exhaust hose for longer bent connections
• In smaller I.D.s for engine intake, critical water, drain, scupper bilge sanitation uses

Construction:

• Tube Cover: High temp EDPM rubber
• Color: Black with blue stripe
• Reinforcement: Multi-ply, high-tenacity polyester, steel helix
• Temperature Range: 250F (121C)
• Length: 50 (15.24m)

Specifications:

• Inner Diameter: (inch) 3/4" / (mm) 20
• Outer Diameter: (inch) 1.15" / (mm) 29
• Working Pressure: (Psi) 100 / (bar) 6.9
• Bend Radius: (inch) 1" / (mm) 25
• Weight: (Lb./50ft.) 23 / (Kg/m) 10.3

*Burst Pressure is 4 x Working Pressure

The Trident Marine 3/4-inch x 50-foot Coil Flex Wet Exhaust and Water Hose is designed for demanding marine applications requiring reliable performance and flexibility. Crafted from high-temperature EDPM rubber, this hose withstands temperatures up to 250°F (121°C), making it suitable for engine exhaust, water intake, drain, and sanitation systems. Its black color with a blue stripe provides a professional appearance while the multi-ply reinforcement, including high-tenacity polyester and a steel helix, ensures durability and excellent bend radius for complex routing. The heavy-duty construction resists heat, ozone, exhaust gases, sanitation chemicals, and panting, preventing collapse and maintaining integrity under harsh conditions. It exceeds industry standards such as SAE J2006-R2, ABYC, NMMA P-1 exhaust standards, and Lloyd's Registry Type Approval, ensuring compliance with the highest safety and performance benchmarks.

This hose features an extra heavy tube and cover with wire helix, providing exceptional flexibility and resilience for longer bent connections. It is ideal for engine intake, critical water lines, drains, scupper bilge, and sanitation uses in marine environments, where reliability and safety are paramount. The 50-foot length offers versatility for various installation needs, while the flexible design simplifies routing around tight spaces. The hose's dimensions include an inner diameter of 3/4 inch (20 mm) and an outer diameter of approximately 1.15 inches (29 mm), with a bend radius of just 1 inch (25 mm). It supports a working pressure of 100 psi (6.9 bar), with a burst pressure four times that, providing a robust safety margin. Weighing approximately 23 pounds per 50 feet, this hose balances strength with manageable handling, making it suitable for a wide range of marine plumbing applications.

Designed and manufactured by Trident Marine, this hose combines durability, flexibility, and compliance to meet the rigorous demands of marine environments. Whether used for exhaust systems or critical water lines, it offers peace of mind through its proven construction and safety standards. Install it confidently knowing that it is engineered to perform reliably under high-temperature conditions while maintaining excellent bendability and resilience in harsh marine conditions.

Features:

• Heavy-duty tube and cover with wire helix for excellent flexibility and bend radius

• Resists heat, ozone, exhaust gases, sanitation chemicals, panting, and collapse

• Exceeds SAE J2006-R2, ABYC, NMMA P-1 exhaust standards, and Lloyds Registry Type Approved
