Trident Marine 3/8 inch Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose - Gray, Sold by the Foot

3/8" Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose - Gray - Sold by the Foot

This hose is built with the best fuel and age-resistant formulations and a unique "Barrier Liner" on the inside surface of the tube, so the fuel is not in direct contact with rubber. This greatly reduces fuel permeation and prevents ethanol degradation of the rubber tube, which can cause small pieces of rubber to reach and damage the engine. That is particularly important considering the prospect of higher ethanol blends (E-15) available at gas stations next year.

Features:

• Sold by the Foot
• Provides extraordinary resistance to fuel permeation, aging, heat, cold, and ozone
• Also, provides excellent rope-like bend-ability and fitting retention
• For both gasoline (including ethanol blends up to E85) and diesel (including bio diesel blends up to 100%)
• EPA Certified and CARB Executive Order for low permeation Type B1-15
• NMMA Type Accepted CE certified

Applications:

• Marine Fuel Hose for distribution, return, vent and transfer
• For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel

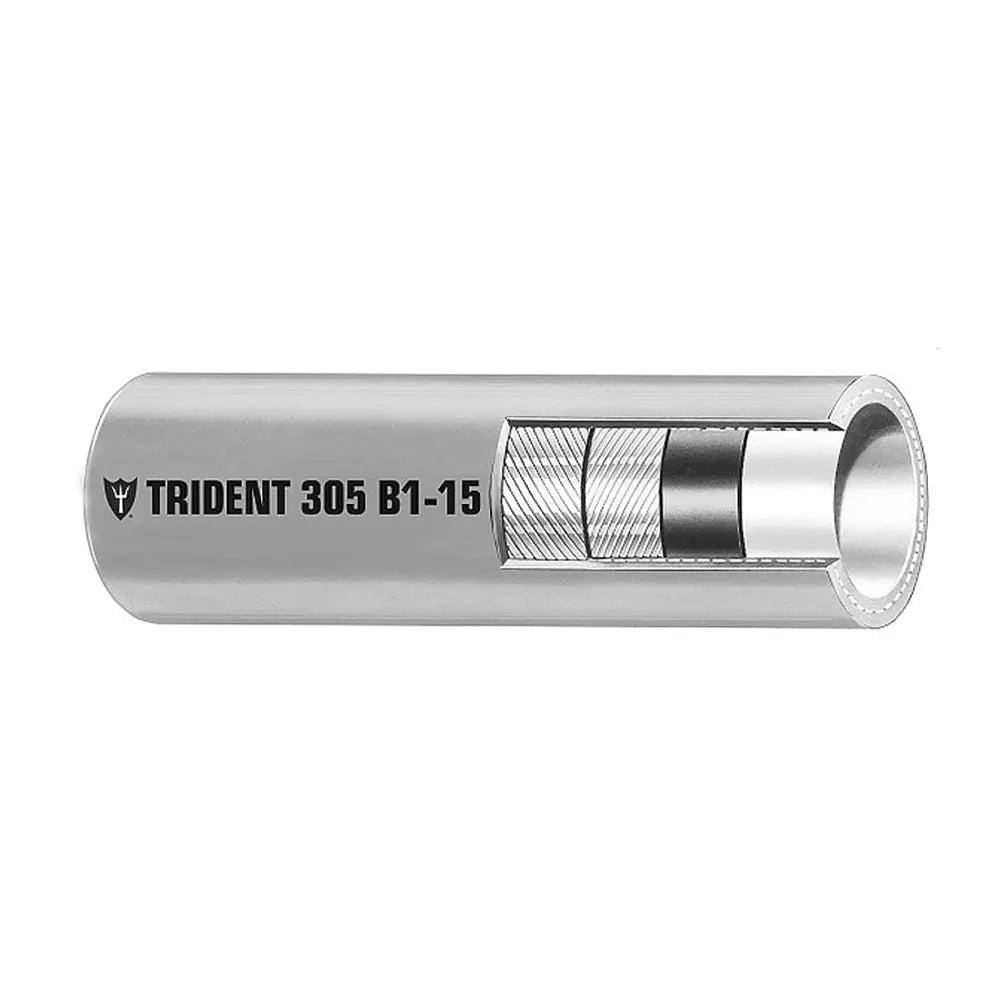

Construction:

• Tube: Fluoroplastic Internal Barrier
• Cover: Gray CPE Rubber
• Reinforcement: 2-Spiral Polyester Plies
• Temperature Range: -20F to 212F (-28C to 100C)

Specifications:

• Inner Diameter: (inch) 3/8" / (mm) 9.50
• Outer Diameter: (inch) 0.588 / (mm) 14.9
• Burst Pressure: (psi) 175 / (mpa) 1.21
• Working Pressure: (psi) 35 / (mpa) 0.24
• Bend Radius: (inch) 4" / (mm) 101.6
• Weight: (lb/100 ft.) 10.5 / (kg/m) 0.156
• Permeation Rate (Standard is (15g/m^2/24hrs (CE10)): 5.0

*The #305 series exceeds ABYC H-24, SAE J1527, ISO 8469 B1, USCG Type B1-15

The Trident Marine 3/8 inch Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose offers a reliable solution for marine fuel transfer applications. Crafted with advanced fuel and age-resistant formulations, this hose features a unique internal barrier liner that prevents fuel from directly contacting the rubber tube, significantly reducing permeation and protecting against ethanol degradation. This feature is especially valuable as ethanol blends up to E15 and E85 become more common at fueling stations. The hose’s construction includes a fluoroplastic internal barrier, a gray CPE rubber cover, and reinforced with two spiral polyester plies, ensuring durability across a wide temperature range from -20°F to 212°F (-28°C to 100°C). Its design offers excellent flexibility and fitting retention, making installation and handling straightforward in demanding marine environments. This hose is suitable for both gasoline, including ethanol and ethanol-blended fuels, and diesel, including bio-diesel blends up to 100%, making it versatile for various fueling needs. It is EPA certified, CARB compliant, and meets NMMA Type standards, ensuring it adheres to strict environmental and safety regulations. The hose's specifications include an inner diameter of 3/8 inch (9.50 mm), an outer diameter of approximately 0.588 inch (14.9 mm), and a burst pressure of 175 psi, with a maximum working pressure of 35 psi. Its bend radius of 4 inches facilitates easy routing in confined spaces, and it weighs about 10.5 pounds per 100 feet, providing a balance of flexibility and robustness. Suitable for distribution, return, vent, and transfer applications, this hose is ideal for marine engines and fuel systems where durability and environmental compliance are critical. Trident Marine’s B1-15 fuel hose exceeds standards set by ABYC, SAE, ISO, and US Coast Guard, making it a dependable choice for professional and recreational marine use. Sold by the foot, this product allows for flexible installation and precise customization to your specific marine fuel transfer needs.

Features:

• Sold by the foot for customizable lengths

• Internal barrier liner reduces fuel permeation and ethanol degradation

• Resistant to fuel, aging, heat, cold, and ozone

• Flexible with excellent bend-ability and fitting retention

• Suitable for gasoline (including ethanol blends up to E85) and diesel (including biodiesel blends up to 100%)

• EPA certified and CARB compliant for low permeation

• NMMA Type accepted and CE certified for marine applications

• Constructed with fluoroplastic internal barrier, gray CPE rubber cover, and reinforced with two spiral polyester plies

• Operational temperature range from -20°F to 212°F
