Trident Marine 3/8 inch Low Permeation Type A1-15 Fuel Line Hose - Black, Sold by the Foot

3/8" Low Permeation Type A1-15 Fuel Line Hose - Black - Sold by the Foot

Trident Barrier Lined A1-15 Fuel Hose for both gasoline (including ethanol blends up to 85%) and diesel (including bio diesel blends up to B100). This hose is built with the best fuel, fire, and age-resistant formulation, and a unique "Barrier Liner" on the inside surface of the tube, so fuel is not in direct contact with rubber.

Features:

• Sold by the foot
• Provides extraordinary resistance to fuel permeation, aging, and also to fire, heat, cold, and the ozone
• Also provides excellent bend-ability
• NMMA Type Accepted CE certified

Applications:

• Marine Fuel Hose (distribution, return, vent and transfer)
• For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel

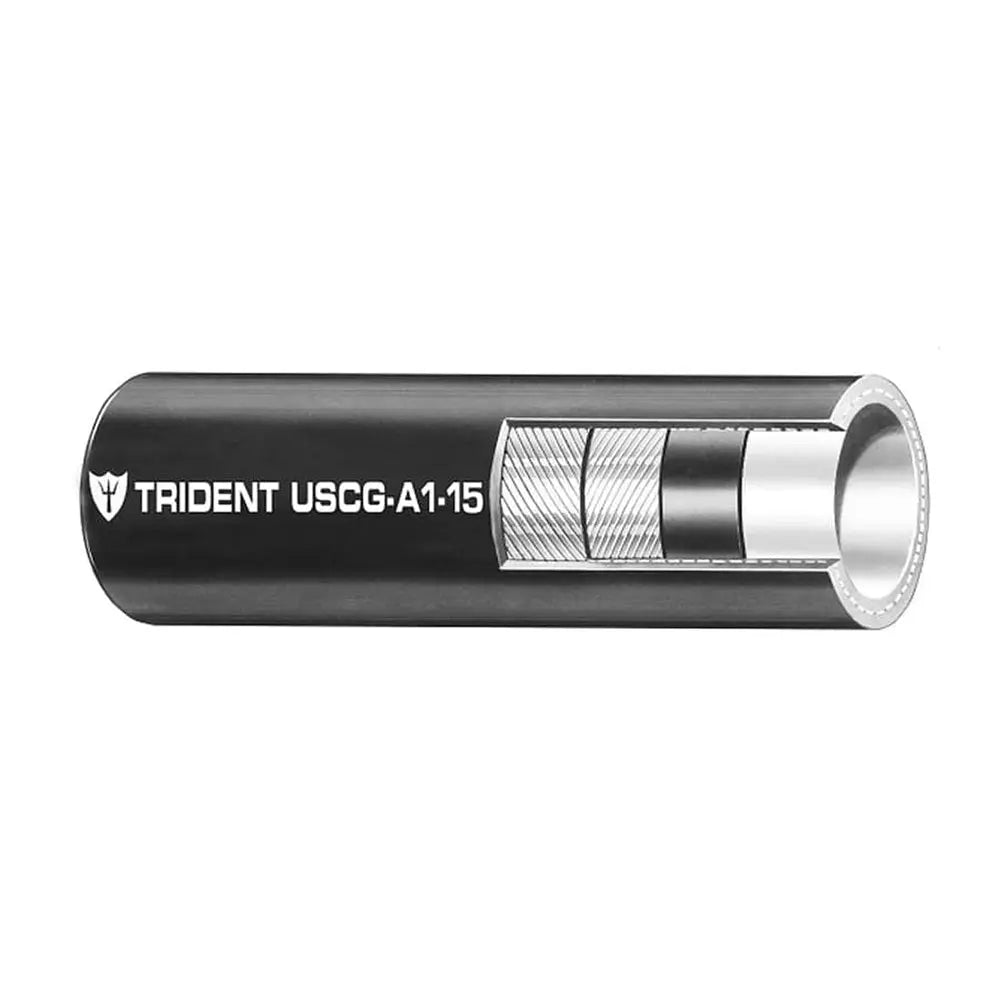

Construction:

• Tube: Nylon Internal Barrier, NBR
• Cover: NBR/PVC Blend
• Reinforcement: Polyester 2 spiral
• Temperature Range: -20F to 212F (-28C to 100C)

Specifications:

• Inner Diameter: (inch) 3/8" / (mm) 9.50
• Outer Diameter: (inch) 0.681 / (mm) 17.3
• Burst Pressure: (psi) 400 / (mpa) 2.76
• Working Pressure: (psi) 100 / (mpa) 0.69
• Bend Radius: (inch) 2" / (mm) 50.8
• Weight: (lb/100 ft.) 15.6 / (kg/m) 0.233
• Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10)

*The #365 series exceeds ABYC H-24 H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and EPA Certified low permeation Type A1-10

The Trident Marine 365-0386-FT fuel line hose is a high-performance solution designed for demanding marine fuel systems. Crafted with a barrier-lined nylon internal tube and reinforced with two spiral polyester layers, this hose offers exceptional resistance to fuel permeation, aging, and environmental factors such as fire, heat, cold, and ozone. Its unique barrier liner prevents direct contact between fuel and rubber, ensuring optimal safety and durability, especially when handling gasoline, ethanol blends up to 85%, diesel, and bio-diesel fuels.
Ideal for distribution, return, vent, and transfer applications on boats, this hose is certified to meet or exceed industry standards including ABYC H-24, H-33, SAE J1527, ISO 7840, USCG Type A1-15, and EPA low permeation requirements. Its construction features a nylon internal barrier with NBR, a cover made from a NBR/PVC blend, and a temperature range from -20°F to 212°F, allowing versatile use in various marine environments. The hose's design provides excellent bendability with a 2-inch bend radius, making installation easier in tight spaces while maintaining integrity under pressure.
Measuring approximately 3/8 inch in inner diameter and 17.3 mm in outer diameter, the hose can withstand burst pressures up to 400 psi and operate safely at 100 psi. Its lightweight construction ensures ease of handling, with a typical weight of 15.6 pounds per 100 feet. The permeation rate is less than 10 g/m² per 24 hours, certifying its low permeation performance in accordance with CE standards. This product is sold by the foot, allowing flexibility for custom installations and repairs, and is suitable for a wide range of marine fuel applications. With proven resistance and certification, the Trident Marine fuel hose provides a reliable choice for maintaining safe and efficient fuel transfer systems on marine vessels.

Features:

• Sold by the foot for customizable length installations

• Exceptional resistance to fuel permeation, aging, and environmental factors

• Built with a barrier-lined nylon internal tube for fuel safety

• Reinforced with two spiral polyester layers for durability

• Certified to meet industry standards including ABYC H-24, H-33, SAE J1527, ISO 7840, USCG Type A1-15, and EPA low permeation

• Temperature range from -20°F to 212°F for versatile marine use

• Excellent bendability with a 2-inch bend radius

• Suitable for gasoline, ethanol blends up to 85%, diesel, and bio-diesel

• Designed for marine fuel distribution, return, vent, and transfer systems
