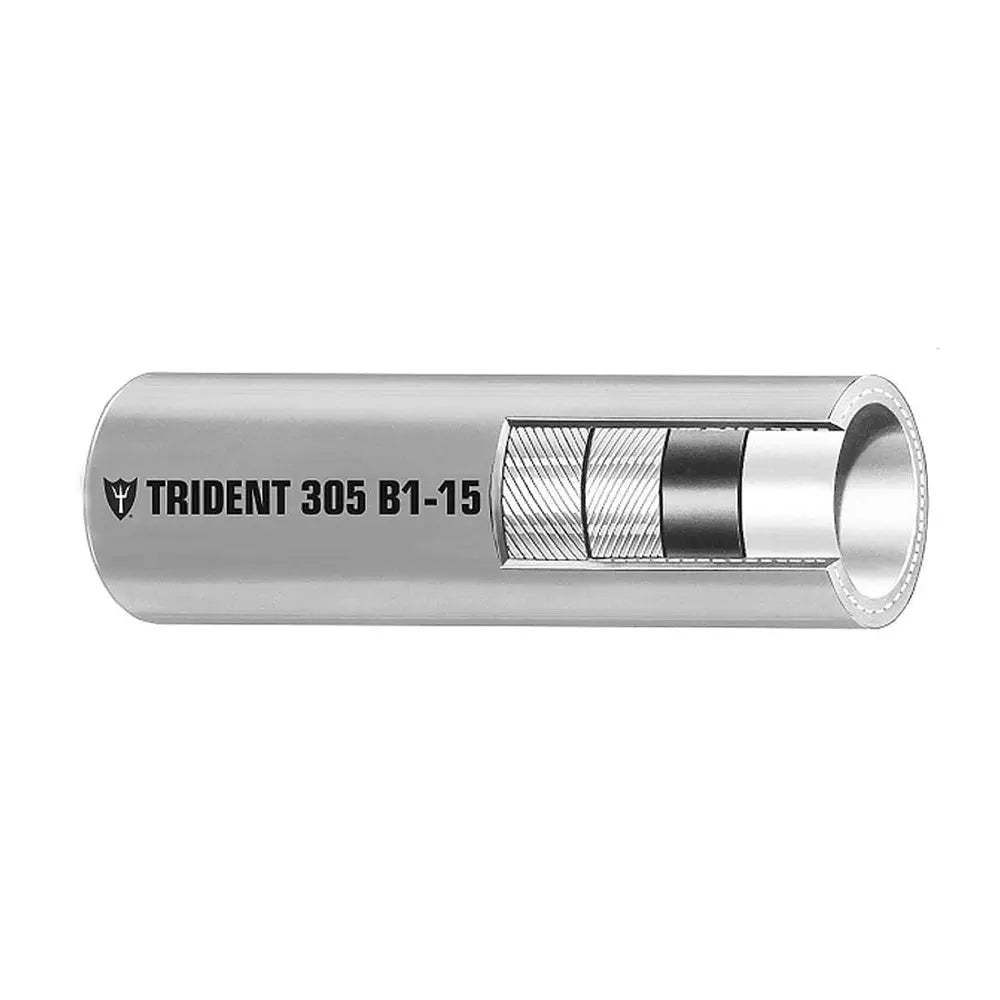

Trident Marine 3/8 inch x 50 ft Barrier Lined Outboard Fuel Line Hose - Gray, EPA Compliant

3/8" x 50' Boxed Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose - Gray

This hose is built with the best fuel and age-resistant formulations and a unique "Barrier Liner" on the inside surface of the tube, so the fuel is not in direct contact with rubber. This greatly reduces fuel permeation and prevents ethanol degradation of the rubber tube, which can cause small pieces of rubber to reach and damage the engine. That is particularly important considering the prospect of higher ethanol blends (E-15) available at gas stations next year.

Features:

• Provides extraordinary resistance to fuel permeation, aging, heat, cold, and ozone
• Also, provides excellent rope-like bend-ability and fitting retention
• For both gasoline (including ethanol blends up to E85) and diesel (including bio diesel blends up to 100%)
• EPA Certified and CARB Executive Order for low permeation Type B1-15
• NMMA Type Accepted CE certified

Application:

• Marine Fuel Hose for distribution, return, vent and transfer
• For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel

Construction:

• Tube: Fluoroplastic Internal Barrier
• Cover: Gray CPE Rubber
• Reinforcement: 2-Spiral Polyester Plies
• TemperatureRange:-20F to 212F (-28C to 100C)
• Length: 50 (15m) Boxed

Specifications:

• Inner Diameter: (inch) 3/8" / (mm) 9.50
• Outer Diameter: (inch) 0.588 / (mm) 14.9
• Burst Pressure: (psi) 175 / (mpa) 1.21
• Working Pressure: (psi) 35 / (mpa) 0.24
• Bend Radius: (inch) 4" / (mm) 101.6
• Weight: (lb/100 ft.) 10.5 / (kg/m) 0.156
• Permeation Rate (Standard is (15g/m^2/24hrs (CE10)): 5.0

*The #305 series exceeds ABYC H-24, SAE J1527, ISO 8469 B1, USCG Type B1-15

The Trident Marine 305-0386 fuel line hose is designed for reliable marine fuel delivery with advanced features to ensure safety and durability. Constructed with a fluoroplastic internal barrier liner, this hose prevents fuel permeation and ethanol degradation, maintaining engine integrity and reducing emissions. Its resistant formulation withstands aging, temperature fluctuations, ozone exposure, and fuel additives, making it suitable for both gasoline (including E85 and ethanol blends) and diesel (including bio-diesel blends). The hose's flexibility and excellent fitting retention facilitate easy installation and secure connections in marine environments. Certified by EPA and CARB, as well as NMMA and CE standards, it meets strict environmental and safety regulations for marine fuel systems. The reinforced construction with two spiral polyester plies provides strength and durability while maintaining optimal bendability for complex routing aboard boats or ships. Operating efficiently within a temperature range from -20°F to 212°F, this hose is ideal for distribution, return, vent, and transfer applications involving all marine fuels. The 50-foot length offers ample reach for various configurations, and the hose's compact outer diameter ensures compatibility with standard fittings. Engineered to exceed industry standards such as ABYC H-24, SAE J1527, ISO 8469 B1, and USCG Type B1-15, the Trident Marine fuel hose is a dependable choice for marine fuel systems requiring low permeation and high performance.

Features:

• Provides exceptional resistance to fuel permeation, aging, heat, cold, and ozone

• Flexible with rope-like bendability and reliable fitting retention

• Suitable for gasoline (including ethanol blends up to E85) and diesel (including bio-diesel blends up to 100%)

• EPA Certified and CARB compliant for low permeation standards

• NMMA Type Accepted and CE certified for marine applications
