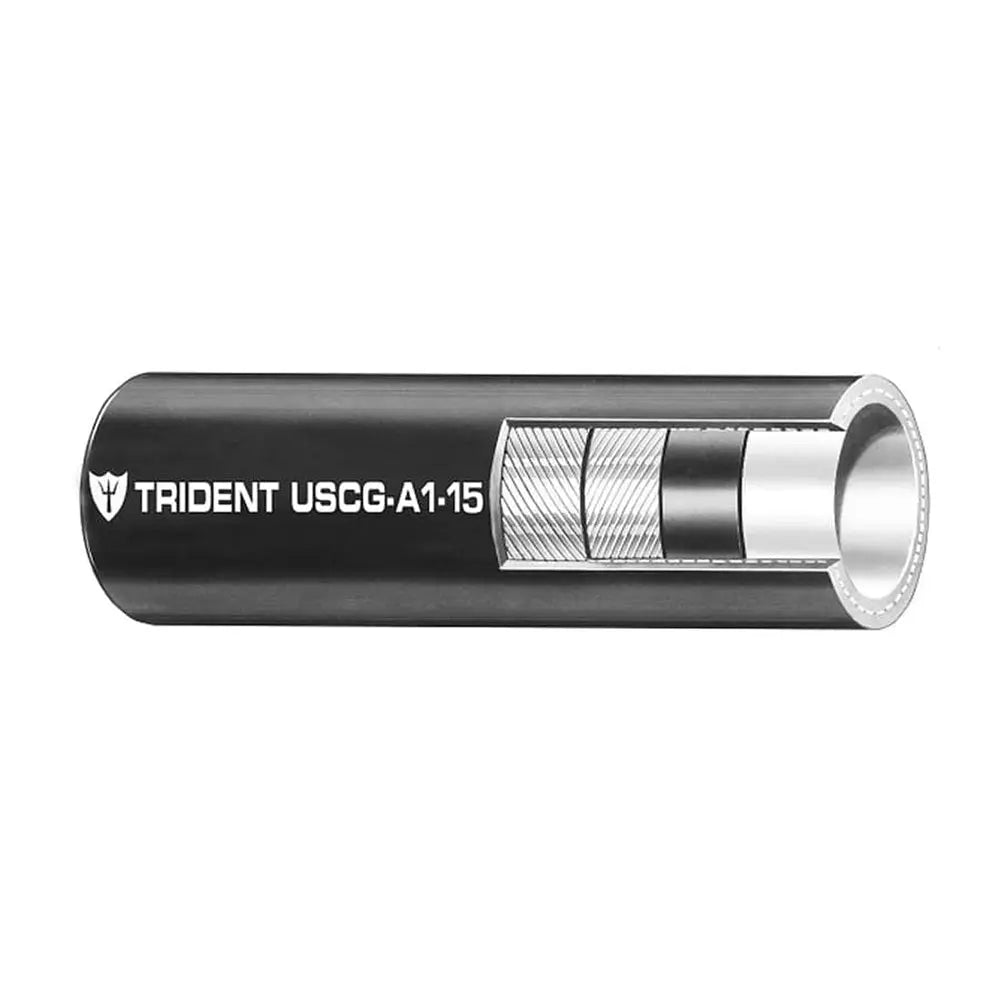

Trident Marine 3/8 inch x 50 ft Low Permeation Type A1-15 Fuel Line Hose - Black

3/8" x 50' Boxed Low Permeation Type A1-15 Fuel Line Hose - Black

Trident Barrier Lined A1-15 Fuel Hose for both gasoline (including ethanol blends up to 85%) and diesel (including bio diesel blends up to B100). This hose is built with the best fuel, fire, and age-resistant formulation, and a unique "Barrier Liner" on the inside surface of the tube, so fuel is not in direct contact with rubber.

Features:

• Provides extraordinary resistance to fuel permeation, aging, and also to fire, heat, cold, and the ozone
• Also provides excellent bend-ability
• NMMA Type Accepted CE certified

Application:

• Marine Fuel Hose (distribution, return, vent and transfer)
• For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel

Construction:

• Tube: Nylon Internal Barrier, NBR
• Cover: NBR/PVC Blend
• Reinforcement: Polyester 2 spiral
• Temperature Range: -20F to 212F (-28C to 100C)
• Length: 50 ft. (15 m) Boxed

Specifications:

• Inner Diameter: (inch) 3/8" / (mm) 9.50
• Outer Diameter: (inch) 0.681 / (mm) 17.3
• Burst Pressure: (psi) 400 / (mpa) 2.76
• Working Pressure: (psi) 100 / (mpa) 0.69
• Bend Radius: (inch) 2" / (mm) 50.8
• Weight: (lb/100 ft.) 15.6 / (kg/m) 0.233
• Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10)

*The #365 series exceeds ABYC H-24 H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and EPA Certified low permeation Type A1-10

The Trident Marine 3/8 inch x 50 ft Low Permeation Type A1-15 Fuel Line Hose is engineered for demanding marine fuel transfer applications, offering superior resistance to fuel permeation, aging, and environmental factors. Constructed with a nylon internal barrier and reinforced with two polyester spirals, this hose ensures optimal durability and flexibility for both gasoline and diesel fuels, including ethanol blends up to 85% and bio-diesel blends up to B100. Its unique barrier liner prevents fuel contact with rubber, reducing permeation rates and meeting stringent industry standards, making it suitable for distribution, return, vent, and transfer lines on boats and marine vessels.

Designed for versatility and reliability, the hose features a NBR/PVC blend cover that withstands exposure to fire, heat, cold, and ozone, ensuring longevity in harsh marine environments. Its excellent bendability allows for easy installation in tight spaces, while the temperature range from -20°F to 212°F (-28°C to 100°C) accommodates a variety of operating conditions. The hose’s specifications include an inner diameter of 3/8 inch (9.50 mm), an outer diameter of approximately 0.68 inches (17.3 mm), and a burst pressure of 400 psi, with a working pressure of 100 psi, making it suitable for high-pressure fuel transfer tasks.

Certified and accepted by NMMA and CE, the Trident Marine fuel hose exceeds multiple industry standards including ABYC H-24, H-33, SAE J1527, ISO 7840, USCG Type A1-15, CARB EO RM-17-008, and EPA low permeation standards. Its construction features a nylon internal barrier, NBR tube, NBR/PVC cover, and polyester reinforcement, ensuring durability and resistance in marine environments. Whether used for fuel distribution or venting, this 50-foot boxed hose provides a reliable solution for marine fuel systems, blending performance with compliance and safety.

Features:

• Provides extraordinary resistance to fuel permeation, aging, fire, heat, cold, and ozone

• Designed with a nylon internal barrier and reinforced with two polyester spirals for durability

• Excellent bendability for easy installation in tight spaces

• Certified by NMMA and CE, exceeding industry standards including ABYC H-24, H-33, SAE J1527, ISO 7840, USCG Type A1-15, and EPA low permeation standards

• Suitable for a wide range of marine fuels including gasoline, ethanol blends, diesel, and bio-diesel
