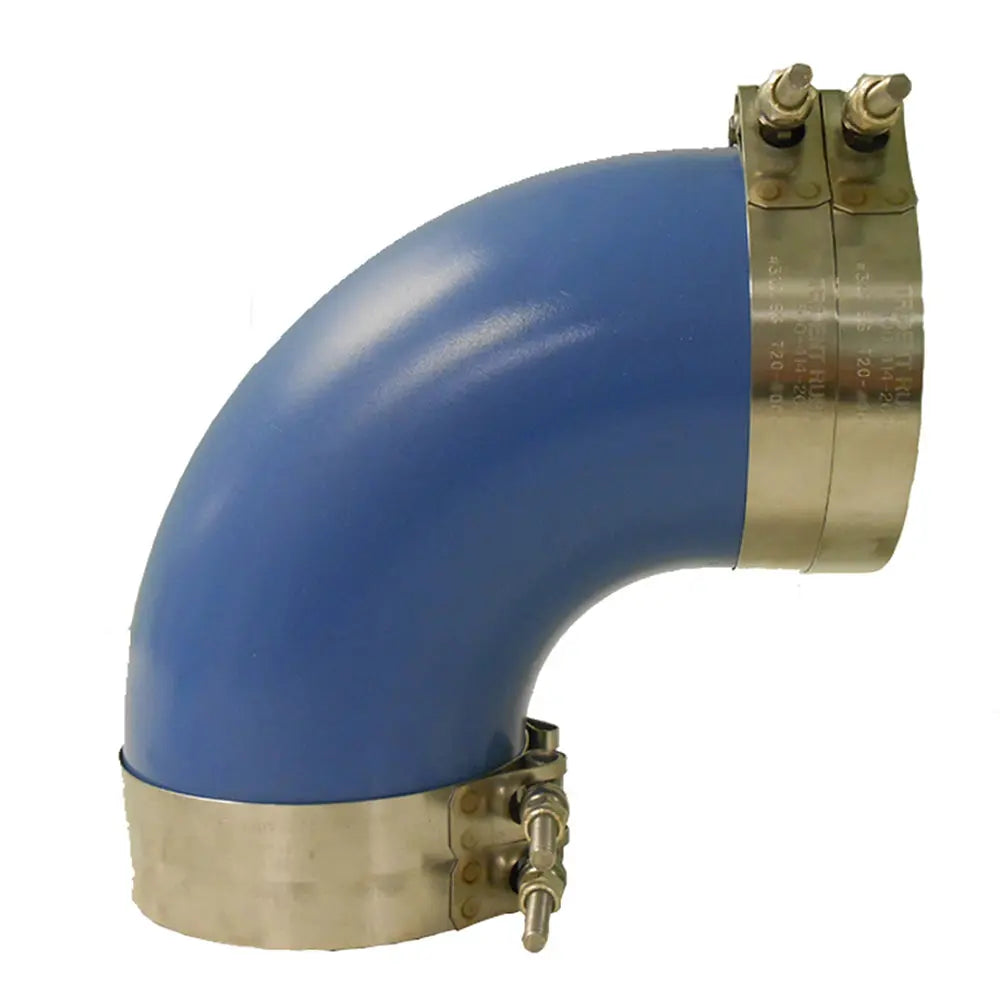

Trident Marine 3-Inch Blue Silicone Molded Wet Exhaust Elbow with T-Bolt Clamps

3" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover.

Features:

• Four stainless steel t-bolt clamps
• Very high temp silicone/EDPM blend rubber - molded
• This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC NMMA P-1) exhaust standards
• Blue very high-temperature silicone blended with EDPM rubber at 350F (177C) max continuous

Construction:

• Color: Blue
• Temperature Range: up to 350F (177C)

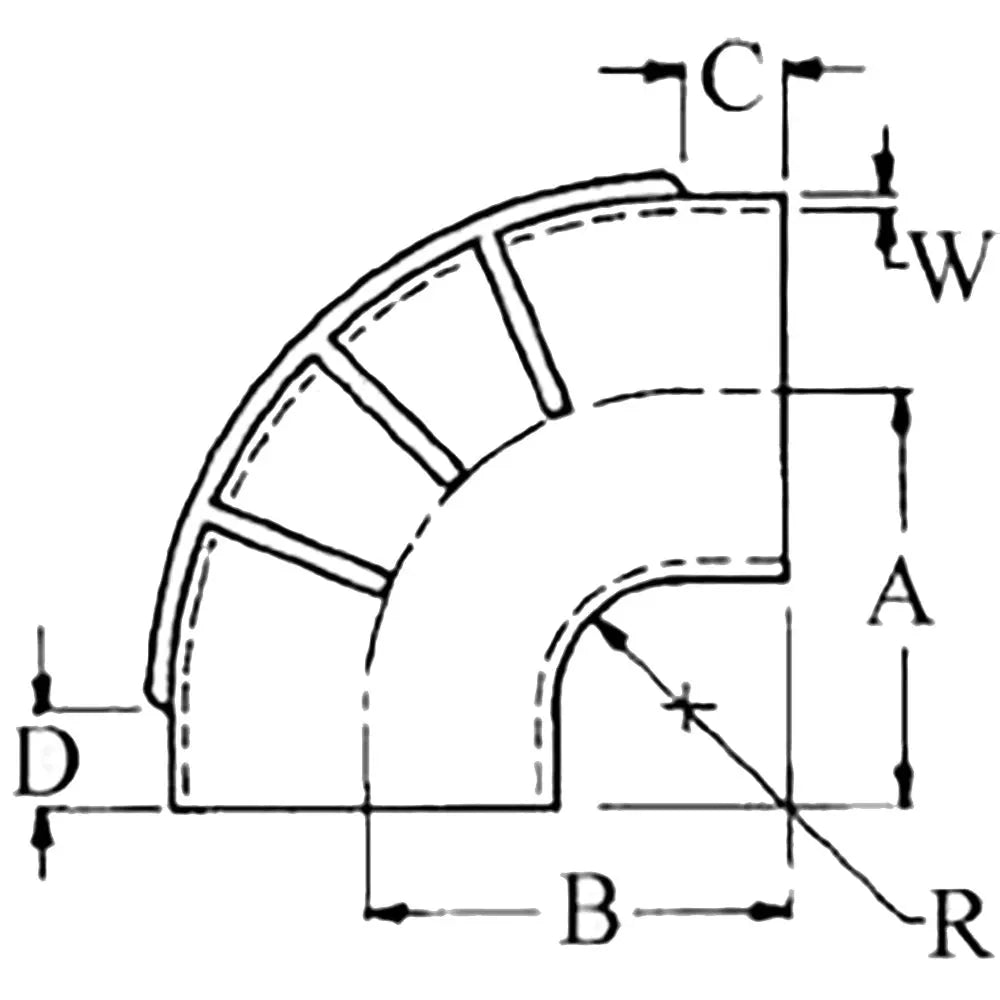

Specifications:

• Inner Diameter: (inch) 3 / (mm) 76.2
• A: (inch) 5.25 / (mm) 133
• B: (inch) 5.25 / (mm) 133
• C: (inch) 1.75 / (mm) 44.4
• D: (inch) 1.50" / (mm) 38.1
• R: (inch) 2 / (mm) 50.8
• W: (inch) 0.25" / (mm) 6.4
• Elbow Degree: 90 degrees

The Trident Marine 3-inch ID Blue Silicone Molded Wet Exhaust Elbow with four stainless steel T-bolt clamps offers a durable and high-performance solution for marine exhaust systems. Crafted from high-temperature blue silicone EPDM blended rubber, this elbow is designed to withstand harsh marine environments, including exposure to salt water, ozone, diesel fumes, and extreme temperatures up to 350°F (177°C). Its molded construction provides a smooth bore for efficient exhaust flow while ensuring long-lasting resilience against aging, splash, cold, and heat. This product exceeds industry standards such as SAE J2006-R1 and ABYC NMMA P-1, ensuring compliance with rigorous safety and performance benchmarks. The blue silicone blend not only enhances durability but also adds a vibrant aesthetic to your marine setup. Designed with a 90-degree bend, it facilitates optimal routing of exhaust systems in tight spaces while maintaining reliable seal integrity. The package includes four stainless steel T-bolt clamps, which provide secure fastening and easy installation. The elbow features an inner diameter of 3 inches, with precise dimensions to fit standard marine exhaust configurations. Its high-temperature silicone/EPDM rubber compound ensures continuous operation at temperatures up to 350°F, making it suitable for high-performance applications. Whether upgrading an existing exhaust system or installing new components, this marine exhaust elbow delivers exceptional performance, durability, and compliance for demanding marine environments.

Features:

• Four stainless steel T-bolt clamps for secure installation

• Molded in very high-temperature blue silicone/EPDM blend rubber for durability

• Excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging

• Exceeds SAE J2006-R1 and ABYC NMMA P-1 exhaust standards

• Maximum continuous temperature of 350°F (177°C)

• 90-degree elbow for optimal exhaust routing

• Smooth bore design for efficient exhaust flow

• Vibrant blue color for aesthetic appeal
