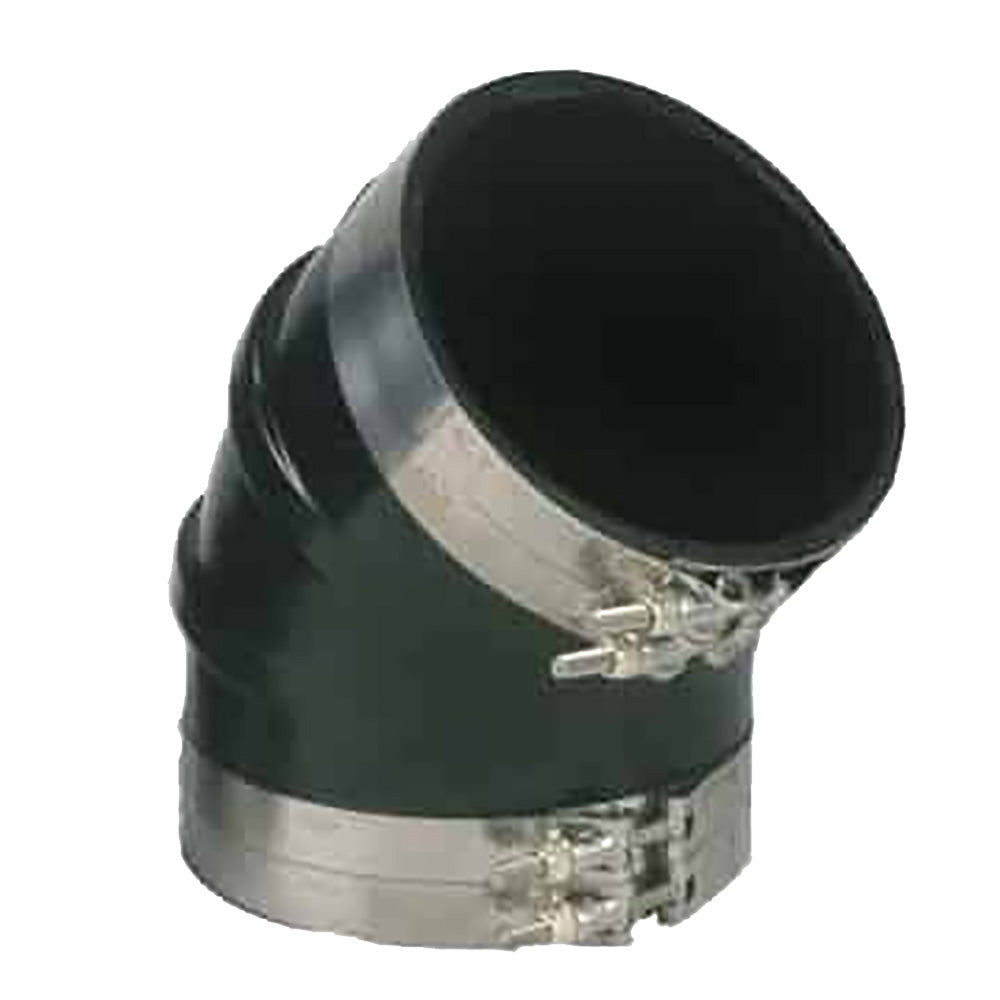

Trident Marine 3-Inch ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with T-Bolt Clamps

3" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6 I.D. or bigger have molded reinforcing ribs on the outside.

Features:

• Four stainless steel clamps are included
• This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC NMMA P-1 exhaust standards)
• Black high-temp EDPM rubber

Construction:

• Color: Black
• Reinforcement: Reinforcing ribs on 6 I.D. and above
• Temperature Range: up to 250F (121C)

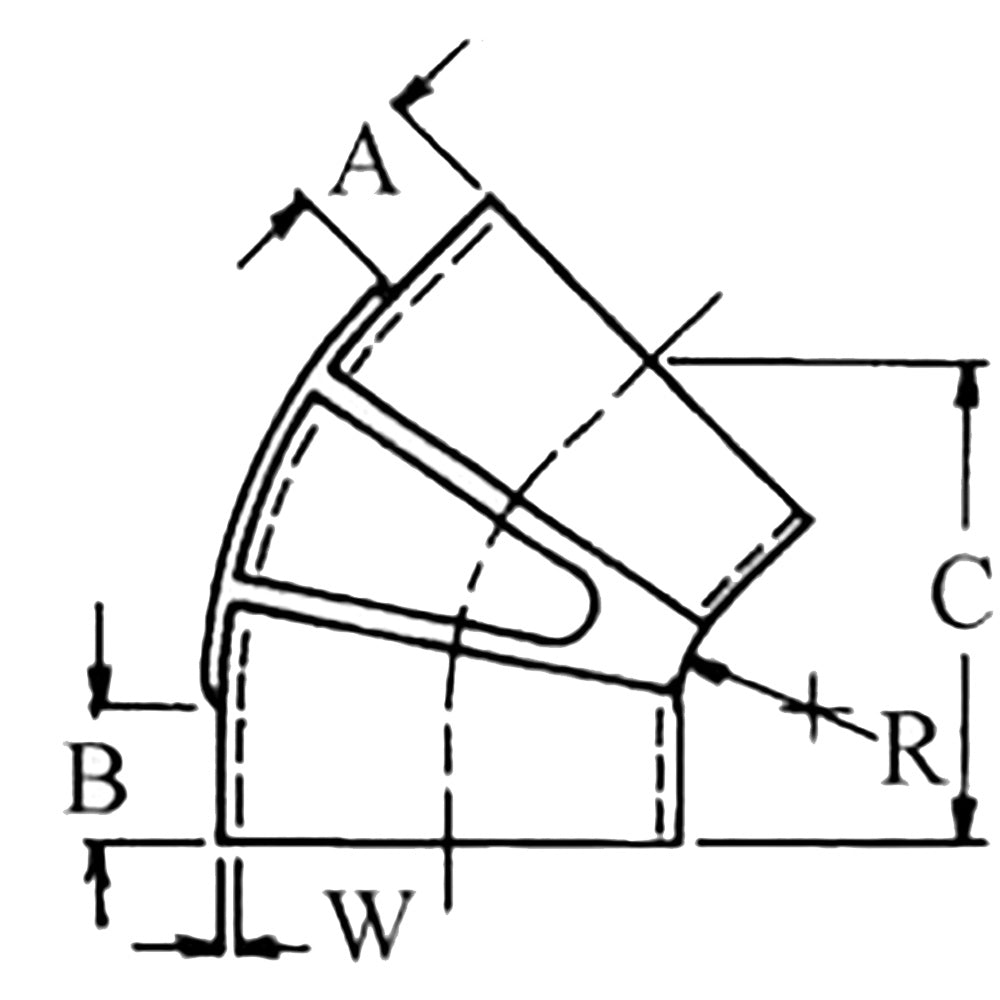

Specifications:

• Inner Diameter: (inch) 3 / (mm) 76.2
• Outer Diamter: (inch) 3.5" / (mm) 88.9
• A: (inch) 1.5 / (mm) 38.1
• B: (inch) 1.5 / (mm) 38.1
• C: (inch) 5.5 / (mm) 139.7
• W: (inch) 0.25 / (mm) 6.35
• Elbow Degree: 45 degrees
• Weight: (Lb/Ea) 0.6 / (Kg/Ea) 0.27

The Trident Marine TRL-345-S/S 3-inch ID 45-degree EPDM black rubber molded wet exhaust elbow is designed for reliable marine exhaust systems. Crafted from high-temperature EPDM rubber, this elbow features a smooth bore and molded cover, ensuring durability and a secure fit. Reinforcing ribs are molded onto elbows with an inner diameter of 6 inches or larger to provide additional strength against harsh marine environments. The black high-temp EPDM rubber offers excellent resistance to ozone, saltwater, diesel fumes, splashes, cold, heat, and aging, making it suitable for demanding marine applications. This exhaust elbow exceeds SAE J2006-R1 and ABYC NMMA P-1 standards, ensuring compliance with industry safety and performance benchmarks. Included with the elbow are four stainless steel T-bolt clamps for a secure and tight connection, simplifying installation and maintenance. The elbow's temperature tolerance extends up to 250°F (121°C), accommodating high-performance marine exhaust systems. Its compact design allows for versatile routing, with an outer diameter of 3.5 inches and an inner diameter of 3 inches, providing an effective bend radius for exhaust flow management. Weighing only approximately 0.6 pounds per piece, this component offers a lightweight yet durable solution for marine exhaust systems, ensuring long-lasting performance and resistance to environmental stressors. Whether replacing an existing part or installing a new exhaust system, the Trident Marine 45-degree rubber elbow provides a dependable, high-quality connection optimized for marine environments.

Features:

• Four stainless steel T-bolt clamps included for secure installation

• High-temperature EPDM rubber construction with excellent ozone, saltwater, and chemical resistance

• Designed to withstand temperatures up to 250°F (121°C)

• Reinforcing ribs molded onto elbows with 6-inch or larger inner diameter for added durability

• Exceeds industry safety and performance standards (SAE J2006-R1, ABYC NMMA P-1)
