Trident Marine 3-Inch ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with T-Bolt Clamps

Trident Marine 3-Inch ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with T-Bolt Clamps

Regular price $65.99 USD
Sale price $65.99 USD Regular price
Sale Sold out
Shipping calculated at checkout.

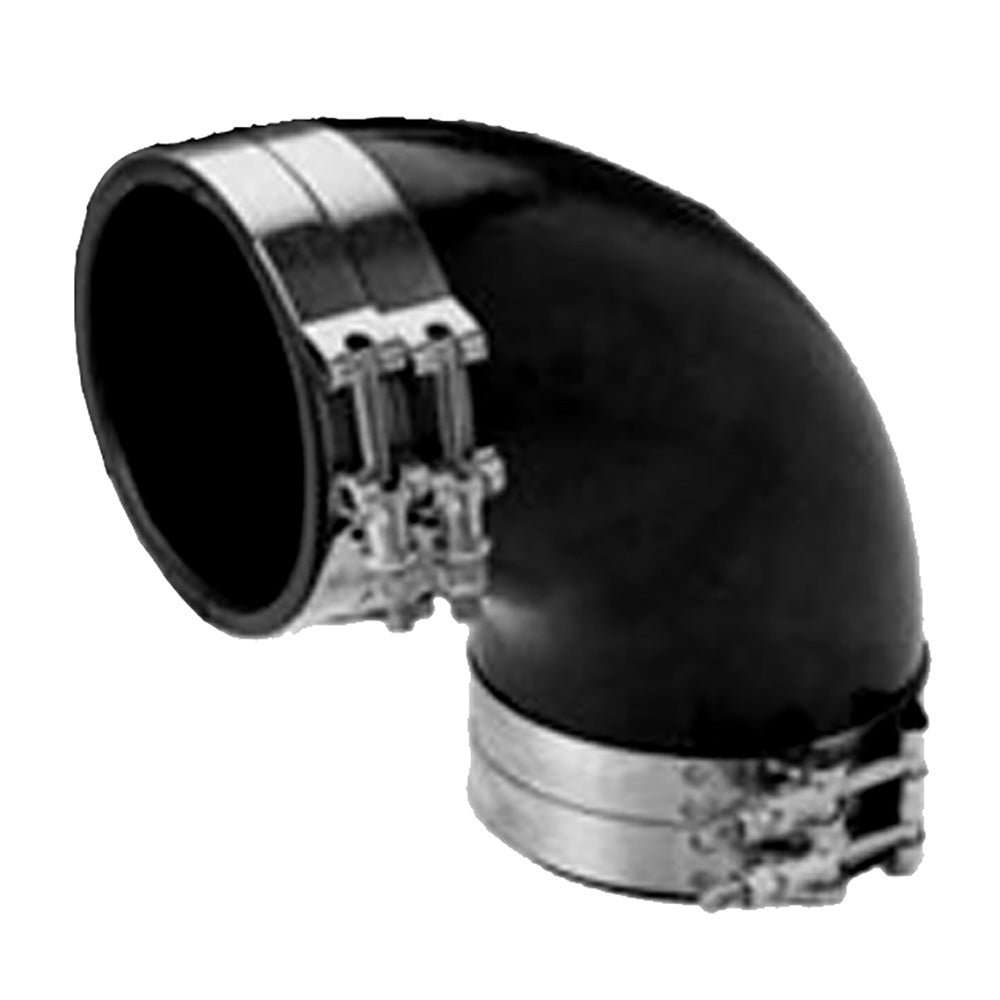

3" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6 I.D. or bigger have molded reinforcing ribs on the outside.

Features:

  • Four stainless steel clamps are included
  • This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
  • Exceeds (SAE J2006-R1, and ABYC NMMA P-1 exhaust standards)
  • Black high-temp EDPM rubber

Construction:

  • Color: Black
  • Reinforcement: Reinforcing ribs on 6 I.D. and above
  • Temperature Range: up to 250F (121C)

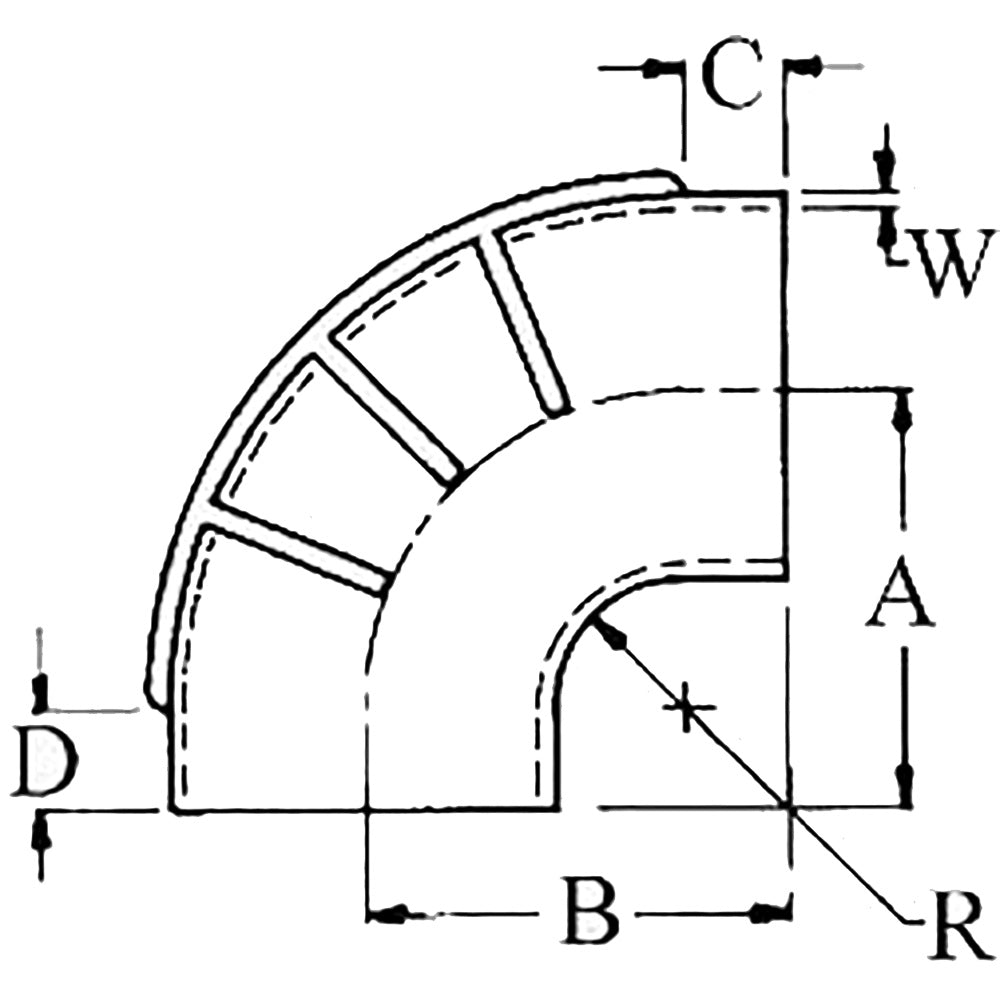

Specifications:

  • Inner Diameter: (inch) 3 / (mm) 76.2
  • A: (inch) 5.25" / (mm) 133
  • B: (inch) 5.25 / (mm) 133
  • C: (inch) 1.75 / (mm) 44.4
  • D: (inch) 1.75 / (mm) 44.4
  • R: (inch) 2 / (mm) 50.8
  • W: (inch) 0.25 / (mm) 6.4
  • Elbow Degree: 90 degrees

The Trident Marine TRL-390-S/S is a durable 3-inch inner diameter 90-degree exhaust elbow designed for marine applications. Crafted from high-temperature black EPDM rubber, this molded wet exhaust elbow features a smooth bore for optimal exhaust flow and includes four stainless steel T-bolt clamps for secure installation. Its construction is reinforced with external ribs on elbows of 6 inches or larger, providing added strength and resistance to environmental stresses. This elbow is engineered to withstand harsh marine conditions, including exposure to saltwater, ozone, diesel fumes, and extreme temperatures up to 250°F (121°C). Its high-quality material offers excellent resistance to aging, cold, and heat, ensuring long-lasting performance and reliability in demanding marine environments. Compliant with SAE J2006-R1 and ABYC NMMA P-1 standards, this fitting guarantees safety and quality for your marine exhaust system. Designed for easy installation, the elbow’s dimensions facilitate compatibility with standard marine exhaust plumbing, making it a versatile component for engine exhaust systems, marine vessels, and other watercraft applications. Whether replacing an existing component or installing a new exhaust system, the Trident Marine rubber elbow provides a secure, durable connection that resists corrosion and wear over time, ensuring your vessel operates efficiently and safely. Invest in this high-quality marine exhaust elbow to maintain optimal engine performance while protecting against environmental damage and ensuring compliance with industry standards.

Features:

  • Includes four stainless steel T-bolt clamps for secure installation
  • Constructed from high-temperature black EPDM rubber for excellent durability
  • Reinforced with external ribs on elbows of 6 inches or larger for added strength
  • Resistant to ozone, saltwater, diesel fumes, cold, heat, and aging
  • Exceeds SAE J2006-R1 and ABYC NMMA P-1 exhaust standards
  • Temperature range up to 250°F (121°C), suitable for demanding marine environments

Only 4 piece in stock!
