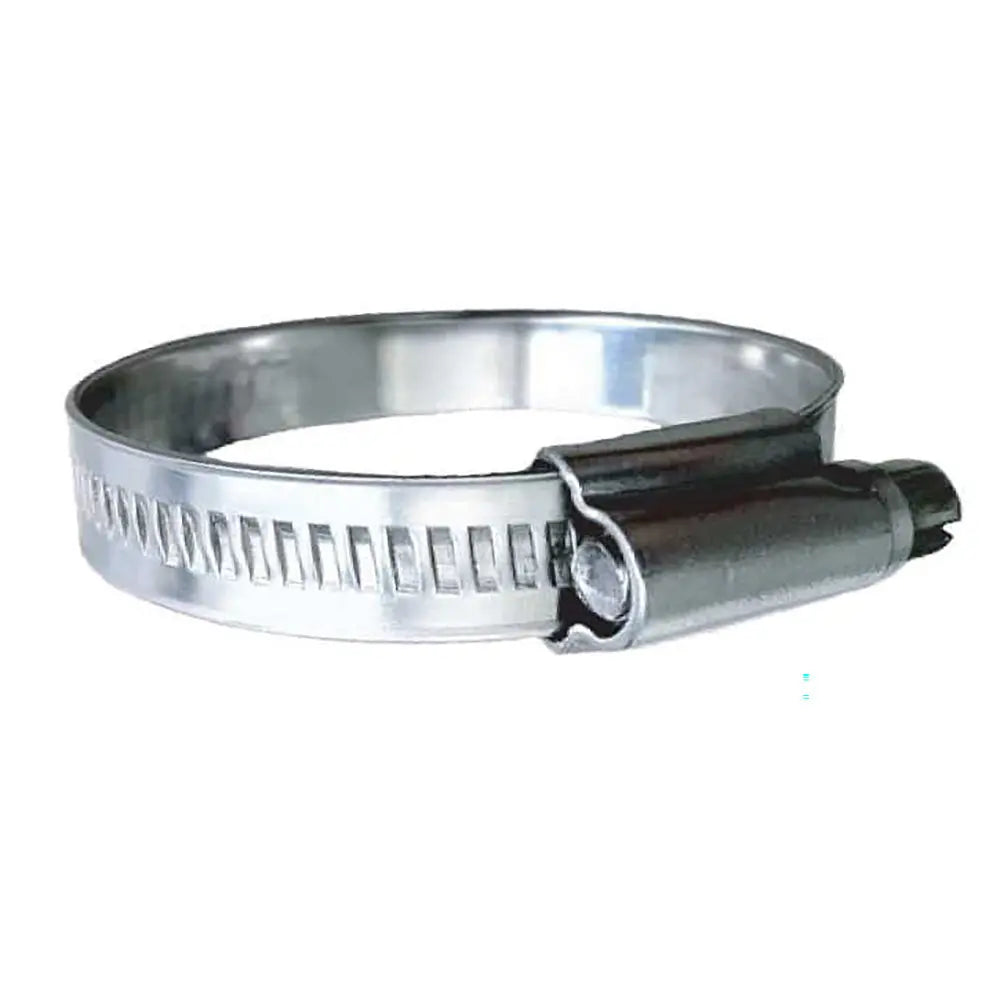

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 15/32 Inch Band, SAE Size 24, 10-Pack

316 SS Non-Perforated Worm Gear Hose Clamp - 15/32 Band - (1-1/2 - 2) Clamping Range - 10-Pack - SAE Size 24

Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel HD NON-PERF Worm Gear Hose Clamp. The 11.7 mm (0.46) wide band is Non-Perforated and Smooth on the inside with Rolled Edges. This eliminates hose damage with increased clamping force. The High Strength, Compact, One Piece 16mm (0.63) wide Housing provides one of the highest clamping force ratings of any worm gear style clamp.

Features:

• The screw head is 7mm
• Long service life and safety for most general-purpose hose applications and connections

Recommendations:

• Measure hose O.D. before selecting clamp size for proper fit
• Double clamp on each hose end for critical applications
• Consider using our #720 Series wide band 316 SS T-Bolt Clamps for larger I.D. hoses (i.e. Exhaust Hose, etc.)

Construction:

• Band Housing: 316 Stainless Steel 11.7 mm wide band 0.9mm thick
• Screw Drive: 316 Stainless Steel 7.0 mm screw head

Specifications:

• SAE Size: 24
• Hose Inner Diameter: (inch) 1-5/16 - 1-3/8
• Clamping Range: (inch) 1-1/2 - 2 / (mm) 38-50
• Recommended Torque Inch lbs: 35-45

The Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp is designed for reliable performance in marine and industrial applications. Crafted from high-quality AISI 316 stainless steel, this clamp offers high tensile strength for durable, long-lasting secure connections. The 15/32-inch wide band features a smooth, non-perforated surface with rolled edges, which helps prevent hose damage while providing increased clamping force for a secure fit. The compact, one-piece housing measures 16mm wide and delivers some of the highest clamping force ratings among worm gear clamps, making it suitable for a wide range of hoses and connections in demanding environments. This 10-pack of clamps is ideal for assembling or repairing hoses with an inner diameter of approximately 1-3/8 to 1-5/16 inches, corresponding to SAE size 24, and clamping ranges from 1-1/2 to 2 inches. The screw head measures 7mm, allowing for easy tightening with standard tools, and the clamps are recommended for use in general-purpose applications requiring safety and durability. Proper installation involves measuring hose outer diameter accurately and considering double clamping for critical connections. For larger hoses such as exhaust or heavy-duty applications, the Trident Marine #720 Series wide band T-Bolt Clamps are recommended. Constructed with a 0.9mm thick stainless steel band and a 7mm screw drive, these clamps ensure a secure, corrosion-resistant fit for marine and industrial hoses. They are ideal for environments where strength, corrosion resistance, and reliability are essential, providing peace of mind during operation and maintenance.

Features:

• Wide 15/32-inch band with smooth, non-perforated surface and rolled edges to prevent hose damage

• High tensile strength AISI 316 stainless steel construction for durability and corrosion resistance

• Compact, one-piece 16mm wide housing delivers high clamping force

• Screw head size of 7mm allows for easy tightening with standard tools

• Designed for hoses with an inner diameter of approximately 1-3/8 to 1-5/16 inches

• Clamping range of 1-1/2 to 2 inches (38-50mm), SAE size 24

• Recommended torque of 35-45 inch lbs for secure installation

• Sold in a pack of 10 clamps for versatile use and maintenance
