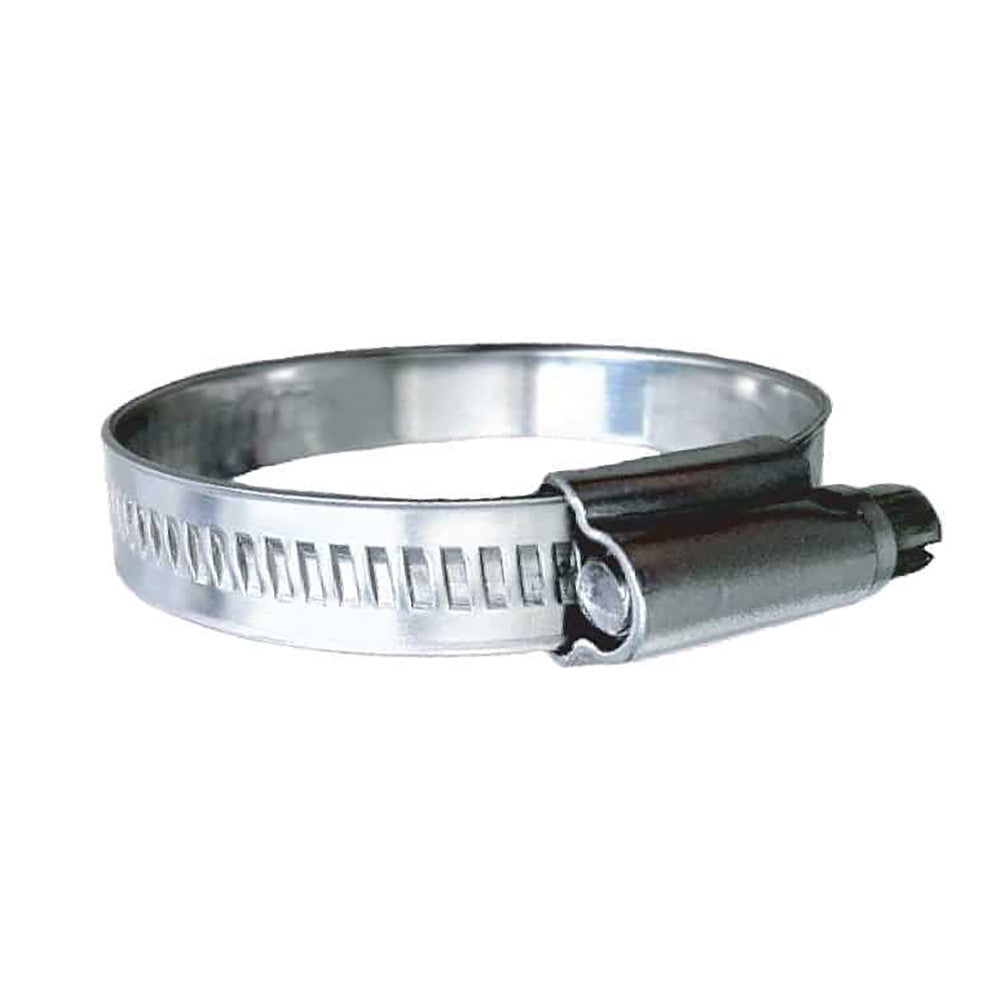

Trident Marine 316 Stainless Steel Non-Perforated Worm Gear Hose Clamp - 15/32 Inch Band, SAE Size 12, Pack of 10

316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (7/8" 1-1/4") Clamping Range - 10-Pack - SAE Size 12

Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel HD NON-PERF Worm Gear Hose Clamp. The 11.7 mm (0.46) wide band is Non-Perforated and Smooth on the inside with Rolled Edges. This eliminates hose damage with increased clamping force. The High Strength, Compact, One Piece 16mm (0.63) wide Housing provides one of the highest clamping force ratings of any worm gear style clamp.

Features:

• The screw head is 7mm
• Long service life and safety for most general-purpose hose applications and connections

Recommendations:

• Measure hose O.D. before selecting clamp size for proper fit
• Double clamp on each hose end for critical applications
• Consider using our #720 Series wide band 316 SS T-Bolt Clamps for larger I.D. hoses (i.e. Exhaust Hose, etc.)

Construction:

• Band Housing: 316 Stainless Steel 11.7 mm wide band 0.9mm thick
• Screw Drive: 316 Stainless Steel 7.0 mm screw head

Specifications:

• SAE Size: 12
• Hose Inner Diameter: (inch) 5/8" 1-1/8"
• Clamping Range: (inch) 7/8" 1-1/4" / (mm) 22-32
• Recommended Torque Inch lbs: 35-45

The Trident Marine 316 Stainless Steel Non-Perforated Worm Gear Hose Clamp offers a high-quality solution for secure hose connections in marine and industrial applications. Crafted from premium AISI 316 stainless steel, this clamp provides high tensile strength and corrosion resistance, ensuring durability in harsh environments. Its 15/32 inch wide band is smooth on the inside with rolled edges, which helps prevent hose damage while maintaining a firm grip. The compact design features a 16mm (0.63 inch) wide housing that delivers one of the highest clamping force ratings among worm gear clamps, making it suitable for a wide range of hose sizes.

This clamp is designed with a 7mm screw head for easy tightening and adjustments, and it is ideal for hoses with an inner diameter ranging from 7/8 inch to 1-1/4 inch (22mm to 32mm). The robust construction ensures long service life and reliable performance in general-purpose hose applications. For critical connections, it is recommended to double clamp each hose end to prevent leaks and ensure a secure seal. For larger hoses, such as exhaust or high I.D. applications, consider using the Trident Marine #720 Series wide band T-bolt clamps.

Installation should involve proper measurement of the hose's outer diameter to select the correct clamp size. Recommended torque settings are between 35-45 inch-pounds to achieve optimal clamping force without damaging the hose or clamp. Each pack contains ten clamps, providing ample supply for multiple applications. The non-perforated, smooth band design combined with high-grade stainless steel makes this clamp a reliable choice for demanding environments where corrosion resistance and strength are paramount.

Features:

• Band Width: 15/32 inch for secure grip and minimal hose damage

• Material: Premium AISI 316 stainless steel for corrosion resistance and strength

• Housing: Compact 16mm (0.63 inch) wide, high clamping force design

• Screw Head: 7mm for easy tightening and adjustment

• Clamping Range: 7/8 inch to 1-1/4 inch (22mm to 32mm) hose inner diameter

• Smooth, non-perforated band with rolled edges to prevent hose damage

• Long-lasting construction suitable for marine and industrial use

• Pack Size: 10 clamps for versatile applications

• Recommended Torque: 35-45 inch-pounds for optimal fastening
