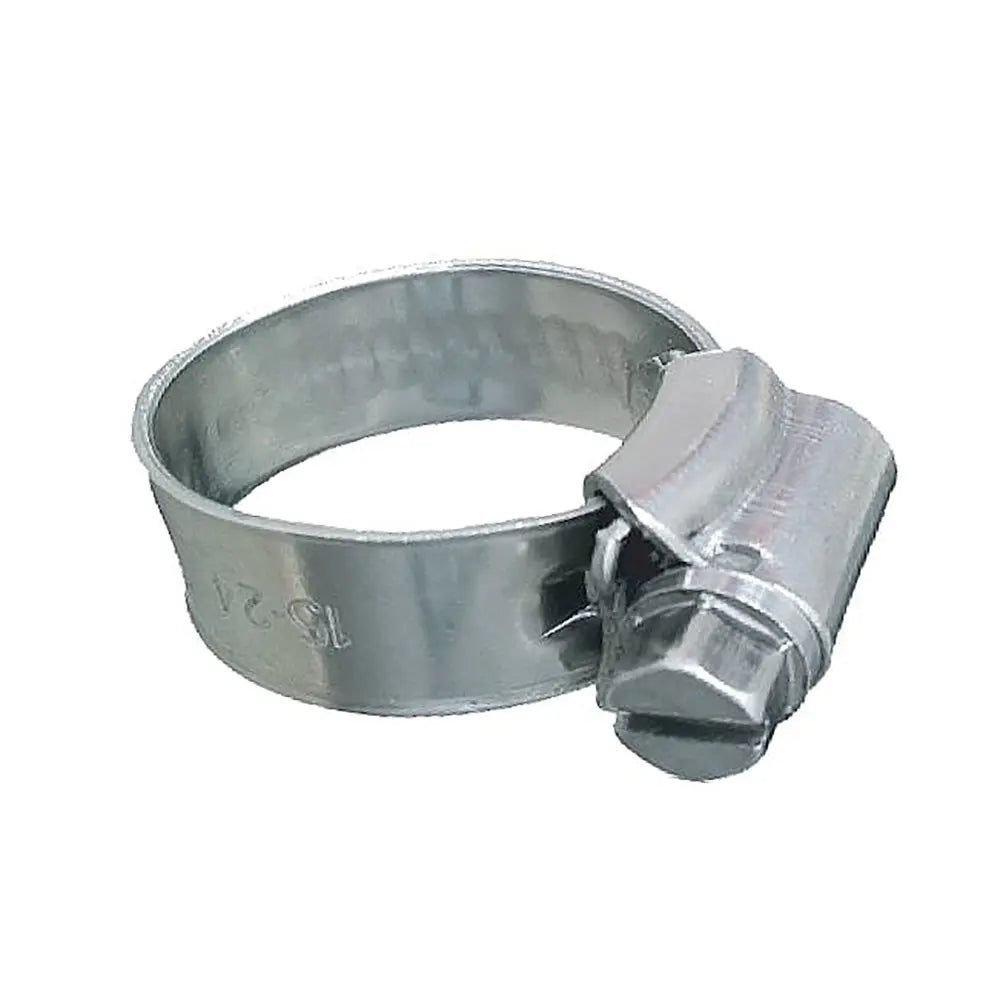

Trident Marine 316 Stainless Steel Non-Perforated Worm Gear Hose Clamp - 3/8 Inch Band, SAE Size 16, 10-Pack

316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - (1-1/16" 1-1/2") Clamping Range - 10-Pack - SAE Size 16

Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel Compact HD NON-PERF Worm Gear Hose Clamp. The 9.7 mm (0.382) wide band is Non-Perforated and smooth on the inside with rolled edges. This eliminates hose damage with increased clamping force. The high strength, compact, one-piece 14mm (0.55) wide housing provides one of the highest clamping force ratings of any worm gear style clamp.

Features:

• The screw head is 7mm
• Long service life and safety for most general-purpose hose applications and connections

Recommendations:

• Measure hose O.D. before selecting clamp size for proper fit
• Double clamp on each hose end for critical applications

Construction:

• Band Housing: 316 Stainless Steel 9.7 mm wide band 0.8mm thick
• Screw Drive: 316 Stainless Steel 7.0 mm screw head

Specifications:

• SAE Size: 16
• Hose Inner Diameter: (inch) 7/8" 1"
• Clamping Range: (inch) (1-1/16") (1-1/2") / (mm) 26-38
• Recommended Torque Inch lbs: 35-45

The Trident Marine Part Number 705-1001 is a premium marine-grade hose clamp designed for reliable performance in demanding environments. Made entirely from high tensile strength AISI 316 stainless steel, this clamp offers exceptional durability and corrosion resistance, making it ideal for marine, industrial, and heavy-duty applications. Its compact, one-piece housing features a 14mm wide construction with a 7mm screw head, providing a high clamping force that ensures secure hose connections without damaging the hose material. The 9.7mm wide band is non-perforated and smooth on the inside, with rolled edges to prevent hose abrasion while maintaining an even, tight seal. The clamp's clamping range spans from 1-1/16 inches to 1-1/2 inches, accommodating hoses with inner diameters between 7/8 inches and 1 inch.
The clamp's design emphasizes safety and longevity, with a recommended torque of 35-45 inch-pounds for optimal performance. Its SAE size 16 designation ensures compatibility with standard hose fittings. The screw drive, made from the same high-quality stainless steel, is engineered for long service life and ease of adjustment. For critical applications, double clamping on each end of the hose is recommended to prevent leaks and disconnects.
Whether used in marine plumbing, industrial machinery, or automotive systems, this clamp provides a robust, corrosion-resistant solution that stands up to harsh conditions. Proper measurement of hose outer diameter before installation ensures a perfect fit, maximizing clamping effectiveness and safety. The 10-pack configuration offers excellent value for bulk applications, providing a reliable sealing solution across multiple hoses or projects.

Features:

• Made from high tensile strength AISI 316 stainless steel for corrosion resistance and durability

• Non-perforated, smooth inner band with rolled edges prevents hose damage

• Wide 9.7mm band and 14mm housing provide high clamping force

• SAE Size 16 compatible with standard hose fittings

• Clamping range accommodates hoses from 1-1/16" to 1-1/2" inner diameter

• Screw head diameter of 7mm for easy adjustment

• Recommended torque of 35-45 inch-pounds for secure installation

• Ideal for marine, industrial, and heavy-duty applications

• Pack of 10 clamps offers cost-effective bulk solution
