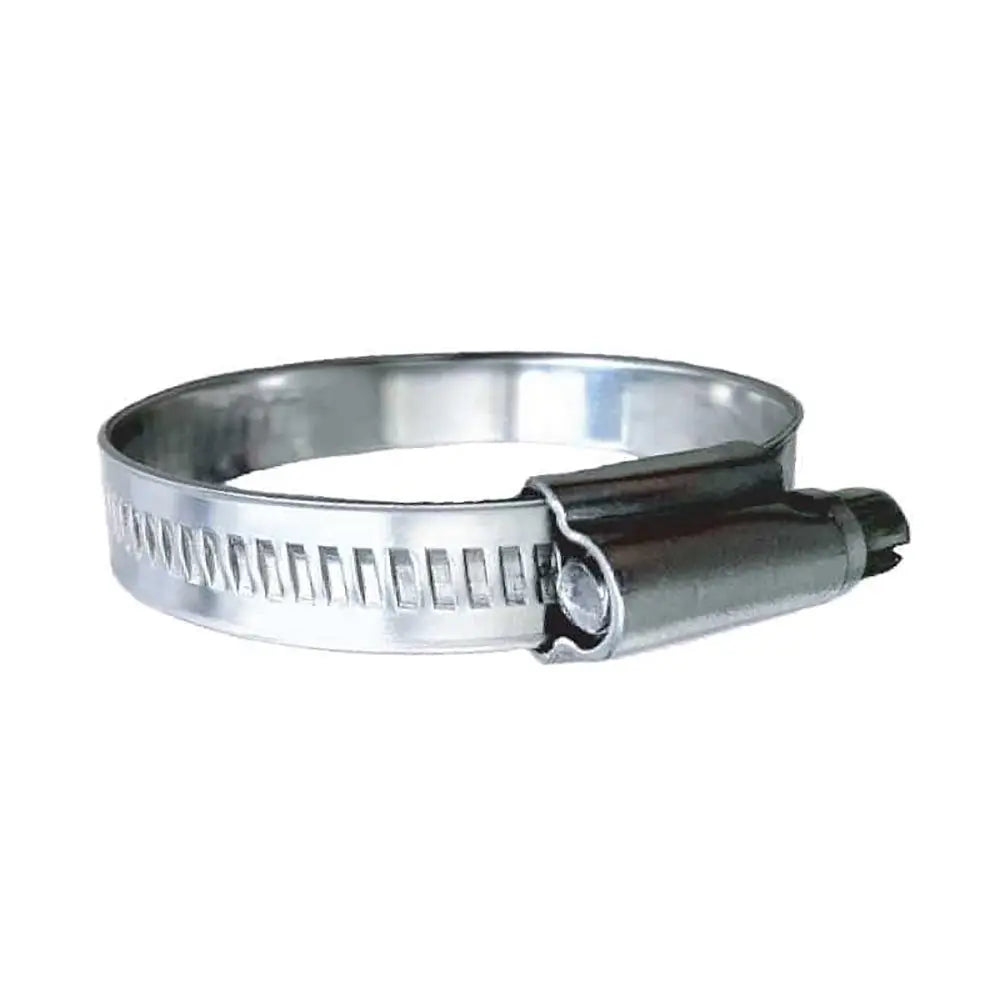

Trident Marine 316 Stainless Steel Non-Perforated Worm Gear Hose Clamp - SAE Size 10, 15/32" Band, 10-Pack

316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (3/4" 1-1/8") Clamping Range - 10-Pack - SAE Size 10

Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel HD NON-PERF Worm Gear Hose Clamp. The 11.7 mm (0.46) wide band is Non-Perforated and Smooth on the inside with Rolled Edges. This eliminates hose damage with increased clamping force. The High Strength, Compact, One Piece 16mm (0.63) wide Housing provides one of the highest clamping force ratings of any worm gear style clamp.

Features:

• The screw head is 7mm
• Long service life and safety for most general-purpose hose applications and connections

Recommendations:

• Measure hose O.D. before selecting clamp size for proper fit
• Double clamp on each hose end for critical applications
• Consider using our #720 Series wide band 316 SS T-Bolt Clamps for larger I.D. hoses (i.e. Exhaust Hose, etc.)

Construction:

• Band Housing: 316 Stainless Steel 11.7 mm wide band 0.9mm thick
• Screw Drive: 316 Stainless Steel 7.0 mm screw head

Specifications:

• SAE Size: 10
• Hose Inner Diameter: (inch) 1/2" 5/8"
• Clamping Range: (inch) 3/4" 1-1/8" / (mm) 19-28
• Recommended Torque Inch lbs: 35-45

The Trident Marine 316 Stainless Steel Non-Perforated Worm Gear Hose Clamp offers superior corrosion resistance and durability for marine and industrial applications. Crafted from high tensile strength AISI 316 stainless steel, this clamp features an 11.7 mm (0.46 inch) wide band with a smooth interior surface and rolled edges, designed to prevent hose damage while ensuring a secure fit. Its compact, one-piece housing measures 16 mm (0.63 inch) wide, providing high clamping force ratings suitable for a wide range of hoses and connections. This clamp is ideal for general-purpose applications where reliable sealing and long service life are essential. The screw head is 7 mm in diameter, allowing for easy tightening and adjustment with standard tools. Proper installation involves measuring the hose outer diameter to select the appropriate clamp size, and for critical applications, double clamping is recommended to ensure maximum security. For larger hoses such as exhaust or heavy-duty industrial lines, consider using Trident Marine’s #720 Series wide band T-bolt clamps, which offer increased clamp capacity and strength. The clamp's construction includes a 316 stainless steel band and housing, with a thickness of 0.9 mm, and a 316 stainless steel screw drive for enhanced corrosion resistance. Designed to fit hoses with inner diameters ranging from 1/2 inch to 5/8 inch and a clamping range of 3/4 inch to 1-1/8 inch, this SAE Size 10 clamp provides recommended torque values of 35-45 inch-pounds for optimal performance. Whether used in marine environments or industrial settings, this 10-pack ensures you have reliable, corrosion-resistant clamps ready for maintenance and installation tasks.

Features:

• Band Width: 11.7 mm (0.46 inch) smooth, non-perforated band with rolled edges for hose protection

• Housing: 16 mm (0.63 inch) wide, high-strength, one-piece construction for maximum clamping force

• Screw Head Diameter: 7 mm for easy tightening

• Material: All AISI 316 stainless steel for exceptional corrosion resistance and durability

• Clamping Range: 3/4 inch to 1-1/8 inch (19-28 mm) suitable for hoses with inner diameters from 1/2 inch to 5/8 inch

• SAE Size: 10, designed for secure and reliable hose connections

• Recommended Torque: 35-45 inch-pounds for optimal clamping force

• Long-lasting performance in marine and industrial environments
