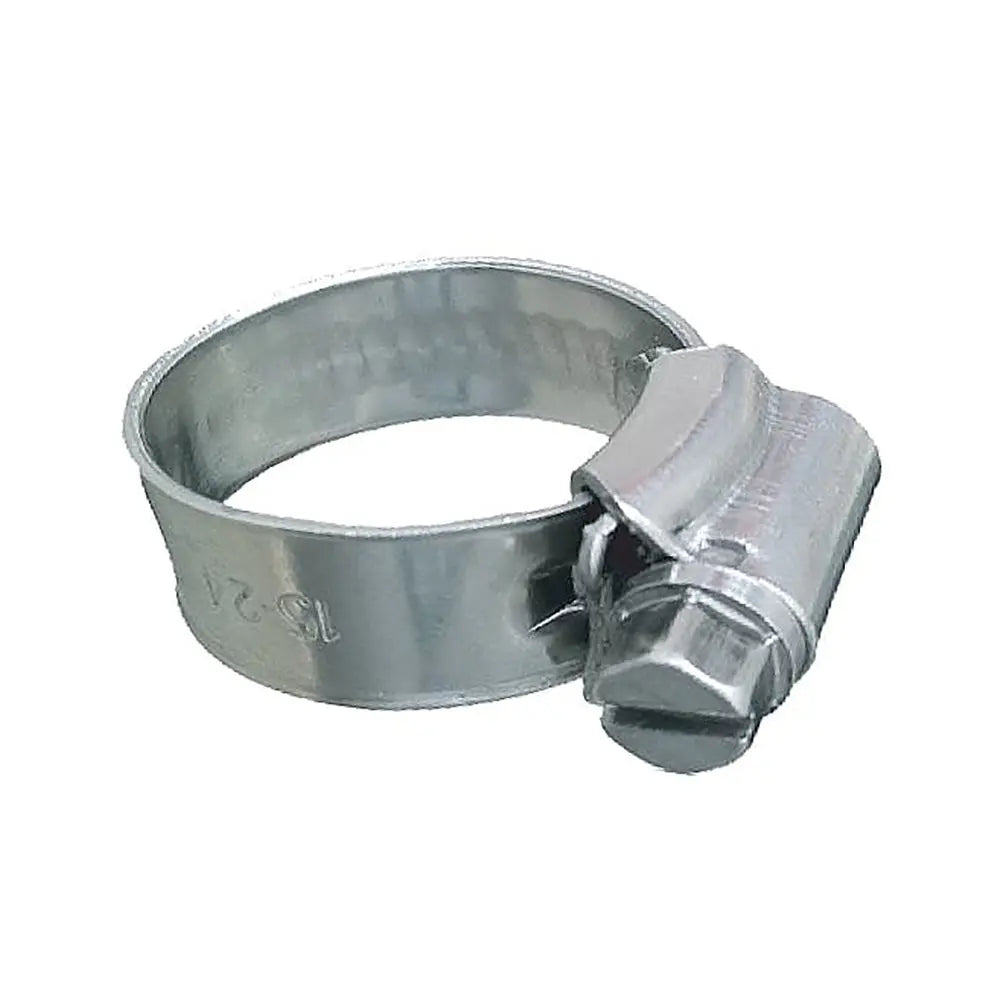

Trident Marine 316 Stainless Steel Non-Perforated Worm Gear Hose Clamp - SAE Size 10, 3/8 inch Band, 10-Pack

316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - (3/4" 1-1/8") Clamping Range - 10-Pack - SAE Size 10

Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel Compact HD NON-PERF Worm Gear Hose Clamp. The 9.7 mm (0.382) wide band is Non-Perforated and smooth on the inside with rolled edges. This eliminates hose damage with increased clamping force. The high strength, compact, one-piece 14mm (0.55) wide housing provides one of the highest clamping force ratings of any worm gear style clamp.

Features:

• The screw head is 7mm
• Long service life and safety for most general-purpose hose applications and connections

Recommendations:

• Measure hose O.D. before selecting clamp size for proper fit
• Double clamp on each hose end for critical applications

Construction:

• Band Housing: 316 Stainless Steel 9.7 mm wide band 0.8mm thick
• Screw Drive: 316 Stainless Steel 7.0 mm screw head

Specifications:

• SAE Size: 10
• Hose Inner Diameter: (inch) 1/2" 5/8"
• Clamping Range: (inch) 3/4" 1 1/8" / (mm) 19-28
• Recommended Torque Inch lbs: 25-35

The Trident Marine 316 Stainless Steel Non-Perforated Worm Gear Hose Clamp is designed for reliable and secure hose connections in marine and general-purpose applications. Crafted from high-grade AISI 316 stainless steel, this clamp offers exceptional tensile strength and corrosion resistance, making it suitable for demanding environments. Its compact design features a 3/8 inch wide band with a smooth, non-perforated interior and rolled edges, ensuring a firm grip without damaging the hose surface. The high-strength, one-piece housing measures 14mm wide and provides one of the highest clamping forces available in worm gear clamps, ensuring a tight and secure seal under pressure. The clamp accommodates hose inner diameters ranging from 1/2 inch to 5/8 inch, with a clamping range from 3/4 inch to 1 1/8 inches, making it versatile for various hose sizes. The screw head is 7mm in diameter, enabling easy adjustments and secure tightening with a torque range of 25-35 inch-lbs. This 10-pack offers excellent value for multiple applications, whether in marine, automotive, or industrial settings. For optimal performance, it is recommended to measure the hose outer diameter before selecting the clamp size and to double clamp for critical connections to ensure maximum security. Constructed entirely from corrosion-resistant stainless steel, these clamps are built for long service life and safety, providing dependable performance in harsh environments. Trusted by professionals, the Trident Marine hose clamps are a reliable choice for securing hoses in demanding conditions, offering strength, durability, and ease of installation in a compact, high-performance package.

Features:

• Band: 316 stainless steel, 9.7mm wide, 0.8mm thick, smooth interior with rolled edges

• Housing: 14mm wide, high-strength, one-piece design for increased clamping force

• Screw Head: 7mm diameter for secure tightening and adjustment

• Clamping Range: 3/4 inch to 1 1/8 inch (19-28mm)

• Recommended Torque: 25-35 inch-lbs for optimal clamping force

• Hose Compatibility: Inner diameter from 1/2 inch to 5/8 inch

• SAE Size: 10, suitable for various hose applications

• Package: 10 clamps per pack for versatile use
