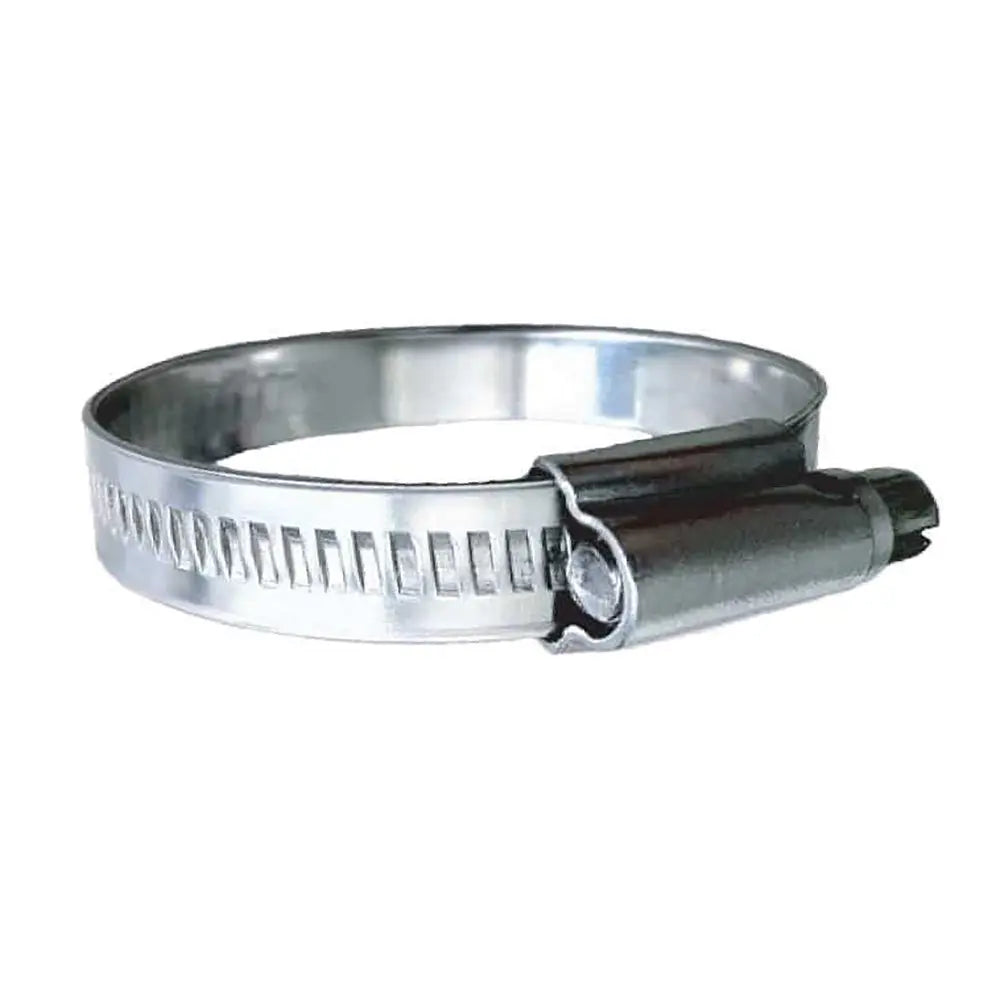

Trident Marine 316 Stainless Steel Non-Perforated Worm Gear Hose Clamp - SAE Size 16, 10-Pack

316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (1-1/16" 1-1/2") Clamping Range - 10-Pack - SAE Size 16

Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel HD NON-PERF Worm Gear Hose Clamp. The 11.7 mm (0.46) wide band is Non-Perforated and Smooth on the inside with Rolled Edges. This eliminates hose damage with increased clamping force. The High Strength, Compact, One Piece 16mm (0.63) wide Housing provides one of the highest clamping force ratings of any worm gear style clamp.

Features:

• The screw head is 7mm
• Long service life and safety for most general-purpose hose applications and connections

Recommendations:

• Measure hose O.D. before selecting clamp size for proper fit
• Double clamp on each hose end for critical applications
• Consider using our #720 Series wide band 316 SS T-Bolt Clamps for larger I.D. hoses (i.e. Exhaust Hose, etc.)

Construction:

• Band Housing: 316 Stainless Steel 11.7 mm wide band 0.9mm thick
• Screw Drive: 316 Stainless Steel 7.0 mm screw head

Specifications:

• SAE Size: 16
• Hose Inner Diameter: (inch) 7/8" 1"
• Clamping Range: (inch) 1-1/16" 1-1/2" / (mm) 26-38
• Recommended Torque Inch lbs: 35-45

The Trident Marine Part Number 710-1001 is a premium marine-grade hose clamp constructed from all AISI 316 stainless steel, ensuring high tensile strength and corrosion resistance in demanding environments. With a band width of 11.7 mm (0.46 inches), the clamp features a smooth, non-perforated inside surface with rolled edges to prevent hose damage while providing increased clamping force. Its high-strength, compact one-piece housing measures 16 mm (0.63 inches) wide, offering some of the highest clamping force ratings among worm gear style clamps. Designed for reliable performance in various marine and industrial applications, this clamp provides a secure fit for hoses with an inner diameter ranging from 7/8 inch to 1 inch, with a clamping range of 1-1/16 inches to 1-1/2 inches. The screw head size is 7 mm, allowing for easy tightening with standard tools, and the recommended torque is between 35 to 45 inch pounds to ensure proper clamping without over-tightening. The clamp's construction includes a 316 stainless steel band and housing, with a 7 mm screw drive, making it durable and resistant to harsh conditions. For critical applications, it’s advisable to measure hose outer diameter before selecting the appropriate clamp size and consider double clamping for added security. For larger diameter hoses, such as exhaust or heavy-duty applications, the #720 Series wide band T-bolt clamps from Trident Marine are recommended. This 10-pack provides a cost-effective solution for multiple connections, ensuring a tight seal and long service life in marine, industrial, and automotive settings.

Features:

• Band Width: 11.7 mm (0.46 inches) smooth, non-perforated steel band with rolled edges

• Housing: 16 mm (0.63 inches) wide, high-strength one-piece construction

• Screw Size: 7 mm for easy tightening

• Clamping Range: 1-1/16 inches to 1-1/2 inches (26-38 mm)

• Material: All AISI 316 stainless steel for corrosion resistance and durability

• Recommended Torque: 35-45 inch pounds for secure fastening

• Application: Suitable for hoses with inner diameters from 7/8 inch to 1 inch

• Includes: Pack of 10 clamps for multiple use

• Design: Smooth, rolled edges to prevent hose damage and ensure safety
