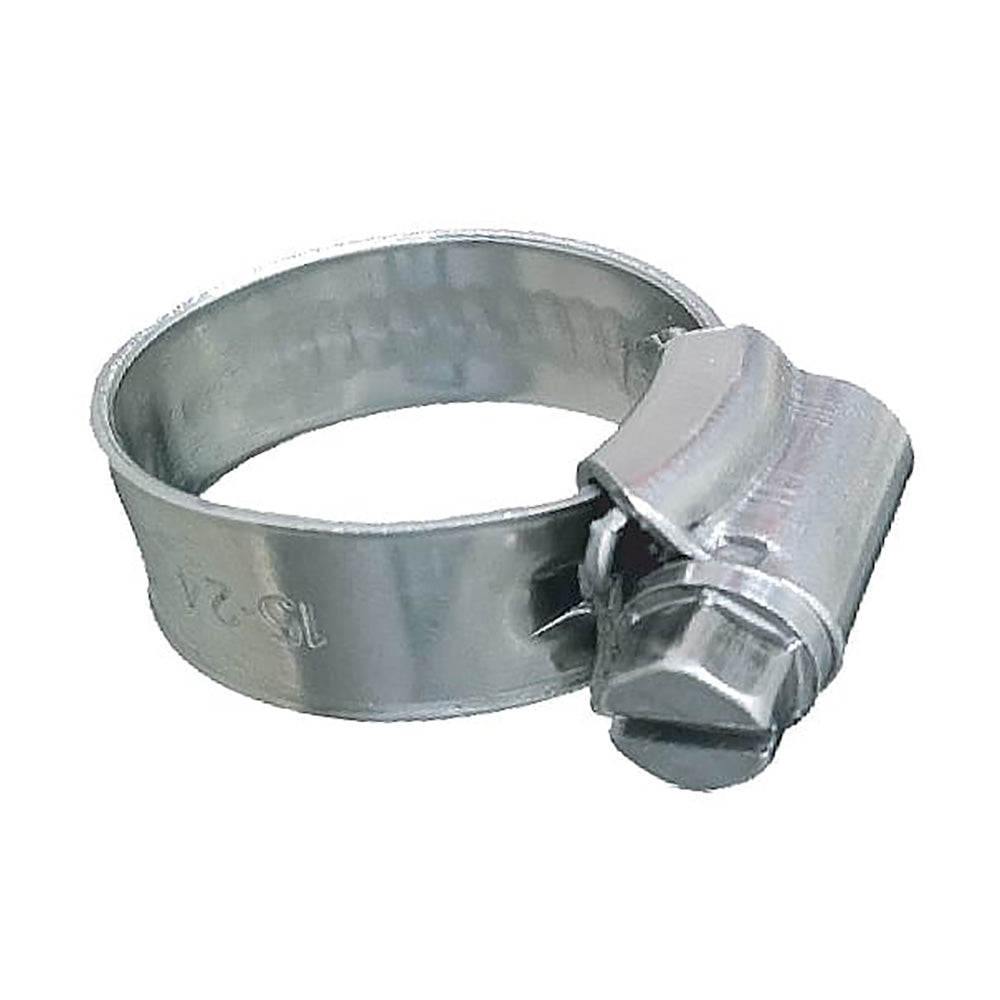

Trident Marine 316 Stainless Steel Non-Perforated Worm Gear Hose Clamp, SAE Size 3, 10-Pack

316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - (5/16" 9/16") Clamping Range - 10-Pack - SAE Size 3

Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel Compact HD NON-PERF Worm Gear Hose Clamp. The 9.7 mm (0.382) wide band is Non-Perforated and smooth on the inside with rolled edges. This eliminates hose damage with increased clamping force. The high strength, compact, one-piece 14mm (0.55) wide housing provides one of the highest clamping force ratings of any worm gear style clamp.

Features:

• The screw head is 7mm
• Long service life and safety for most general-purpose hose applications and connections

Recommendations:

• Measure hose O.D. before selecting clamp size for proper fit
• Double clamp on each hose end for critical applications

Construction:

• Band Housing: 316 Stainless Steel 9.7 mm wide band 0.8mm thick
• Screw Drive: 316 Stainless Steel 7.0 mm screw head

Specifications:

• SAE Size: 3
• Hose Inner Diameter: (inch) 3/16" 1/4"
• Clamping Range: (inch) 5/16" 9/16" / (mm) 8-14
• Recommended Torque Inch lbs: 25-35

The Trident Marine 316 Stainless Steel Non-Perforated Worm Gear Hose Clamp is designed for reliable and secure hose connections in marine and industrial applications. Crafted from all AISI 316 stainless steel, this high tensile strength clamp offers exceptional durability and corrosion resistance, making it ideal for demanding environments. The 3/8-inch wide band is smooth on the inner surface with rolled edges, ensuring a firm grip without damaging the hose. Its compact, one-piece housing measures approximately 0.55 inches wide, providing a high clamping force suitable for various hose sizes. This clamp's design emphasizes long service life and safety, making it a dependable choice for general-purpose hose connections, especially in marine settings where corrosion resistance is critical.

Features:

• Band Width: 0.382 inches (9.7 mm) with smooth, non-perforated design for gentle hose handling

• Housing: One-piece, 14 mm (0.55 inches) wide, made from high-strength 316 stainless steel

• Screw Head: 7 mm screw head for easy tightening and adjustment

• Clamping Range: 5/16 inch to 9/16 inch (8-14 mm), suitable for hoses with inner diameters from 3/16 inch to 1/4 inch

• Recommended Torque: 25-35 inch pounds for secure and consistent clamping
