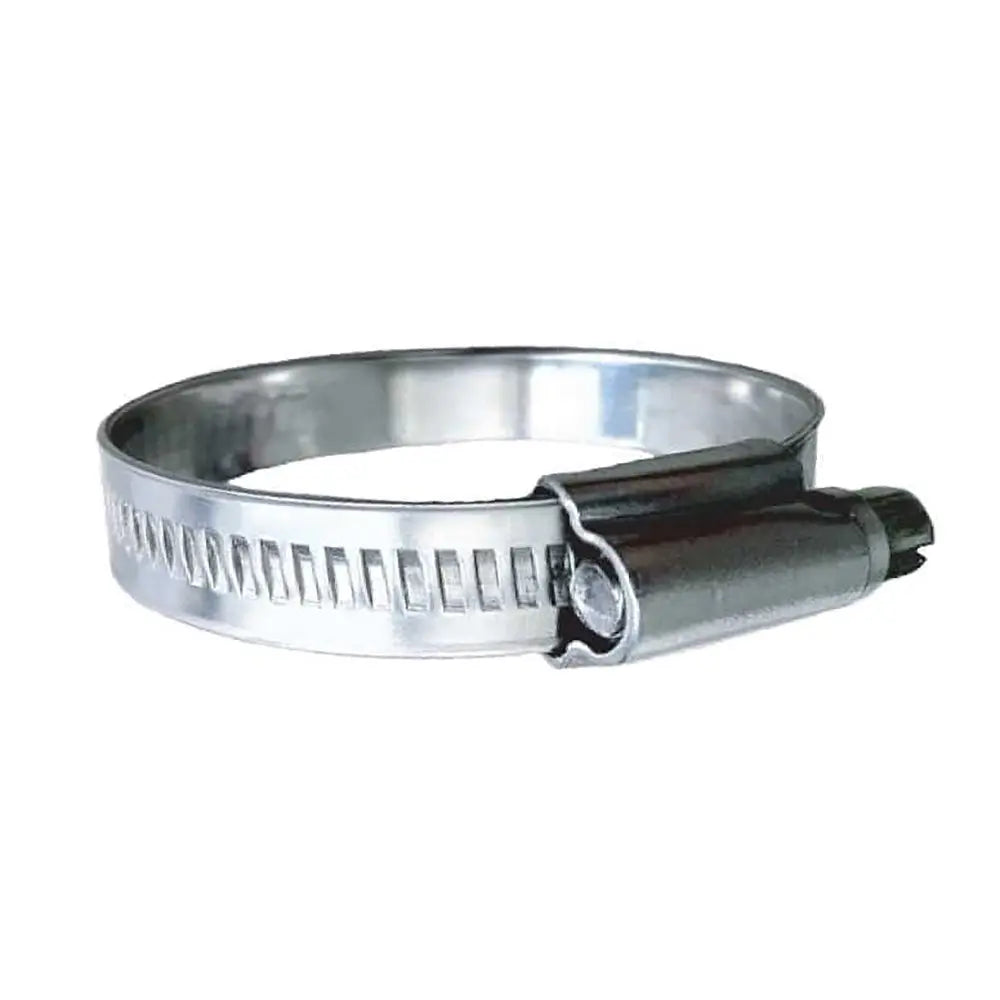

Trident Marine 316 Stainless Steel Non-Perforated Worm Gear Hose Clamp - SAE Size 32, 2 to 2-9/16 Inch Range, Pack of 10

316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (2" - 2-9/16") Clamping Range - 10-Pack - SAE Size 32

Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel HD NON-PERF Worm Gear Hose Clamp. The 11.7 mm (0.46) wide band is Non-Perforated and Smooth on the inside with Rolled Edges. This eliminates hose damage with increased clamping force. The High Strength, Compact, One Piece 16mm (0.63) wide Housing provides one of the highest clamping force ratings of any worm gear style clamp.

Features:

• The screw head is 7mm
• Long service life and safety for most general-purpose hose applications and connections

Recommendations:

• Measure hose O.D. before selecting clamp size for proper fit
• Double clamp on each hose end for critical applications
• Consider using our #720 Series wide band 316 SS T-Bolt Clamps for larger I.D. hoses (i.e. Exhaust Hose, etc.)

Construction:

• Band Housing: 316 Stainless Steel 11.7 mm wide band 0.9mm thick
• Screw Drive: 316 Stainless Steel 7.0 mm screw head

Specifications:

• SAE Size: 32
• Hose Inner Diameter: (inch) 1-3/4" - 2"
• Clamping Range: (inch) 2" - 2-9/16" / (mm) 50-65
• Recommended Torque Inch lbs: 45-60

The Trident Marine 316 Stainless Steel Non-Perforated Worm Gear Hose Clamp offers exceptional durability and corrosion resistance, making it ideal for marine and industrial applications. Constructed entirely from high-quality AISI 316 stainless steel, this clamp features a 0.46-inch wide band with smooth, non-perforated inner surface and rolled edges to prevent hose damage during installation and use. Its robust design includes a compact, one-piece 0.63-inch wide housing, providing one of the highest clamping force ratings available in worm gear style clamps, ensuring a secure fit for hoses with an inner diameter ranging from 2 to 2-9/16 inches. The screw head measures 7mm in diameter, allowing for easy tightening with standard tools, while the high tensile strength stainless steel construction guarantees long service life and dependable performance in demanding environments.
This clamp is suitable for most general-purpose hose connections, especially in marine, automotive, and industrial settings where corrosion resistance is critical. Proper installation involves measuring the hose outer diameter before selecting the clamp size, with recommendations to double clamp for critical applications to maximize security. For larger hoses such as exhaust or heavy-duty hoses, consider using the Trident Marine #720 Series wide band T-bolt clamps. The clamp's specifications include a clamping range of 2 to 2-9/16 inches, with a recommended torque of 45-60 inch-pounds, ensuring optimal tightening without damaging the hose or clamp. The band housing and screw are both constructed entirely from stainless steel, providing durability and resistance to harsh conditions. This 10-pack of SAE Size 32 clamps ensures you have reliable, high-quality clamps readily available for multiple connections in your project or maintenance work.

Features:

• High tensile strength 316 stainless steel construction for corrosion resistance and durability

• Non-perforated, smooth inner band with rolled edges to prevent hose damage

• Wide 0.46-inch band for secure clamping and increased holding power

• One-piece 0.63-inch wide housing designed for high clamp force ratings

• 7mm screw head for easy tightening and adjustment
