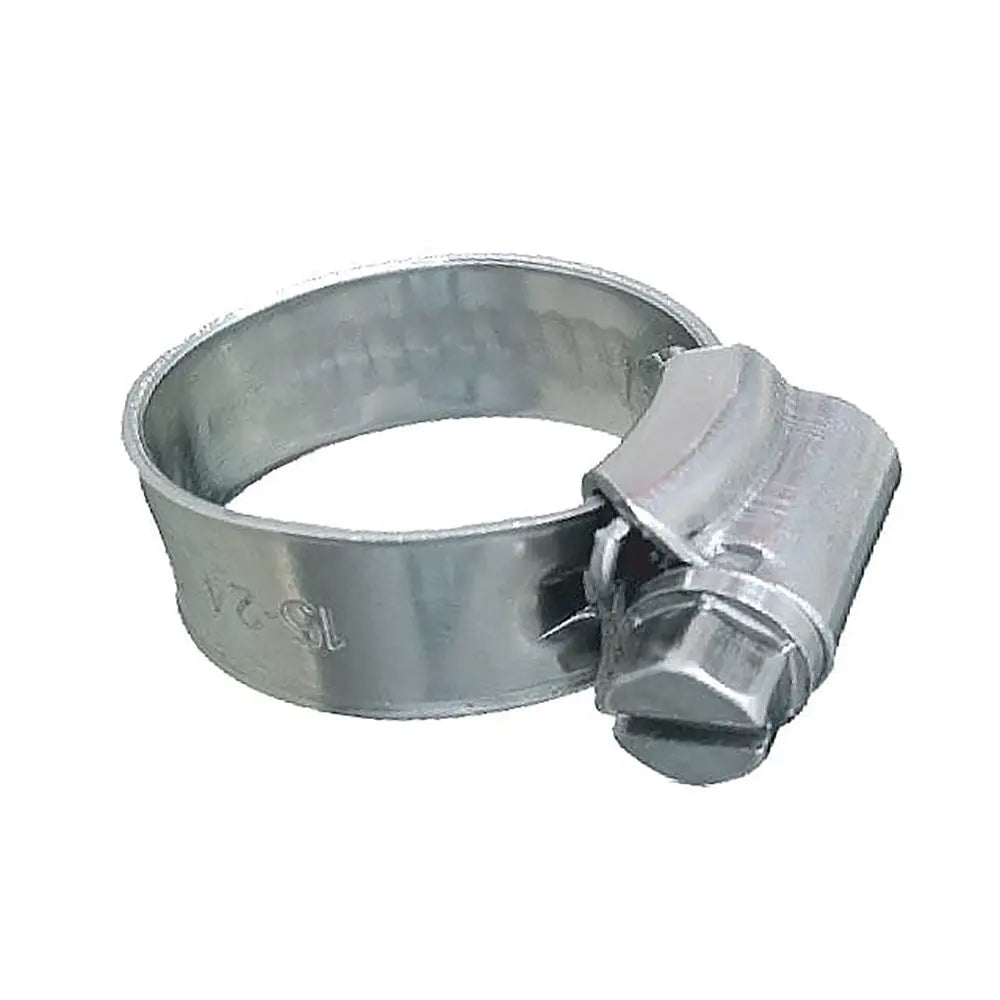

Trident Marine 316 Stainless Steel Non-Perforated Worm Gear Hose Clamp - SAE Size 6, 3/8 inch Band, 10-Pack

316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - 11/32"-25/32" Clamping Range - 10-Pack - SAE Size 6

Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel Compact HD NON-PERF Worm Gear Hose Clamp. The 9.7 mm (0.382) wide band is Non-Perforated and smooth on the inside with rolled edges. This eliminates hose damage with increased clamping force. The high strength, compact, one-piece 14mm (0.55) wide housing provides one of the highest clamping force ratings of any worm gear style clamp.

Features:

• The screw head is 7mm
• Long service life and safety for most general-purpose hose applications and connections

Recommendations:

• Measure hose O.D. before selecting clamp size for proper fit
• Double clamp on each hose end for critical applications

Construction:

• Band Housing: 316 Stainless Steel 9.7 mm wide band 0.8mm thick
• Screw Drive: 316 Stainless Steel 7.0 mm screw head

Specifications:

• SAE Size: 6
• Hose Inner Diameter: (inch) 5/16" - 3/8"
• Clamping Range: (inch) 11/32" 25/32" / (mm) 13-20
• Recommended Torque Inch lbs: 25-35

The Trident Marine 316 Stainless Steel Non-Perforated Worm Gear Hose Clamp offers a durable and reliable solution for securing hoses in marine and general-purpose applications. Constructed from high-quality AISI 316 stainless steel, this clamp provides high tensile strength and corrosion resistance suitable for demanding environments. The 3/8 inch wide band is smooth internally with rolled edges, which minimizes hose damage while ensuring a secure fit. Its compact, one-piece housing measures approximately 0.55 inches wide, delivering one of the highest clamping force ratings among worm gear style clamps. This design ensures consistent, tight connections with increased clamping force for long-lasting performance. The clamp's screw head size is 7mm, facilitating easy adjustments even in tight spaces, while its overall configuration supports a clamping range from 11/32 inch to 25/32 inch, or approximately 13 to 20 millimeters. The recommended torque for proper tightening is between 25 and 35 inch-pounds, ensuring the clamp maintains secure contact without damaging hoses. This pack includes ten clamps, making it ideal for multiple applications or spare parts. Suitable for hoses with an inner diameter of 5/16 inch to 3/8 inch, these clamps are versatile for various marine or industrial uses. Proper measurement of hose diameter prior to installation is advised, and for critical connections, double clamping is recommended to ensure optimal security. Engineered for long service life, the Trident Marine 316 SS Worm Gear Hose Clamp is an essential component for maintaining reliable hose connections in demanding environments, combining robust construction with ease of use and high performance. Whether for marine, automotive, or industrial applications, this clamp provides a dependable solution for securing hoses securely and safely.

Features:

• Material: High tensile strength AISI 316 stainless steel for corrosion resistance and durability

• Band Width: 3/8 inch (9.7 mm) wide, smooth interior with rolled edges to prevent hose damage

• Housing: Compact, one-piece design measuring approximately 0.55 inches wide for high clamping force

• Screw Head Size: 7 mm for easy adjustment in tight spaces

• Clamping Range: 11/32 inch to 25/32 inch (13-20 mm) to fit hoses with inner diameters of 5/16 inch to 3/8 inch

• Recommended Torque: 25-35 inch-pounds for secure yet safe tightening

• Pack Size: Includes 10 clamps suitable for multiple hose connections

• Application: Ideal for marine, automotive, and industrial hose securing needs

• Construction: Band housing is 0.8 mm thick stainless steel, screw drive also stainless steel for longevity

• Design: Non-perforated, smooth band minimizes hose damage while providing strong clamping force
